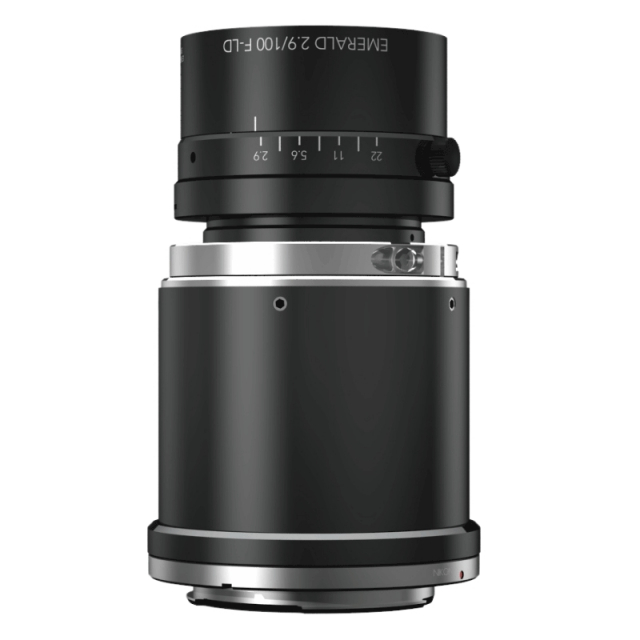

Schneider Optics, 21-1070506, Emerald 2.8/100mm Long Distance F-Mount Large Format Lens

Features:

F-Mount
43.2 mm image circle
Optimized for short working distances
400-1000 nm broadband AR-coating

Applications:

Machine Vision
AOI (Automated Optical Inspection)
Web inspection
Factory automation

This F-Mount lens is designed for large sensors up to 43.2 mm diagonal/length. It is optimized for a working distance range from 2.0 m to infinity. The robust mechanics and a special focus setting and locking mechanism ensures highest mechanical stability even in harsh enviornment.

Dimensions:

For more information, please see Data Sheet

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Type	F-LD
Interface	F-Mount
Focal Length [mm]	100
F/# Range	F/2.9 - F/22
Numerical Aperture [Object \| Image]	- \| 0.17
Maximum Sensor Size [mm]	43.2
Maximum Angle of View [°]	24
Recommendation Magnification Range	-0.05 - 0
Recommendation Working Distance Range [mm]	2062 - ∞
Minimum Working Distance without Extension Tubes [mm]	450
Filter Thread [mm]	M43 x 0.75
Storage Temperature [°C]	-25 - +70
Net Weight [Standard] [g]	442
F'Eff [mm]	100.93
SF [mm]	-46.36
S'F' [mm]	78.74
HH' [mm]	-17.32
ß'P	1.32
SEP [mm]	30.23
S'AP [mm]	-54.26
Σd [mm]	59.43

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Type	F-LD
Interface	F-Mount
Focal Length [mm]	100
F/# Range	F/2.9 - F/22
Numerical Aperture [Object \| Image]	- \| 0.17
Maximum Sensor Size [mm]	43.2
Maximum Angle of View [°]	24
Recommendation Magnification Range	-0.05 - 0
Recommendation Working Distance Range [mm]	2062 - ∞
Minimum Working Distance without Extension Tubes [mm]	450
Filter Thread [mm]	M43 x 0.75
Storage Temperature [°C]	-25 - +70
Net Weight [Standard] [g]	442
F'Eff [mm]	100.93
SF [mm]	-46.36
S'F' [mm]	78.74
HH' [mm]	-17.32
ß'P	1.32
SEP [mm]	30.23
S'AP [mm]	-54.26
Σd [mm]	59.43
