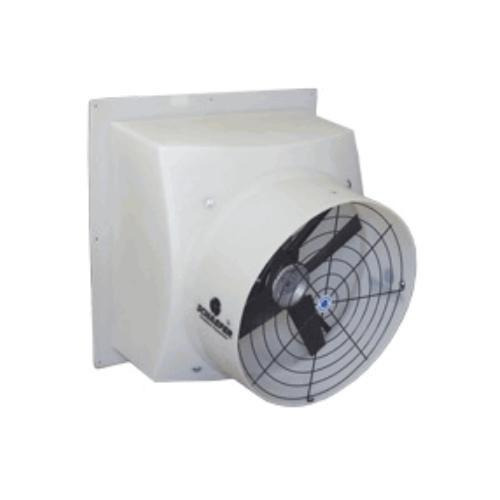

Buy Schaefer PFM126P13, 12" Direct Drive Poly Exhaust Fan, Poly Shutter - Prime Buy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Polyethylene construction for corrosion resistant and effortless cleaning
Energy efficient, maintenance free motor for both time and money savings
Direct drive
Motor and blade combination designed for best-in-class performance
Designed to be flush mounted with interior walls up to 10" thick for use in a broad range of facilities
Ships fully assembled for ease of installation

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Able to Ship Small Parcel	Yes
BESS Lab Performance Test No.	96221
Blade Color	Black
Blade Material	Polyethylene
CFM ( at0.05")	1540
CFM Range (Free Air)	1001 - 2500
CFM/Watt ( at0.05")	7.3
Component Certifications	Motor - UL/CSA
Diameter (inches)	12
Distinguishing Feature - Fan	Highly Corrosion Resistant
Drive Type	Direct
Fixed or Portable	Fixed
Frequency (Hz)	60
Guard Color	Black
Guard Material & Coating	Powder Coated Steel
Guard Spacing (inches)	1/2 OSHA
Housing Color	White
Housing Material	Polyethylene
Nameplate Amps	3.8/1.9
Number of Wings	6
Oscillating	No
Phase	1
Power (hp)	1/3
Product Color	White
Product Weight (pounds)	31
Rough-in Dimensions	15-3/4" x 16-3/4"
Sound Level (dBA at 10')	63.3
Speed Control Compatible	Yes
Speeds	1
VFD Compatible	No
Voltage	115/230

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Able to Ship Small Parcel	Yes
BESS Lab Performance Test No.	96221
Blade Color	Black
Blade Material	Polyethylene
CFM ( at0.05")	1540
CFM Range (Free Air)	1001 - 2500
CFM/Watt ( at0.05")	7.3
Component Certifications	Motor - UL/CSA
Diameter (inches)	12
Distinguishing Feature - Fan	Highly Corrosion Resistant
Drive Type	Direct
Fixed or Portable	Fixed
Frequency (Hz)	60
Guard Color	Black
Guard Material & Coating	Powder Coated Steel
Guard Spacing (inches)	1/2 OSHA
Housing Color	White
Housing Material	Polyethylene
Nameplate Amps	3.8/1.9
Number of Wings	6
Oscillating	No
Phase	1
Power (hp)	1/3
Product Color	White
Product Weight (pounds)	31
Rough-in Dimensions	15-3/4" x 16-3/4"
Sound Level (dBA at 10')	63.3
Speed Control Compatible	Yes
Speeds	1
VFD Compatible	No
Voltage	115/230

Note: Please read description carefully. Do not base your order on the picture presented.
