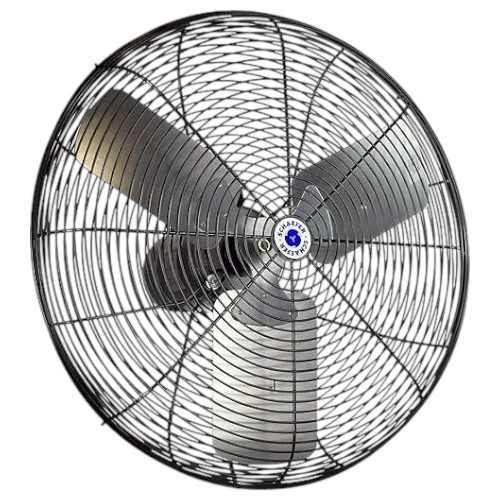

Schaefer 30CFO-B 30" Circulation Fan, Black OSHA Guards

Color: Black
  • Brand Schaefer
  • Part # 30CFO-B
  • Condition
    Brand New
Schaefer, 30CFO-B
Additional image #1 for Schaefer 30CFO-B
Additional image #2 for Schaefer 30CFO-B

Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Color:
Color: Black

Features:

  • Matched direct drive motors and blades for the highest achievable levels of airflow, rated up to 12,000 cfm
  • Powder-coated steel guards for corrosion resistance and durability
  • Energy-efficiently designed for additional cost savings, draws as little as 1.6 amps

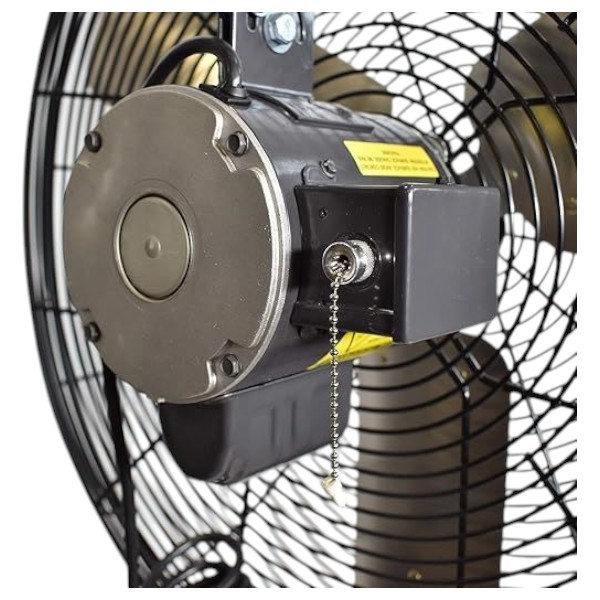

  • Thermally protected, heavy-duty, maintenance-free, 2-speed motors for long life
  • Made in the USA

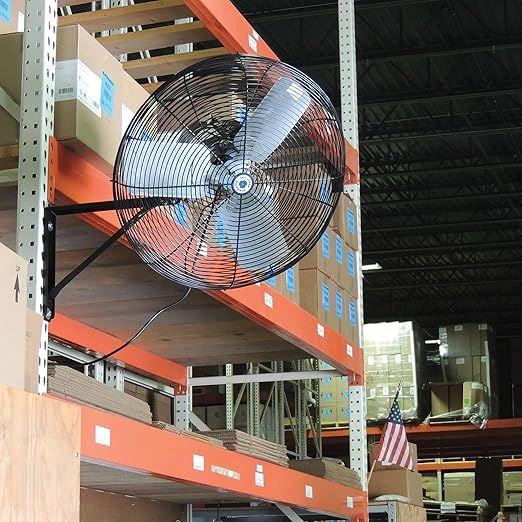

Schaefer OSHA-compliant circulation fans meet all OSHA safety regulations while delivering maximum airflow. These 2-speed fans have the versatility to be mounted on a ceiling, wall, pedestal or cart, which makes them the ideal cooling solution for any commercial, industrial or agricultural facility.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Blade ColorMetallic
BrandSchaefer
Rpm 60 Hz Motor1000-1200
DriveDirect
EnclosureTEAO
Frame Size48YZ
Phase1
Speeds2
Vfd CompatibleNo
Cfm/watt (free Air)20.8
CordIncluded - Wired
Diameter (inches)30
Frequency (hz)60
Guard ColorBlack
Nameplate Amps5.2
Number Of Wings3
Power (hp)1/2
Product Dimensions (l X W X H Inches)33.5 x 33.5 x 13.5
Product Net Weight (lbs)45
Performance Test #248
SwitchOn product
Voltage115
Maximum Rpm1075
Blade MaterialAluminum
Cfm (high)9420
Cfm Calculation StandardANSI/AMCA Standard 230-99
Product ColorWhite
Product Shipping Dimensions (in)34 x 34 x 14
Speed Control Compatible?No
Able To Ship Small ParcelYes
Cfm (low)7000
Cfm Range (free Air)5001 - 10000
Cord Length (feet)10
Fixed Or PortableFixed
Guard MaterialPowder Coated Steel
Mount Type RecommendedWMTA30-B, VS30FMT
OscillatingNo
Country Of OriginUS
Guard Spacing (inches)1/2 OSHA
Cfm/watt ( at 0.10")TBD
Cfm/watt ( at 0.05")TBD
Product Details
Blade ColorMetallic
BrandSchaefer
Rpm 60 Hz Motor1000-1200
DriveDirect
EnclosureTEAO
Frame Size48YZ
Phase1
Speeds2
Vfd CompatibleNo
Cfm/watt (free Air)20.8
CordIncluded - Wired
Diameter (inches)30
Frequency (hz)60
Guard ColorBlack
Nameplate Amps5.2
Number Of Wings3
Power (hp)1/2
Product Dimensions (l X W X H Inches)33.5 x 33.5 x 13.5
Product Net Weight (lbs)45
Performance Test #248
SwitchOn product
Voltage115
Maximum Rpm1075
Blade MaterialAluminum
Cfm (high)9420
Cfm Calculation StandardANSI/AMCA Standard 230-99
Product ColorWhite
Product Shipping Dimensions (in)34 x 34 x 14
Speed Control Compatible?No
Able To Ship Small ParcelYes
Cfm (low)7000
Cfm Range (free Air)5001 - 10000
Cord Length (feet)10
Fixed Or PortableFixed
Guard MaterialPowder Coated Steel
Mount Type RecommendedWMTA30-B, VS30FMT
OscillatingNo
Country Of OriginUS
Guard Spacing (inches)1/2 OSHA
Cfm/watt ( at 0.10")TBD
Cfm/watt ( at 0.05")TBD
Note

Note: Please read description carefully. Do not base your order on the picture presented.
