Buy Planar Systems 997-8286-00, Helium PCT2235 22" Touch Screen Monitor

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

997-8286-00 Includes Only:

PCT2235 22" Wide Multi-Touch Monitor,
Power Cord,
VGA Cable,
DisplayPort Cable,
USB Cable (A to B),
Audio-in Cable,
User's Guide

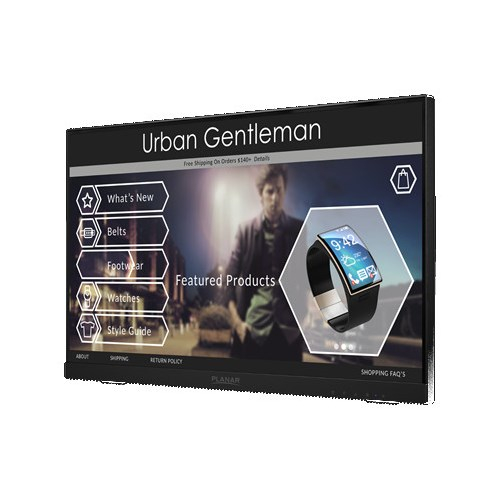

The Planar Helium PCT2235 is a 22" Full HD resolution (1920x1080) LCD touch screen monitor with 10-point simultaneous multi-touch capability, integrated speakers, and Helium desk stand.

Features:

22" touch screen monitor with 1920 x 1080 resolution
10-point multi-touch interactivity
Windows 10 ready - no driver loading required
Unique, easy-to-use Helium Desk Stand
DisplayPort, HDMI and VGA inputs

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Viewable Size	21.5" diagonal (18.77" horizontal x 10.56" vertical)
Touchscreen Type	Multi-Touch Projected Capacitive (up to 10 touch points)
Number of Touch Points	10
Touchscreen Interface	USB
Contrast Ratio (typ)	1000:1
Viewing Angle (typ)	178° H,V
Response Time (typ)	14 ms
Brightness (w/touchscreen)	212 cd/m²
Brightness (w/o touchscreen)	250 cd/m²
Display Type	Edge-Lit LED LCD
Display Resolution	1920 x 1080, full HD
Aspect Ratio	16:9
Tilt Range	+15° to +70° and flat
Palette	16.7 million colors
Pixel Pitch	0.24825 mm
Refresh Rate	55 to 75 Hz (60 Hz recommended)
Panel Depth	1.9" (47.8 mm)
Dimensions (W x H x D)	19.3" x 11.8" x 1.9" (490.3 mm x 299.4 mm x 47.8 mm)
Dimensions without Stand	Not applicable. Integrated stand folds into the monitor.
Display Weight	7.9 lb (3.6 kg)
Display Weight (w/o stand)	Not applicable. Integrated stand folds into the monitor.
Shipping weight	10.1 lb (4.6 kg)
Video Inputs	Analog, HDMI, DisplayPort
HDCP	Yes
Audio Output	2 speakers, 2W/ch
Compatibility	Windows 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen operation
External Connections	VGA 15-pin, HDMI 19-pin, DisplayPort 20-pin, 3.5 mm audio in, USB (A to B), AC power-in
Power Supply	Internal Power Supply (AC power)
Power Requirements	100-240 VAC, 50/60 Hz
Power Consumption (typ)	27W (<0.5W standby, off)
Operating Temperature	0 to 40°C
Humidity	10 - 90% RH (non-condensing)
Mount	Built-in 100 mm VESA, back
Recommended Usage	Up to 16 hours per day
Blue Light Reduction	Yes
Product Approvals	UL/c-UL, FCC-Class B, CE, RoHS II
CI-Black-PN	997-8286-00

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Viewable Size	21.5" diagonal (18.77" horizontal x 10.56" vertical)
Touchscreen Type	Multi-Touch Projected Capacitive (up to 10 touch points)
Number of Touch Points	10
Touchscreen Interface	USB
Contrast Ratio (typ)	1000:1
Viewing Angle (typ)	178° H,V
Response Time (typ)	14 ms
Brightness (w/touchscreen)	212 cd/m²
Brightness (w/o touchscreen)	250 cd/m²
Display Type	Edge-Lit LED LCD
Display Resolution	1920 x 1080, full HD
Aspect Ratio	16:9
Tilt Range	+15° to +70° and flat
Palette	16.7 million colors
Pixel Pitch	0.24825 mm
Refresh Rate	55 to 75 Hz (60 Hz recommended)
Panel Depth	1.9" (47.8 mm)
Dimensions (W x H x D)	19.3" x 11.8" x 1.9" (490.3 mm x 299.4 mm x 47.8 mm)
Dimensions without Stand	Not applicable. Integrated stand folds into the monitor.
Display Weight	7.9 lb (3.6 kg)
Display Weight (w/o stand)	Not applicable. Integrated stand folds into the monitor.
Shipping weight	10.1 lb (4.6 kg)
Video Inputs	Analog, HDMI, DisplayPort
HDCP	Yes
Audio Output	2 speakers, 2W/ch
Compatibility	Windows 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen operation
External Connections	VGA 15-pin, HDMI 19-pin, DisplayPort 20-pin, 3.5 mm audio in, USB (A to B), AC power-in
Power Supply	Internal Power Supply (AC power)
Power Requirements	100-240 VAC, 50/60 Hz
Power Consumption (typ)	27W (<0.5W standby, off)
Operating Temperature	0 to 40°C
Humidity	10 - 90% RH (non-condensing)
Mount	Built-in 100 mm VESA, back
Recommended Usage	Up to 16 hours per day
Blue Light Reduction	Yes
Product Approvals	UL/c-UL, FCC-Class B, CE, RoHS II
CI-Black-PN	997-8286-00
