Peplink, ANT-MAX, 7-in-1 Cellular & Wi-Fi Antenna System and GPS Receiver

ANT-MAX Includes Only:

1x Antenna MAX
Double sided 3M adhesive pad
3x Cable Gland
1x L-Mount Set
2x Hole Plug

description

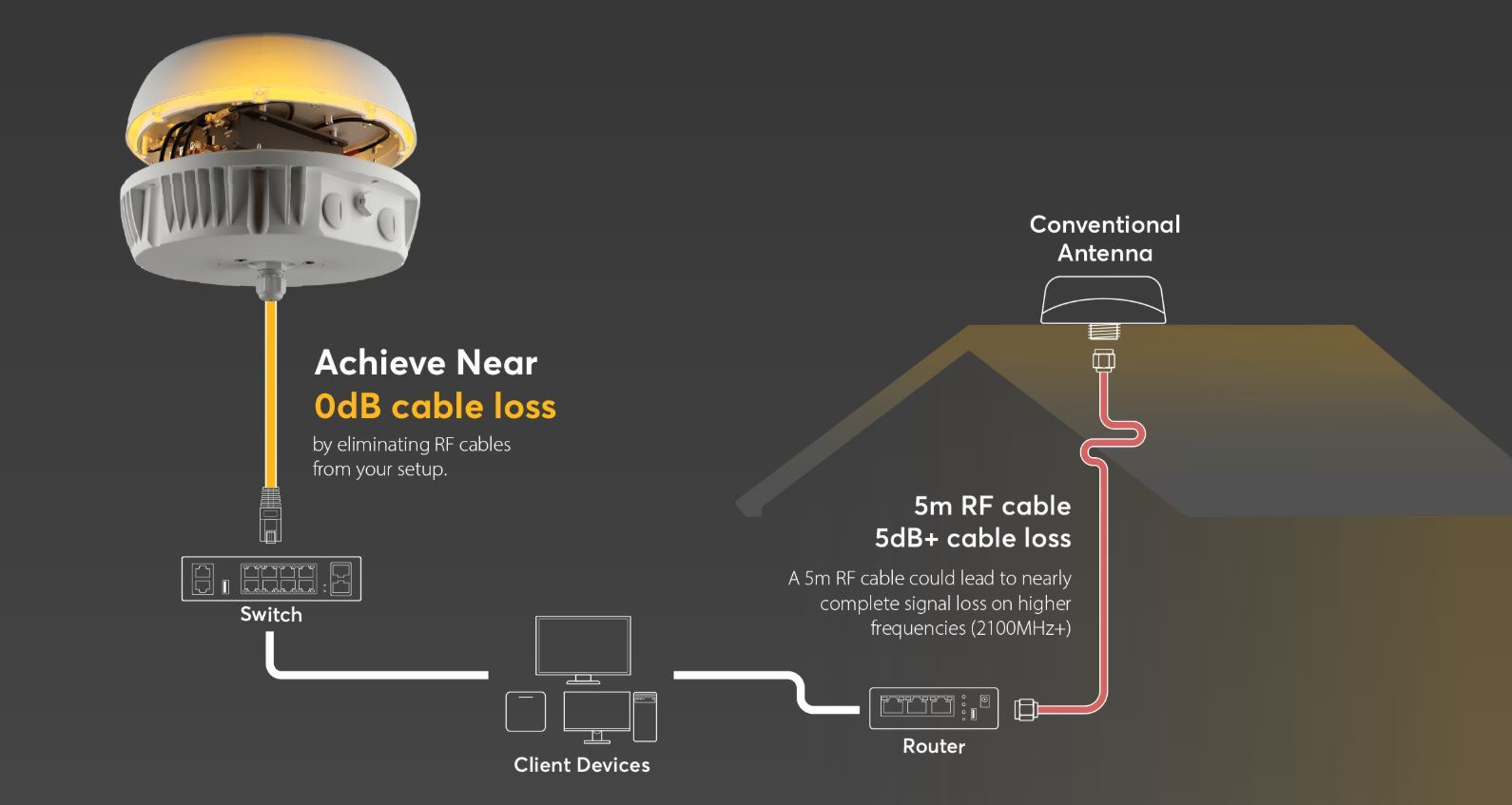

Minimize cable loss by installing your router directly into the antenna enclosure. Retain maximum signal gain by connecting the Antenna MAX to the rest of your network with an ethernet cable.UV-resistant plastic enclosure resists moisture, water intrusion, salt spray and corrosion. Antenna MAX is a cost-effective way to get maximum performance from your cellular and 5G routers in outdoor environments. Mix-and-match antenna with many routers including:

BR1 Mini Series
Transit Duo Pro^
BR1 Pro 5G / CAT-20^
POTS Adapter^ & AP One Rugged

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Cellular

Antenna Elements

4 elements

Peak Gain & Frequencies

3.0 dBi: 617-960 MHz
6.2 dBi: 1410-2700 MHz
5.7 dBi: 3400-4000 MHz
6.6 dBi: 5000-6000 MHz

VSWR

< 2.5 over 95% of the band

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

Connectors

Right angle SMA male

Wi-Fi

Antenna Elements

2 elements

Peak Gain & Frequencies

5.4 dBi: 2400-2500 MHz
7.4 dBi: 5000-6000 MHz

VSWR

< 2.5

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

Connectors

Right angle RP-SMA male

GPS

Frequency Range

1575-1602 MHz

Peak Gain

0.9 dBi @1575 MHz
0.8 dBi @1602 MHz

VSWR

< 2.0

Gain: LNA

27 ±3 dB

Noise Figure

2.5 dB

Operating Voltage

3.3 V

Power Consumption

10 ±3.0 mA

Connectors

Right angle SMA male

Mounting

Supported Types

Surface
Wall
Pole

Mechanical

Product Dimensions

4.72' / 120 mm (Height), 9.84' / 250 mm (Diameter)

Packaged Dimensions

13.82' × 11.61' × 5.75' / 351×295×146 mm

Enclosure Material

UV stable PC

Environmental, Compliance

IP Rating

IP67

Operating Temperature

−40° to 176°F / −40° to 80°C

Storage Temperature

−40° to 176°F / −40° to 80°C

Compliance

ROHS
REACH
WEEE

Enclosure Flammability

UL 94 V-0 (1.47 mm)

UV Resistance

UL 746C (f1 long-term UV exposure)

Salt Spray

MIL-STD 810F / ASTM B117

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Cellular

Antenna Elements

4 elements

Peak Gain & Frequencies

3.0 dBi: 617-960 MHz
6.2 dBi: 1410-2700 MHz
5.7 dBi: 3400-4000 MHz
6.6 dBi: 5000-6000 MHz

VSWR

< 2.5 over 95% of the band

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

Connectors

Right angle SMA male

Wi-Fi

Antenna Elements

2 elements

Peak Gain & Frequencies

5.4 dBi: 2400-2500 MHz
7.4 dBi: 5000-6000 MHz

VSWR

< 2.5

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

Connectors

Right angle RP-SMA male

GPS

Frequency Range

1575-1602 MHz

Peak Gain

0.9 dBi @1575 MHz
0.8 dBi @1602 MHz

VSWR

< 2.0

Gain: LNA

27 ±3 dB

Noise Figure

2.5 dB

Operating Voltage

3.3 V

Power Consumption

10 ±3.0 mA

Connectors

Right angle SMA male

Mounting

Supported Types

Surface
Wall
Pole

Mechanical

Product Dimensions

4.72' / 120 mm (Height), 9.84' / 250 mm (Diameter)

Packaged Dimensions

13.82' × 11.61' × 5.75' / 351×295×146 mm

Enclosure Material

UV stable PC

Environmental, Compliance

IP Rating

IP67

Operating Temperature

−40° to 176°F / −40° to 80°C

Storage Temperature

−40° to 176°F / −40° to 80°C

Compliance

ROHS
REACH
WEEE

Enclosure Flammability

UL 94 V-0 (1.47 mm)

UV Resistance

UL 746C (f1 long-term UV exposure)

Salt Spray

MIL-STD 810F / ASTM B117

Note

Note: Please read description carefully. Do not base your order on the picture presented.
