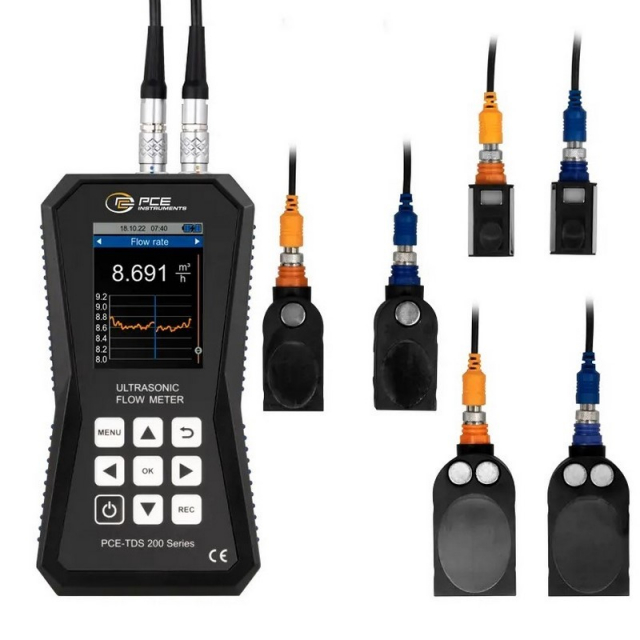

PCE Instruments, PCE-TDS 200+ SML-ICA, Clamp-on Ultrasonic Flow Meter incl. ISO-Calibration Certificate
PCE-TDS 200+ SML-ICA Includes Only:
- 1 x Clamp-on Ultrasonic Flow Meter PCE-TDS+ 200 SML-ICA
- 1 x Flow sensors PCE-TDS 200 S SENSOR (pair)
- 1 x Flow sensors PCE-TDS 200 M SENSOR (pair)
- 1 x Flow sensors PCE-TDS 200 L SENSOR (pair)

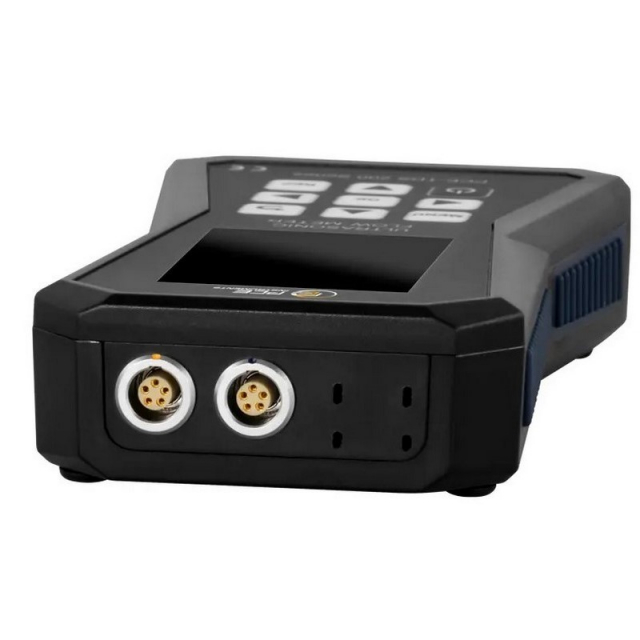

- 2 x 5 m Connection cable
- 2 x Detachable cable ties
- 1 x Power supply unit
- 1 x USB-C cable
- 1 x Ultrasonic contact gel
- 1 x PCE measuring tape

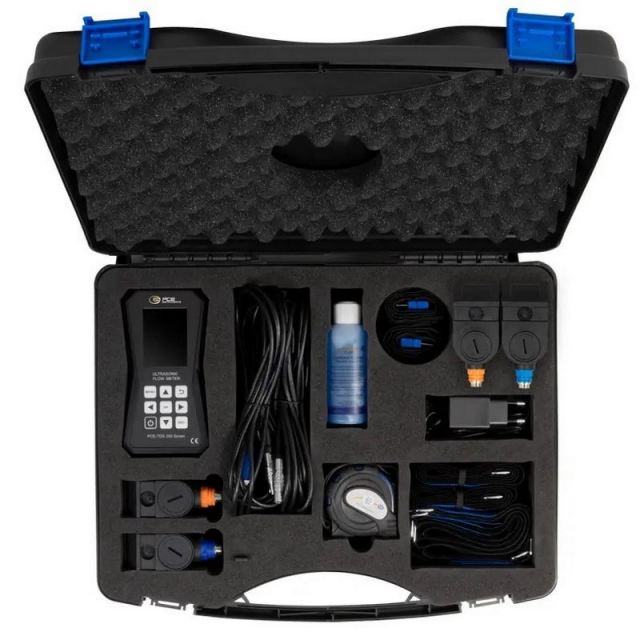

- 1 x Plastic case
- 1 x Instruction manual
- 1 x ISO-Calibration Certificate
Features:
- Measuring range ±32 m/s

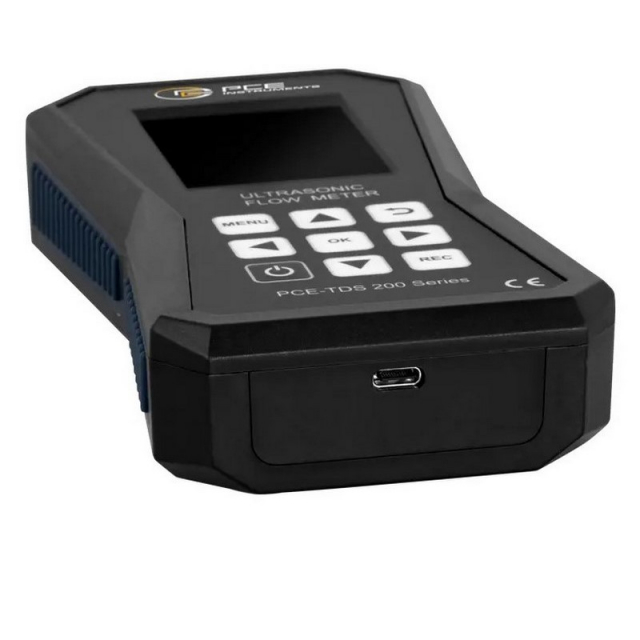

- USB-C interface for data transfer
- Optional software for analysing the measured values
- Reproducibility ±0.5 % of measured value
- Heat quantity measurement
- Data memory for 10 million measuring points
- Individually adjustable alarm limits
Ultrasonic flowmeter with 32 GB data memory / measuring range ±32 m/s /reproducibility ±0.5 % of measured value / different measuring probes / alarm limit values /2.8 " LC display / for all media
The ultrasonic flowmeter has a measuring range of ±32 m/s. With an accuracy of ±1.5 % f.s. for a pipe diameter of DN ≥50, ±3.5 % f.s. for a pipe diameter of DN <50 and a reproducibility of ±0.5 % f.s., the Clamp-on Ultrasonic Flow Meter is a particularly precise measuring device. An installation aid is available for installing the sensors of the Clamp-on Ultrasonic Flow Meter. The installation aid graphically displays the signal quality of the Clamp-on Ultrasonic Flow Meter. In addition, it is graphically displayed whether the sensors of the Clamp-on Ultrasonic Flow Meter are positioned at the correct distance from each other. To carry out flow measurements with the Clamp-on Ultrasonic Flow Meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications. The Clamp-on Ultrasonic Flow Meter displays the measured values in a wide range of units. For example: m³, l, gal, igl, mgl, cf, bal, ib and ob.
During a measurement, it is possible to record the measured values via the data logger function of the Clamp-on Ultrasonic Flow Meter. Start and stop conditions and the storage interval can be set from 1 second to 12 hours for the Clamp-on Ultrasonic Flow Meter. A memory point of the Clamp-on Ultrasonic Flow Meter contains all measured values once. The measured values are stored on the 32 GB built-in memory of the Clamp-on Ultrasonic Flow Meter. 10 million measuring points can be stored on the Clamp-on Ultrasonic Flow Meter.
With the optional software, the recorded measured values can be read out from the Clamp-on Ultrasonic Flow Meter. For analysis, the measured values from the Clamp-on Ultrasonic Flow Meter can be displayed in tabular and graphic form. For further processing of the measured values from the Clamp-on Ultrasonic Flow Meter, they can be exported in .csv file format. Alternatively, a PDF report can be created via the software. For simplified operation, the Clamp-on Ultrasonic Flow Meter can be set via the software. A live view of the measured values from the Clamp-on Ultrasonic Flow Meter is also possible with the software.

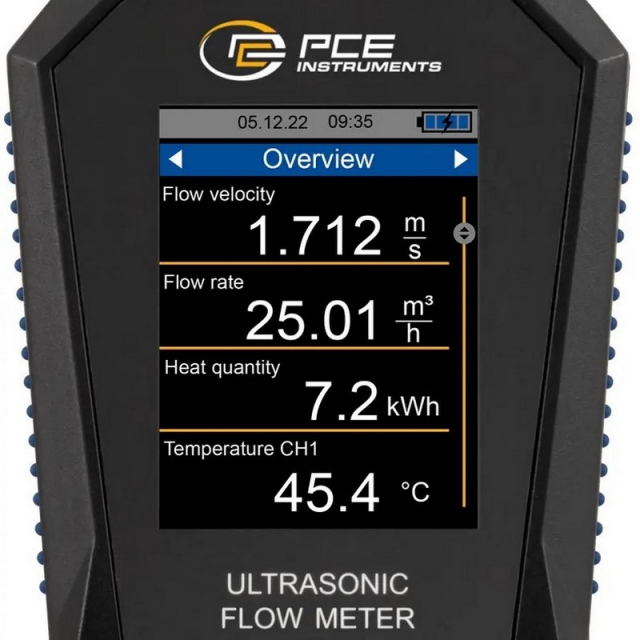

In order to determine the amount of heat with the Clamp-on Ultrasonic Flow Meter, two additional thermocouples are required. These are available with the PCE-TDS 200+. The two thermocouples of the Clamp-on Ultrasonic Flow Meter are connected to the flow and return of a pipe system. Based on the temperature difference and the measured flow rate, the Clamp-on Ultrasonic Flow Meter can determine the amount of heat. If required, the Clamp-on Ultrasonic Flow Meter can calculate and display the costs per heat quantity unit simultaneously during the measurement. Thus, the Clamp-on Ultrasonic Flow Meter is used, for example, in the inspection of heating systems.
The LC color display of the Clamp-on Ultrasonic Flow Meter has a size of 2.8" and is therefore easy to read.
PCE-TDS 200 S SENSOR
Small sensor pair for pipe diameters DN 15 - 100 / 20 - 108 mm. Suitable for particularly small pipes. The sensors have a particularly small dimension of 45 x 30 x 30 mm and a temperature resistance of -30 - 160 °C. Thanks to the magnets on the underside, the sensors can be mounted on ferrous metals. In addition, the sensors for the ultrasonic flowmeter can be connected to the pipe by means of detachable cable ties.
PCE-TDS 200 M SENSOR
Medium sensor pair for pipe diameters DN 50 - 700 / 57 - 720 mm. Suitable for flow measurement on medium-sized pipes. With the built-in magnets on the sensors for the Clamp-on Ultrasonic Flow Meter, they can be attached to ferrous pipes. Alternatively, the sensors can be mounted to the pipe with detachable cable ties. The temperature resistance is between -30 - 160 °C.

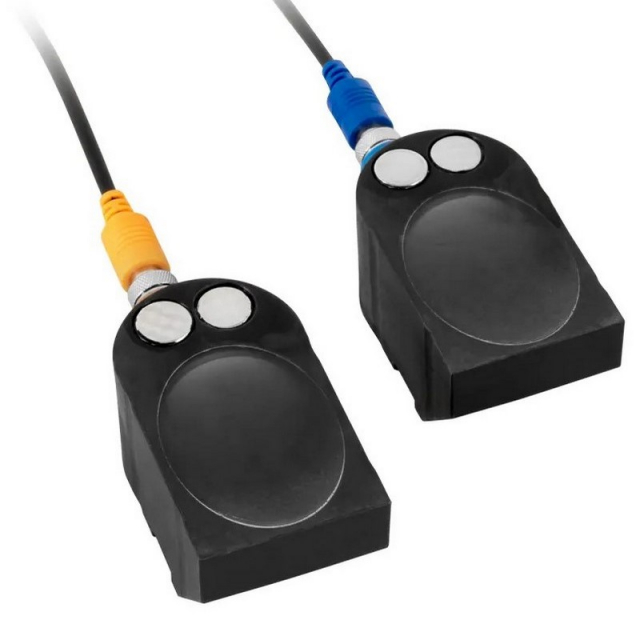

PCE-TDS 200 L SENSOR
Large sensor pair for pipe diameters DN 300 - 6000. 6000. This sensor pair is therefore suitable for particularly large pipes. The sensors can be attached to the Clamp-on Ultrasonic Flow Meter with detachable cable ties. Thanks to the built-in magnets, the sensors can be attached to pipes with ferrous metal. The sensors have a dimension of 91 x 52 x 44 mm.
For more information, please see
Manual
