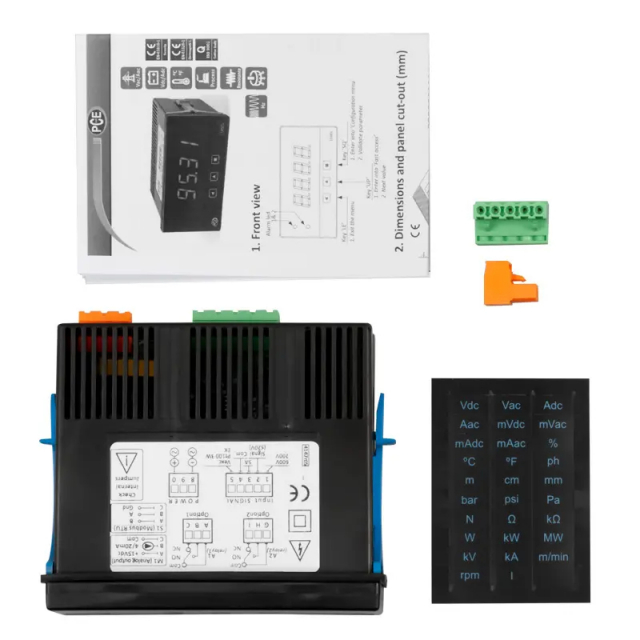

PCE-DPD-U Includes Only:
- 1 x Panel Indicator PCE-DPD-U
- 2 x Clamps
- 1 x Instruction manual
Features:
- IP 65 on the front
- Different units possible
- Digital display for industrial processes
- Optional outputs
- 4-digit digital display
- Many sensors can be connected

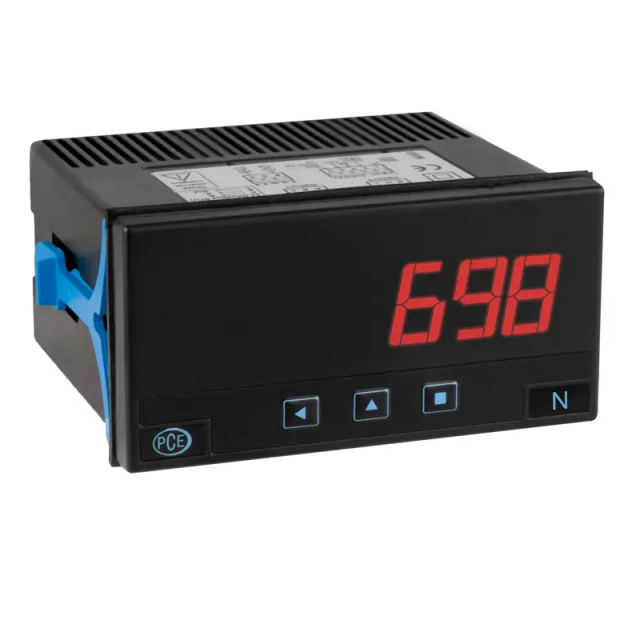

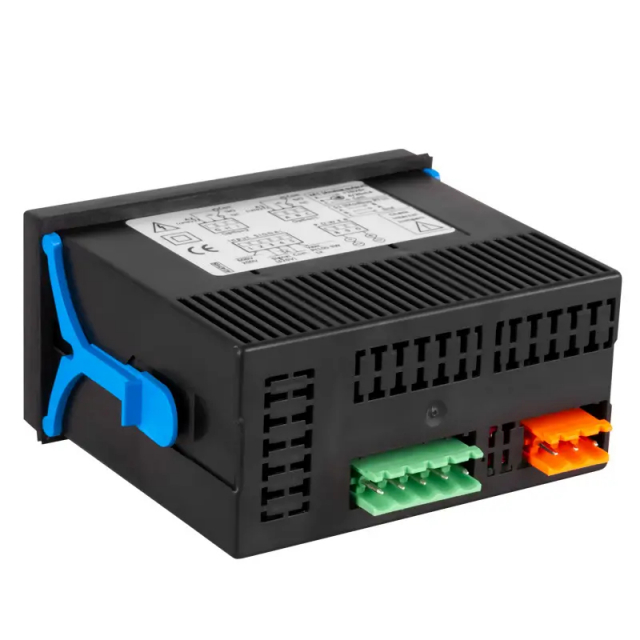

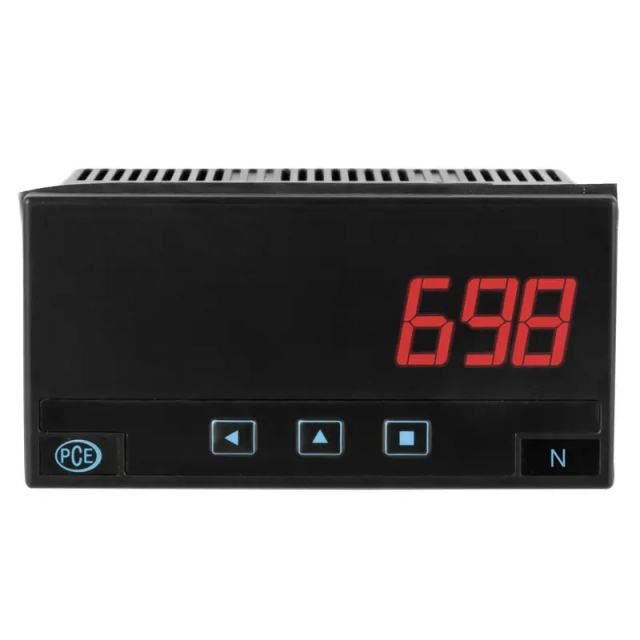

Panel Indicator PCE-DPD-U Multi-signal digital panel indicator to work as voltmeter, ammeter, process signals, temperature, resistors, potentiometers and frequencies / Modular design architecture / 4-digit LED display / Universal power supply 110 or 230V AC or 24V DC
The multi-signal digital panel indicator is configurable to work as voltmeter, ammeter, process signals (mA) with and without excitation voltage, temperature, resistors, potentiometers and frequencies. The digital panel indicator has a size of 96 x 48 mm and displays the values on a 4-digit LED display. The measurement range is 9999 to -1999 with selectable decimal point. The indicator has quick access to alarms setpoint, external contact for special functions, Eco mode of reduced consumption, 5 brightness levels.
The supply voltage of the multi-signal digital panel indicator from 18 to 265V AC / DC. Optionally the indicator can have relay output, analog output and Modbus RTU communications.
