Panduit CJ688TGVL Mini-Com RJ45 Cat 6 TG Jack Module Violet

  • Brand Panduit
  • Part # CJ688TGVL
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

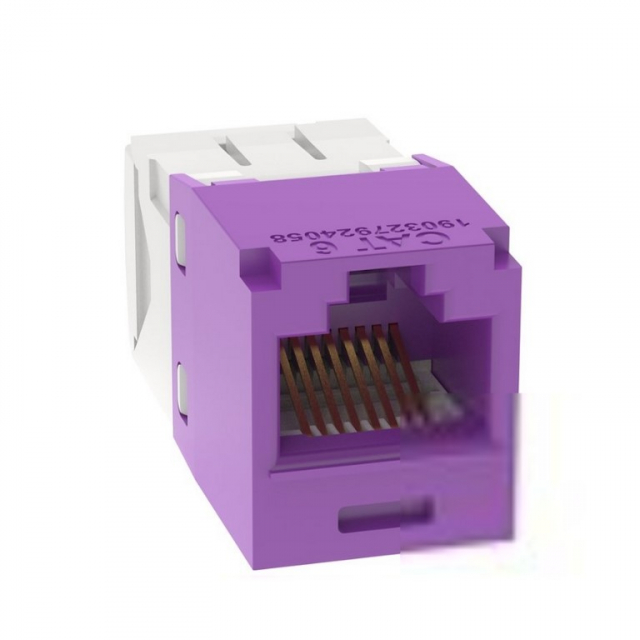

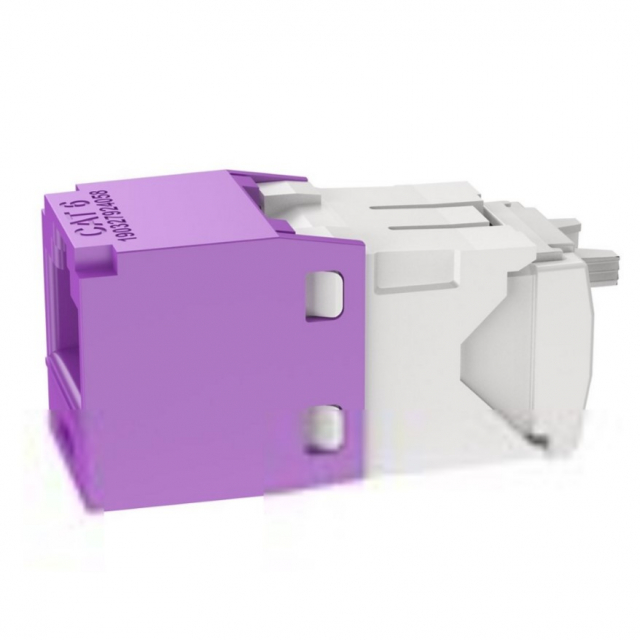

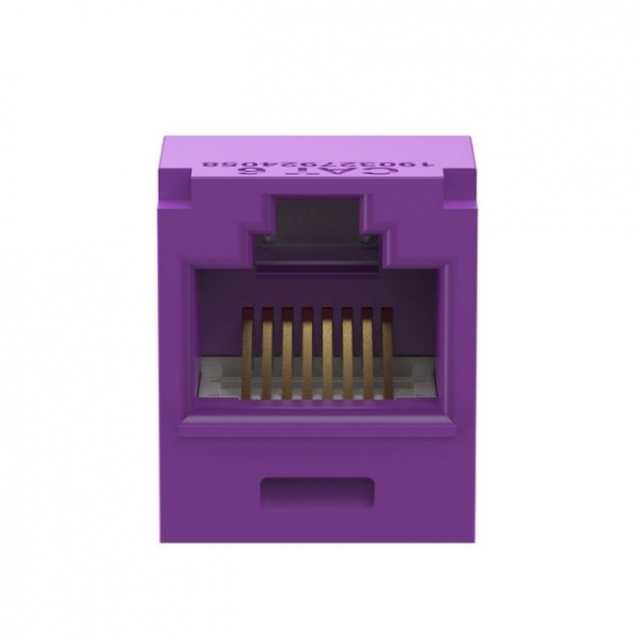

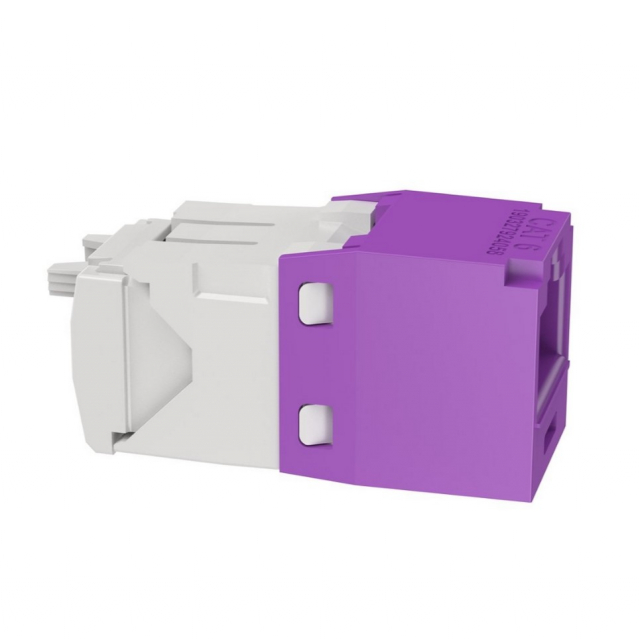

Panduit, CJ688TGVL, Mini-Com UTP RJ45 Cat 6 TG Jack Module Violet

Jack module offers a toolless solution for reliable network installations. Factory-tested modules deliver performance that exceeds standard industry requirements.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Reviews
Product TypeJack Module
Performance LevelCategory 6
Connector TypeJack Module - Standard
Termination StyleTG Style
Body MaterialPolycarbonate
Contact MaterialPlated Phosphor Bronze
Module TypeMini-Com
Wiring SchemeT568A/T568B
Shield TypeUnshielded (UTP)
Sub BrandPan-Net
Maximum Operating Temperature (°C)75
Maximum Operating Temperature (°F)167
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)75
Maximum Storage Temperature (°F)167
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Resistance PropertiesHeat-Resistant
ColorViolet
Standards Met
  • Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz
  • Supports 10GBASE-T transmission over twisted pair cabling systems (4-connector configuration up to 100 meters)
  • Exceeds component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards
  • Meets ANSI/TIA-1096-A
  • Meets IEC 60603-7
  • Meets IEC 60512-99-001
  • Rated for 2500 cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4
  • UL 1863
  • UL 2043
  • RoHS Compliant
Overall Length (In.)1.5
Overall Length (mm)38.1
Overall Width (In.)0.62
Overall Width (mm)15.7
Overall Depth (In.)1.5
Overall Depth (mm)38.1
Overall Height (In.)0.71
Overall Height (mm)18
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Product TypeJack Module
Performance LevelCategory 6
Connector TypeJack Module - Standard
Termination StyleTG Style
Body MaterialPolycarbonate
Contact MaterialPlated Phosphor Bronze
Module TypeMini-Com
Wiring SchemeT568A/T568B
Shield TypeUnshielded (UTP)
Sub BrandPan-Net
Maximum Operating Temperature (°C)75
Maximum Operating Temperature (°F)167
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)75
Maximum Storage Temperature (°F)167
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Resistance PropertiesHeat-Resistant
ColorViolet
Standards Met
  • Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz
  • Supports 10GBASE-T transmission over twisted pair cabling systems (4-connector configuration up to 100 meters)
  • Exceeds component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards
  • Meets ANSI/TIA-1096-A
  • Meets IEC 60603-7
  • Meets IEC 60512-99-001
  • Rated for 2500 cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4
  • UL 1863
  • UL 2043
  • RoHS Compliant
Overall Length (In.)1.5
Overall Length (mm)38.1
Overall Width (In.)0.62
Overall Width (mm)15.7
Overall Depth (In.)1.5
Overall Depth (mm)38.1
Overall Height (In.)0.71
Overall Height (mm)18
Note

Note: Please read description carefully. Do not base your order on the picture presented.
