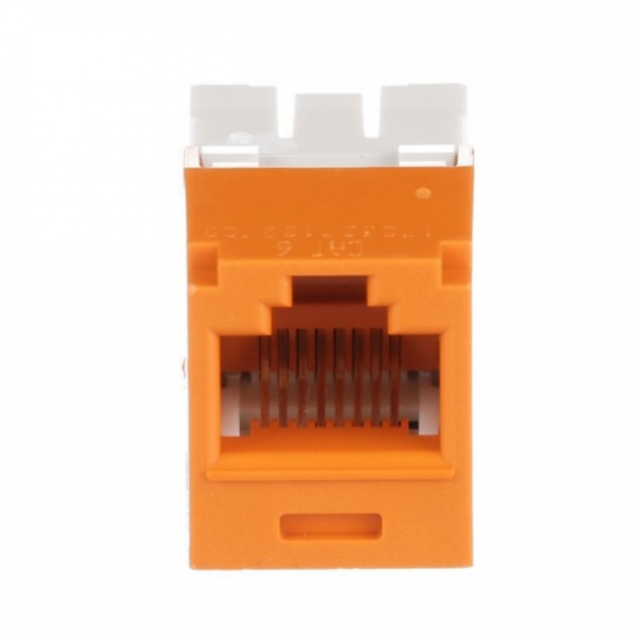

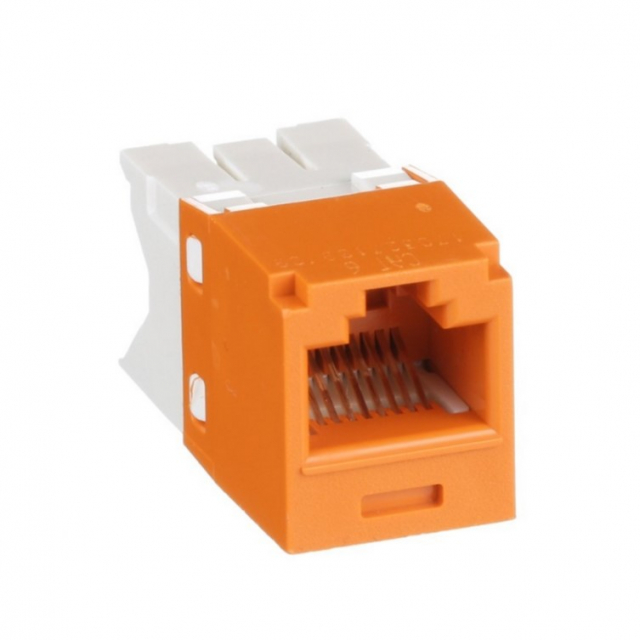

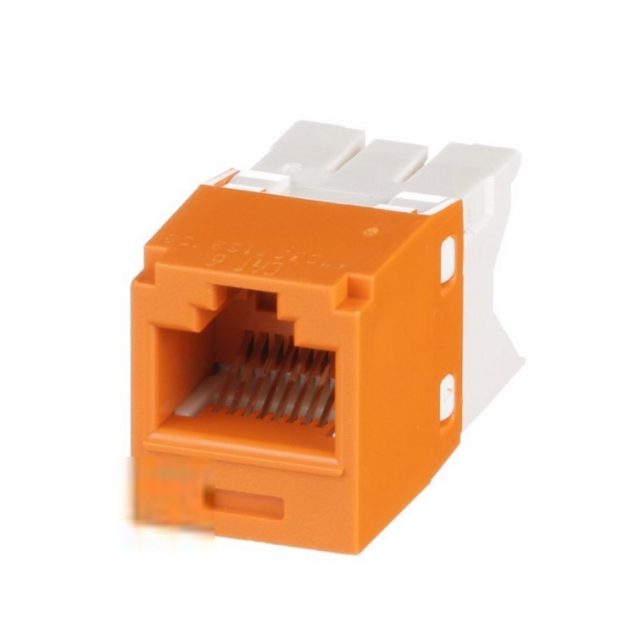

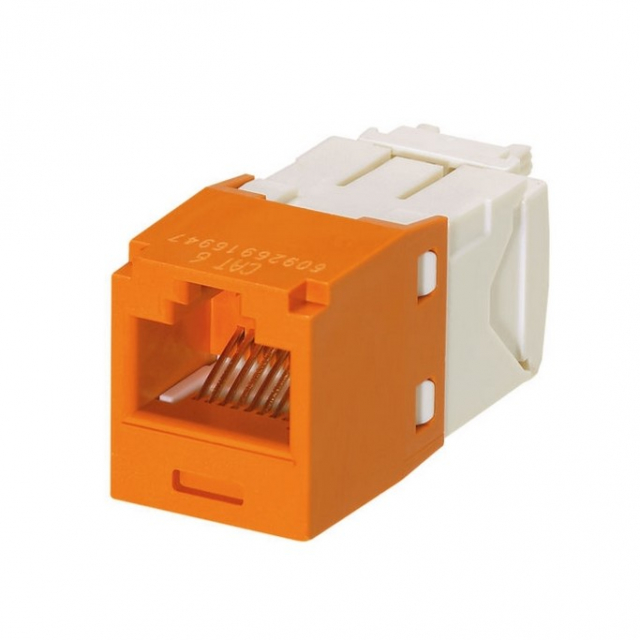

Panduit, CJ688TGOR-24, Mini-Com UTP RJ45 Cat 6 TG Jack Module Orange 24 pcs

Jack module offers a toolless solution for reliable network installations. Factory-tested modules deliver performance that exceeds standard industry requirements.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Type	Jack Module
Performance Level	Category 6
Connector Type	Jack Module - Standard
Termination Style	TG Style
Body Material	Polycarbonate
Contact Material	Plated Phosphor Bronze
Module Type	Mini-Com
Wiring Scheme	T568A/T568B
Shield Type	Unshielded (UTP)
Sub Brand	Pan-Net
Maximum Operating Temperature (°C)	75
Maximum Operating Temperature (°F)	167
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Maximum Storage Temperature (°C)	75
Maximum Storage Temperature (°F)	167
Minimum Storage Temperature (°C)	-40
Minimum Storage Temperature (°F)	-40
Resistance Properties	Heat-Resistant
Color	Orange
Standards Met	Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz Supports 10GBASE-T transmission over twisted pair cabling systems (4-connector configuration up to 100 meters) Exceeds component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards Meets ANSI/TIA-1096-A Meets IEC 60603-7 Meets IEC 60512-99-001 Rated for 2500 cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4 UL 1863 UL 2043 RoHS Compliant
Overall Length (In.)	1.5
Overall Length (mm)	38.1
Overall Width (In.)	0.62
Overall Width (mm)	15.7
Overall Depth (In.)	1.5
Overall Depth (mm)	38.1
Overall Height (In.)	0.71
Overall Height (mm)	18
