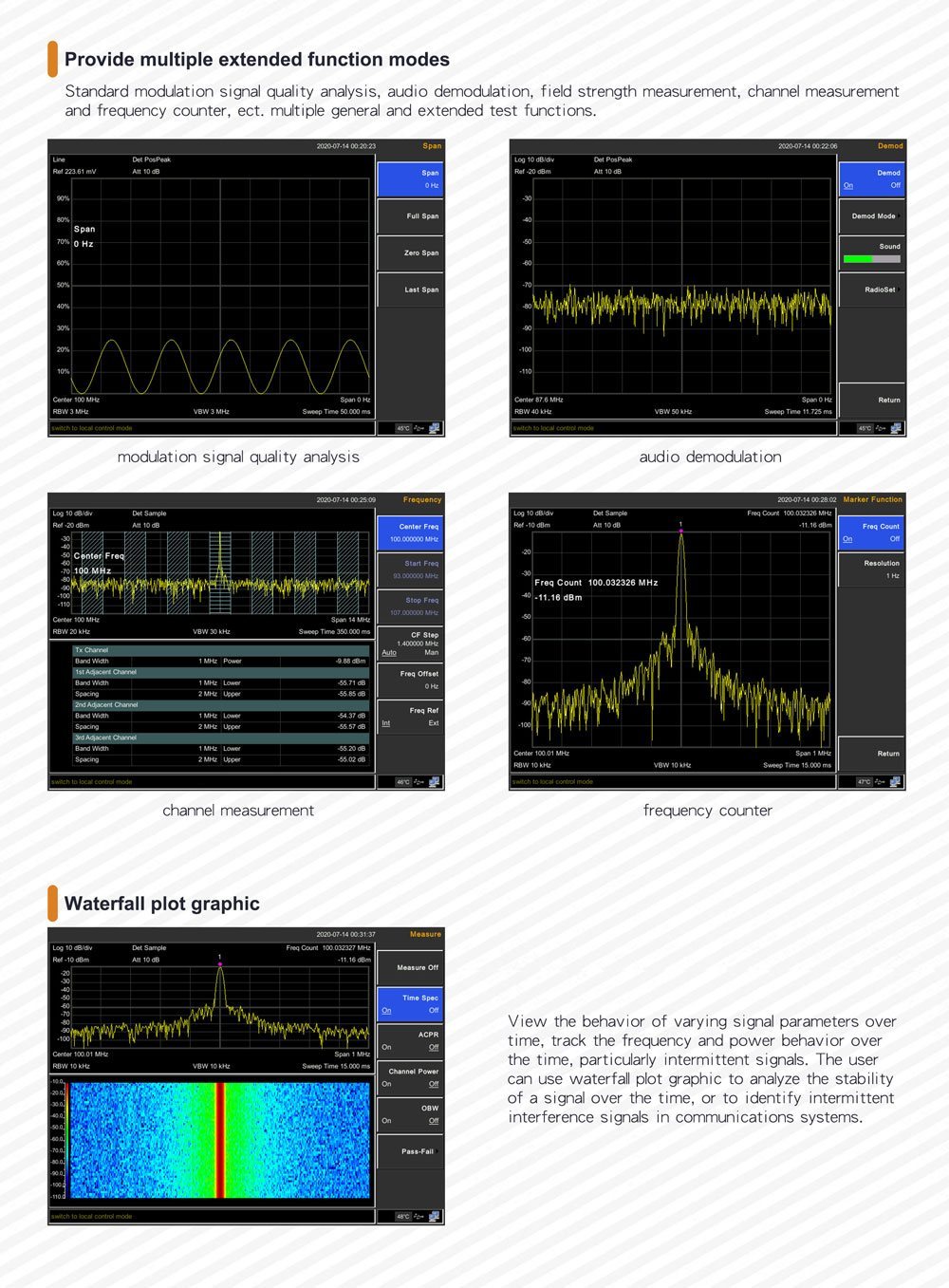

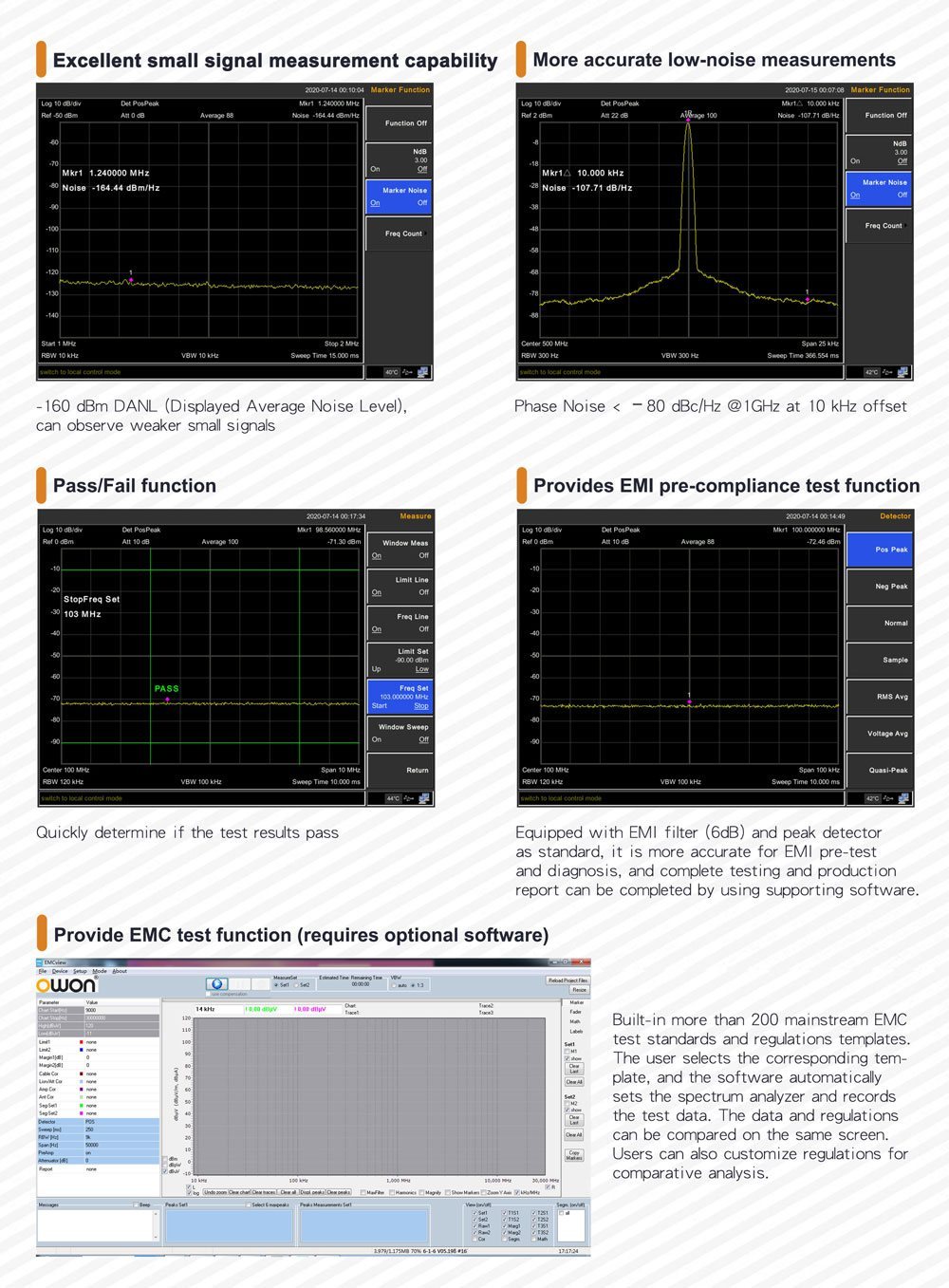

| Frequency |
| Range | 9kHz-7.5 GHz |
| Resolution | 1Hz |
| Frequency span |
| Range | 0 Hz,100 Hz to maximum frequency of device |
| Accuracy | ± span /(swept points -1) |
| Internal reference |
| Reference frequency | 10.000000 MHz |
| Reference frequency accuracy | ±[(days from last calibrate x freq aging rate)+ temperature stability + initial accuracy ] |
| Temperature stability | <1ppm(15°C to 35°C) |
| Aging rate | <1ppm/year |
| Readout |
| Marker frequency resolution | span/(the number of sweep points -1) |
| Uncertainty | ±(freq indication x freq reference uncertainty +1%x span +10%x resolution bandwidth + Marker Frequency Resolution) |
| Frequency counter |
| Resolution | 1 Hz,10 Hz,100 Hz,1 kHz |
| Accuracy | ±(marker freq x freq reference uncertainty + counter resolution) |
| Bandwidth |
| Resolution bandwidth (-3 dB) | 10Hz to 500kHz(in 1 to 10 sequence), 1MHz, 3MHz |
| Resolution filter shape factor | <5:1 nominal(Digital implement, similar to Gauss Pattern) |
| Accuracy | <5% nominal |
| Video bandwidth (-3 dB) | 10Hz to 3MHz |
| Amplitude and electric level |
| Amplitude measurement range | DANL to +20 dBm, close the preamplifier |
| Reference electric level | -80 dBm to +30 dBm, 0.01dBm steps |
| Preamplifier | 20 dB, nominal |
| Input attenuator range | 0~50 dB, 1 dB steps |
| Max input DC voltage | 50 VDC |
| Max continuous power | +30dBm,average continuous power |
| Displayed average noise level(DANL) | Input attenuation 0 dB,1Hz resolution bandwidth |
| Preamp off | - 1 MHz~10 MHz -140dBm(nominated)
- 10 MHz~1GHz -140dBm(nominated)
- XSA1015TG:1GHz~1.5 GHz -138 dBm (nominated )
- XSA1032TG:1GHz~3.2GHz -138 dBm (nominated )
- XSA1036TG:1GHz~3.6 GHz -138 dBm (nominated )
- XSA1075TG:1GHz~3.6GHz -138dBm (nominated)
- 4GHz~5GHz,-133dBm ( nominated )
- 5GHz~6GHz,-128dBm ( nominated )
- 6GHz~7GHz-123dBm ( nominated )
- 7GHz~7.5GHz,-118dBm ( nominated )
|
| Preamp on | - 1 MHz~10 MHz -160dBm(nominated)
- 10 MHz~1GHz -160dBm(nominated)
- XSA1015TG: 1GHz~1.5 GHz -158 dBm (nominated )
- XSA1032TG: 1GHz~3.2 GHz -158 dBm (nominated )
- XSA1036TG: 1GHz~3.6 GHz -158 dBm (nominated )
- XSA1075TG: 1GHz~4GHz -158dBm (nominated)
- 4GHz~5GHz -153dBm ( nominated )
- 5GHz~6GHz -148dBm ( nominated )
- 6GHz~7GHz -143dBm ( nominated )
- 7GHz~7.5GHz -138dBm ( nominated )
|
| Phase noise | - 20 °C ~30 °C,fc=1 GHz
- <-98 dBc/Hz at10 kHz offset
- <-100 dBc/Hz at100 kHz offset
- <-110 dBc/Hz at1 MHz offset
|
| Level display range |
| Log scale coordinate | 1dB ~255dB |
| Linear scale coordinate | 0 to reference level |
| Level unit | dBm, dBuW, dBpW, dBmV, dBuV, W,V |
| Points | 201~1001 |
| Number of traces | 5 |
| Detectors | Positive-peak, negative-peak, sample, normal, RMS |
| Trace functions | Clear write, Max Hold, Min Hold, View, Blank, Average |
| Frequency response | 20°C ~30°C,30%~70% relative humidity, 20 dB input attenuation, reference 50 MHz |
| Preamp off | ±0.8 dB |
| Preamp on | ±0.9 dB |
| Accuracy |
| Input Attenuation Switching Uncertainty | 20°C ~30°C, fc=50 MHz,Preamplifier Off, 20dB RF attenuation,input signal 1~40 dB
±0.5 dB |
| Absolute Amplitude Uncertainty | - 20°C ~30°C, fc=50 MHz,RBW=1 kHz,VBW=1 kHz,peak detector, 20 dB RF attenuation
- Preamplifier Off ±0.4 dB,input signal= -20dBm
- Preamplifier On ±0.5 dB, input signal= -40dBm
|
| Uncertainty | - input signal range 0dbm~-50dbm
- ±1.5 dB
|
| VSWR | - input 20 dB,1 MHz~7.5GHz
- <1.5,nominal
|
| Distortion and spurious response |
| Second harmonic distortion | - fc ≥ 50 MHz,Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 °C to 30 °C
- -65dbc
|
| Third-order intermodulation | |
| 1 dB Gain Compression | - fc ≥ 50 MHz, 0 dB RF attenuation,Preamp off , 20 °C to 30 °C
- 2 dBm, nominal
|
| Residual response | connect 50 Ω load at input port,0 dB input attenuation,20 °C to 30 °C<-85dBm,nominated |
| Input related spurious | - -30 dBm signal at input mixer,20 °C to 30 °C
- <-60 dBc
|
| Sweep time and triggering |
| Span range | 100Hz≤SPAN≤3GHz 10ms to 3000s zero sweep width 1ms to 3000s |
| Mode | Continue, single |
| Trigger | Free run, video |
| Tracking generator |
| Output frequency range | - 100 kHz~3.6 GHz(Tracking generator)
- 35 MHz~3.6 GHz(Tracking generator)
- 100 kHz~7.5 GHz(Tracking generator)
|

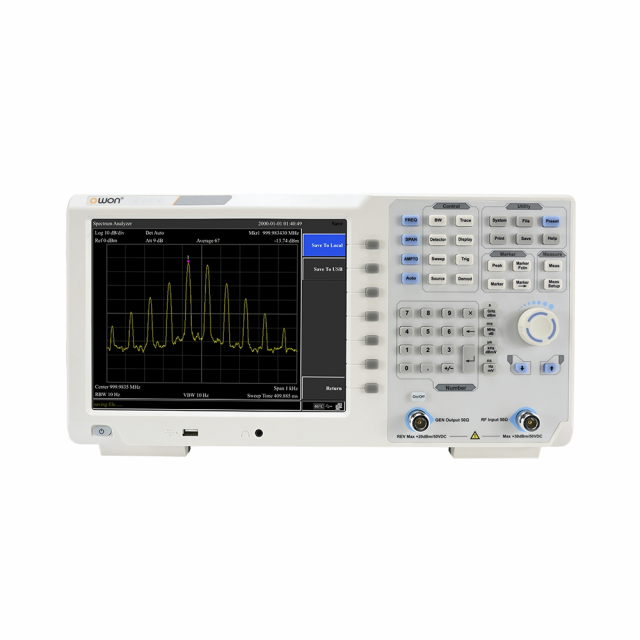

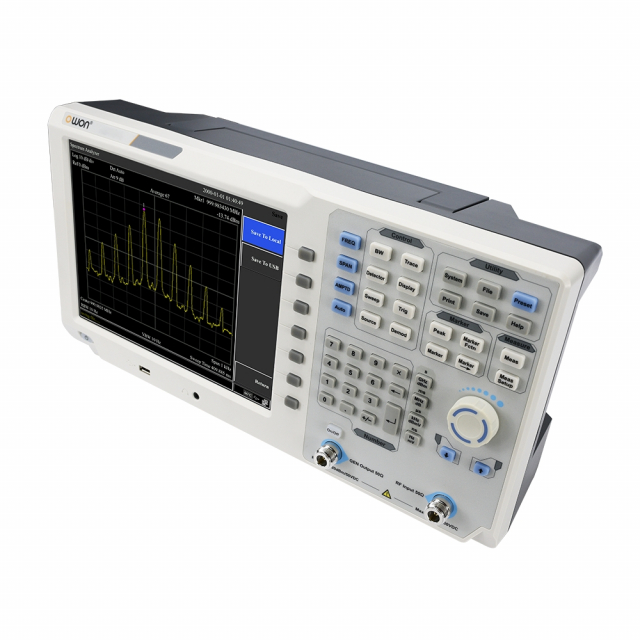

| Output power level range | -40 dBm~0 dBm |
| Output power level resolution | 1dB |
| Output flatness | +/-3 dB |
| Maximum safe reverse level | Average total power:+30 dBm,DC : ±50 VDC |
| Inputs and Outputs |
| Front panel RF input connector | 50 Ω,N-type female |
| Front panel track generator output | 50 Ω,N-type female |
| 10 M reference input | 50 Ω,N-type female |

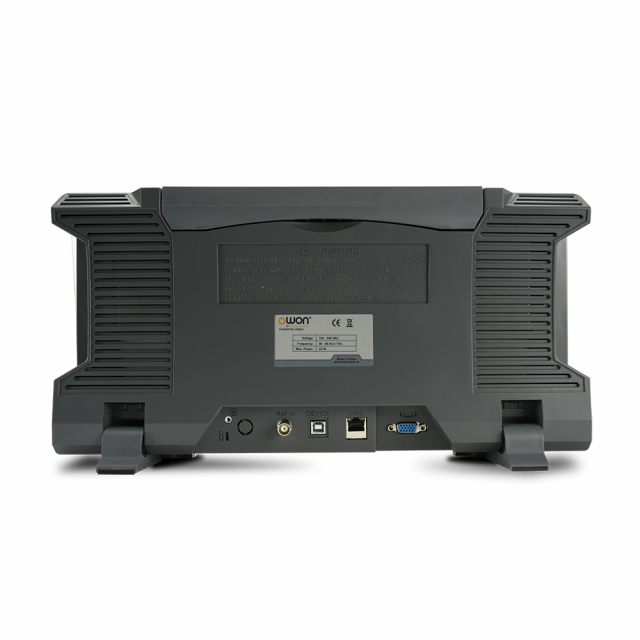

| Communication port | USB HOST, USB DEVICE, LAN, earphone port, REF and VGA |
| General techincal specification |

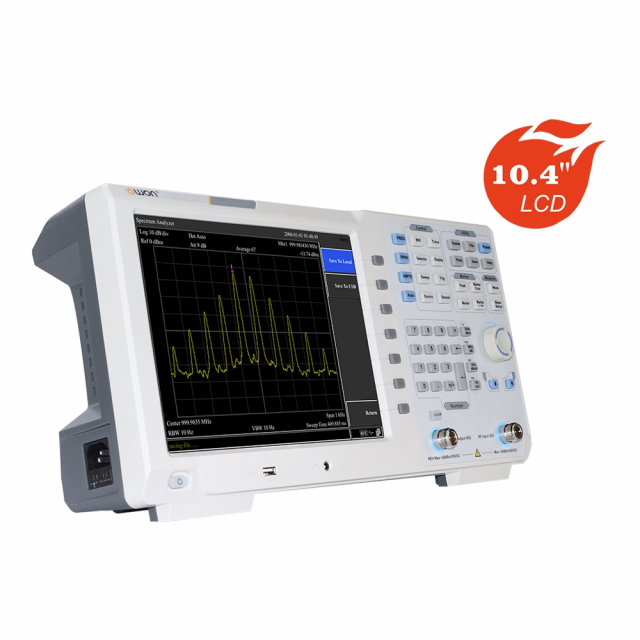

| Display | TFT LCD,10.4 inches |
| Weight (without package) | About 5 kg |
| Dimension (W x H x D) | 421 x 221 x 115 (mm) |
| Working temperature | 0~40 °C |
| Storage temperature | -20 °C to +60 °C |
| Power | 100V~240V 50/60Hz |
