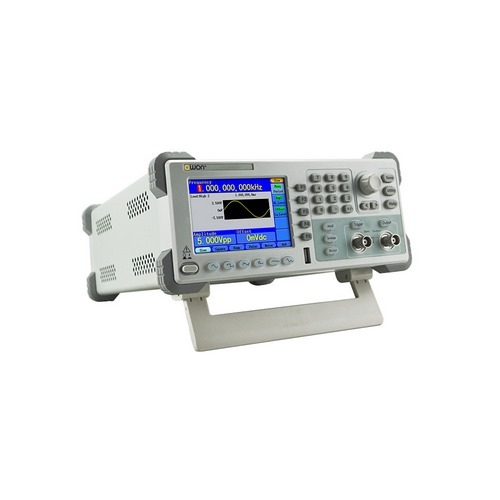

Owon, AG4121, OWON 1-CH High Frequency Arbitrary Waveform Generator

Build-in educational/industrial common waveforms and divide it into common, math, engineer, window, other types. Modulate function includes AM, FM, PM, ASK, FSK, PSK and PWN. Internal and external modulate source supported to meet the requirement for more educational or communication system test.

Features:

Advanced DDS technology, max 60MHz frequency output
Up to 250MS/s sample rate, and 1μHz frequency resolution
Vertical Resolution : 14 bits, up to 1M arb waveform length
Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
Comprehensive modulation functions : AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
Supported SCPI
4 inches high resolution (480 x 320 pixels) TFT LCD display

For more information, please see Data Sheet

For more information, please see User Manual

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Channel	single + trigger
Frequency Output	120MHz
Sample Rate	400MS/s
Vertical Resolution	14 bits
Standard Waveform	Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform	Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, user-defined arbitrary waveform
Noise	50MHz (-3dB) (typical)
Amplitude	10m Vpp - 10 Vpp 20m Vpp - 20 Vpp (high impedance)
Resolution	1mVpp or 4 digits
DC Offset Range (AD+DC)	5V, 10V (high impedance)
DC Offset Range Resolution	1mV or 4 digits
Wave Length		2 pts to 1M pts
Sample Rate		200MS/s
Vertical Resolution		14 bits
Non-volatile Memory		64M byte
Modulation Waveform		AM, FM, PM, FSK, PWM, Sweep, and Burst
Modulation Frequency		2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Display		4 inch (480 x 320 pixels) LCD
Type		external modulation input, external trigger input / output, external reference clock input / output
Communication Interface		USB host, USB device, RS232, and LAN
Dimension (WxHxD)		235 x 110 x 295 (mm)
Device Weight		3.00 kg
