Optoma ZH420UST-B Ultra Short Throw 1080p Laser Multimedia Projector

  • Brand Optoma
  • Part # ZH420UST-B
  • Condition
    Brand New
Optoma, ZH420UST-B

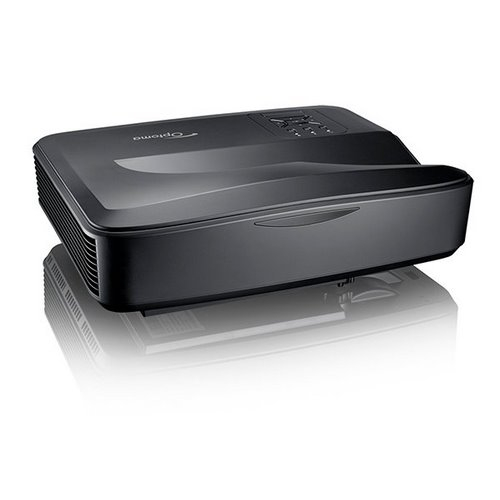

Additional image #1 for Optoma ZH420UST-B

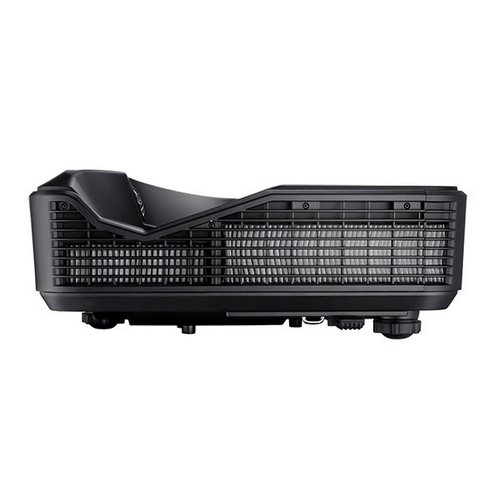

Additional image #2 for Optoma ZH420UST-B

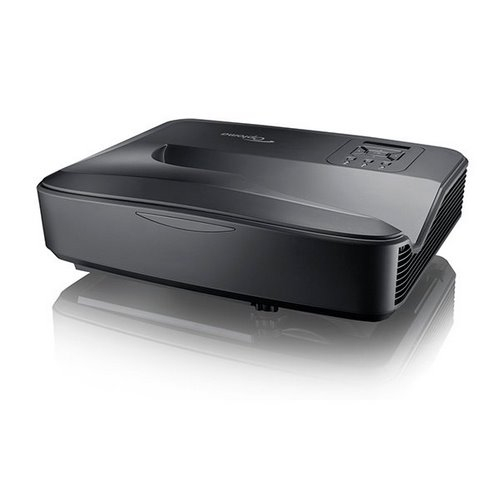

Additional image #3 for Optoma ZH420UST-B

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

ZH420UST-B Includes Only:

  • Laser Projector
  • AC power cord
  • VGA to VGA cable
  • Remote control
  • Batteries for remote
  • Multilingual CD-ROM user’s manual
  • Quick start guide

Equip space-constrained environments with the 4,000 lumens 1080p Optoma ZH420UST, driven by laser-phosphor technology for stunning images with up to 30,000 hours of life from the light source. A throw ratio of 0.25:1 enables 100-inch projections from 12 inches away, ideal for small classrooms, meeting rooms, boardrooms and digital signage. Built-in warping adjustments provide image manipulation and projection onto virtually any geometric surface, including support for up to 17 x 17 individual point adjustments. The geometric flexibility makes combining multiple ZH420USTs to produce one large, bright and ultra-wide image easy.

Features:

  • Bright 4,000 lumens and 100,000:1 contrast ratio for bright and sharp images
  • Laser light source provides up to 30,000 hours of life
  • Full HD 1080p with HDMI, VGA-in and HDBaseT connectivity
  • Blend multiple projectors to produce a single ultra-wide image perfect for digital signage
  • Easily project images onto various geometric surfaces with integrated warping adjustments
  • A powerful 10-watt speaker enhances presentations with room-filling audio
  • Amazing Color
  • Full HD 1080p
  • Ultra Short Throw
  • DLP Technology
  • Full 3D
  • MHL Connectivity
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Optional Accessories
Reviews
Aspect Ratio16:9 (native) and 4:3 compatible
Audio10W speaker
Brightness4,000 ANSI lumens
Connections2xHDMI, HDBaseT (shared with LAN), VGA in, VGA out, audio-In (3.5 mm), Mic-in (3.5 mm), audio-out (3.5mm), RS- 232C, LAN (shared with HDBaseT), mini-USB (service), USB power
Contrast Ratio100,000:1 (dynamic black enabled)
Display TechnologySingle Texas Instrument DMD, 12 degree .65" 1080P DMD X1, Type S600, DC3
Displayable Colors1.07 billion
Keystone Correction+-30° vertical and horizontal
Light Source TypeLaser phosphor
Light Source LifeUp to 30,000 hours
Lens ShiftNone
Maximum ResolutionWUXGA (1920 x 1200)
Native Resolution1080p (1920 x 1080)
Noise Level32dB (Eco)
Offset120% (+-3% variance)
On-Screen DisplayComplete on-screen menu adjustments in 18 languages
Operating Temperature41-104°F (5-40°C), 85% max humidity
Power Consumption350W+-15% (Full), 245W+-15% (Eco)
Power SupplyAC input 90 - 264V, 50-60 Hz
Projection Distance9.2" - 12.4" (233-316mm)
Projection LensF/2.4; f=3.72 mm, Fixed Zoom
Projection MethodFront, rear, ceiling count, tabletop
Projection Screen Size87" - 102"
Remote ControlIR remote control
Throw Ratio0.25:1 (distance/width) - 5% variance
Uniformity80%
Zoom TypeFixed lens
3D CompatibilitySide-by-Side: 1080i50 / 60, 720p50 / 60, Frame-pack: 1080p24, 720p50 / 60, Over-Under: 1080p24, 720p50 / 60
Computer CompatibilitySVGA, VGA, SXGA, UXGA, XGA,WXGA, HD, Mac
Horizontal Scan Rate15.375~91.146 KHz
Optional WirelessYes
RoHSCompliant
Vertical Scan Rate24 - 85Hz (120Hz for 3D)
Video CompatibilityNTSC, PAL, SECAM, SDTV 480i/p, 576i/p, HDTV 720p(50/60Hz), 1080i(50/60Hz), 1080P(50/60Hz)
Dimensions (W x H x D)15"x4"x11.5"
SecurityKensington Lock port, security bar and keypad lock
Weight12.5 lbs
Optional AccessoriesWall Mount, Cat6 HDBaseT kit, DLP Link 3D glasses
UPC796435 44 205 7
Product Details
Aspect Ratio16:9 (native) and 4:3 compatible
Audio10W speaker
Brightness4,000 ANSI lumens
Connections2xHDMI, HDBaseT (shared with LAN), VGA in, VGA out, audio-In (3.5 mm), Mic-in (3.5 mm), audio-out (3.5mm), RS- 232C, LAN (shared with HDBaseT), mini-USB (service), USB power
Contrast Ratio100,000:1 (dynamic black enabled)
Display TechnologySingle Texas Instrument DMD, 12 degree .65" 1080P DMD X1, Type S600, DC3
Displayable Colors1.07 billion
Keystone Correction+-30° vertical and horizontal
Light Source TypeLaser phosphor
Light Source LifeUp to 30,000 hours
Lens ShiftNone
Maximum ResolutionWUXGA (1920 x 1200)
Native Resolution1080p (1920 x 1080)
Noise Level32dB (Eco)
Offset120% (+-3% variance)
On-Screen DisplayComplete on-screen menu adjustments in 18 languages
Operating Temperature41-104°F (5-40°C), 85% max humidity
Power Consumption350W+-15% (Full), 245W+-15% (Eco)
Power SupplyAC input 90 - 264V, 50-60 Hz
Projection Distance9.2" - 12.4" (233-316mm)
Projection LensF/2.4; f=3.72 mm, Fixed Zoom
Projection MethodFront, rear, ceiling count, tabletop
Projection Screen Size87" - 102"
Remote ControlIR remote control
Throw Ratio0.25:1 (distance/width) - 5% variance
Uniformity80%
Zoom TypeFixed lens
3D CompatibilitySide-by-Side: 1080i50 / 60, 720p50 / 60, Frame-pack: 1080p24, 720p50 / 60, Over-Under: 1080p24, 720p50 / 60
Computer CompatibilitySVGA, VGA, SXGA, UXGA, XGA,WXGA, HD, Mac
Horizontal Scan Rate15.375~91.146 KHz
Optional WirelessYes
RoHSCompliant
Vertical Scan Rate24 - 85Hz (120Hz for 3D)
Video CompatibilityNTSC, PAL, SECAM, SDTV 480i/p, 576i/p, HDTV 720p(50/60Hz), 1080i(50/60Hz), 1080P(50/60Hz)
Dimensions (W x H x D)15"x4"x11.5"
SecurityKensington Lock port, security bar and keypad lock
Weight12.5 lbs
Optional AccessoriesWall Mount, Cat6 HDBaseT kit, DLP Link 3D glasses
UPC796435 44 205 7
