NTI rackmux-4k17-n-4hd18gb 4K KVM Drawer 4K 60Hz HDMI Switch 4-Port

NTI, rackmux-4k17-n-4hd18gb, Rackmount 4K KVM Drawer with 4K 60Hz HDMI USB KVM Switch, 4-port

rackmux-4k17-n-4hd18gb Includes Only:

• RACKMUX KVM Drawer with integrated UNIMUX HD4K 18GB switch
• IEC Power cord- country specific
• Single-Person Installation mounting kit
• DB9 Female-to-RJ45 Female adapter
• 5 foot RJ45-to-RJ45 CAT5 patch cable
• URL slip with link to PDF file of this manual
• Cable management tray + 4pc #6-32 x 1/4" flat head black screws
• 18 pcs of 6" cable ties

Features:

• Available with forward-folding 17.3" TFT/LCD monitor.
• Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 at24/30/60Hz RGB/YUV 4:4:4).
• Available with a 4-, 8-, or 16-port 4K 18Gbps HDMI USB KVM Switch.
  • Control up to 16 Ultra-HD 4Kx2K 60Hz USB computers.
• Compatible with USB computers (PC and MAC) with HDMI outputs.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, FreeBSD, and MAC OS 10/11/12/13.
• Control the switch through the front panel buttons, keyboard commands, OSD, or RS232.
• Torque-friction hinges - monitor does not wobble, spring, or slam shut.
• Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
• Three-button touchpad mouse supports single-finger gestures.
• Rugged steel construction with durable powder coat finish.
• LCD auto-shutoff in closed position.
• Drawer locks into place when open to prevent it from sliding in and out of the rack.
• Designed to be a one-person job when installing the drawer.
• Cable management tray included.

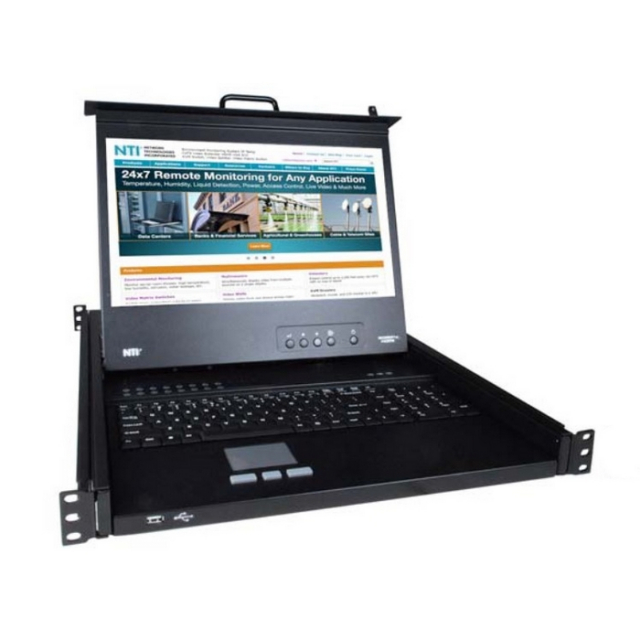

The RACKMUX® 4K KVM Drawer with Built-In 4K 60Hz HDMI USB KVM Switch combines a rackmount 4Kx2K LCD monitor, keyboard, touchpad mouse and a 4K 60Hz HDMI USB KVM Switch in a space-saving 1RU industrial strength drawer.
