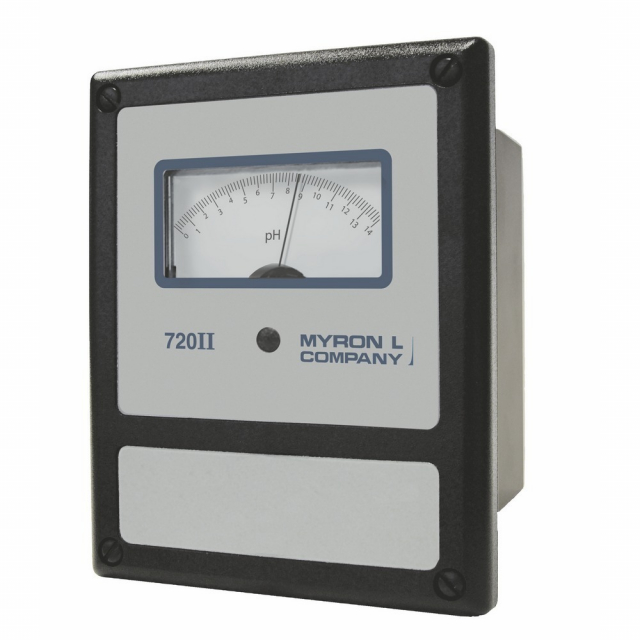

Myron L 721II 720 Series II pH-Analog Monitor Only

Features:

• 0-14 pH
• 2.5 in./63 mm meter
• Advanced "Isolated" circuitry
• Automatic temperature
• Compensation to 25°C (NERNST equation)
• Isolated 0-10 VDC
• Recorder Output standard
• IP65/NEMA 4X water resistant and corrosion-proof enclosure
• Built-in electronic calibration
• Solid State 24 VDC Output
• 10 amp relay operates on choice of increasing or decreasing reading
• Push-to-test set point check
• Internal set point discourages
• Unauthorized adjustment
• Unique, easily installed sensors
• Heavy duty "F" model sensors may be installed in ANY direction including inverted

Applications:

• Process Control
• Reverse Osmosis
• Seawater Desalination
• Waste Treatment
• Food Processing
• Plating
• Power Plants
• Laboratories
• Printing
• Paper and Pulp
• Boilers & Cooling Towers
• Potable Water
• Waste Water Treatment
• Swimming Pools & Spas
• Bleach Manufacturing
• Reduction of Chromate Waste
• Environmental

Benefits:

• Affordable
• Ease of Operation
• Low Maintenance
• Ensures Product Quality

The advanced "isolated" circuitry of the 720 Series II pH/ORP Monitor/controllers guarantees accurate and reliable measurements - completely eliminating ground-loop and noise issues. The unique sensor preamp allows for longer distances between the sensor and the Monitor/controller without the loss of accuracy or reliability. All Myron L Monitor/controllers feature a highly refined and precise Temperature Compensation circuit. This feature perfectly matches the NERNST equation correcting the displayed reading to 25°C. The TC may be disabled to conform with USP requirements. Built-in electronic calibration allows for fast quality checks without buffers. (Note: for maximum system accuracy buffers are recommended). A push-to-test button makes set point checks easy, while the internal alarm set discourages unauthorized adjustments. Standard on all controller models is a heavy-duty 10 amp output relay, operating on either increasing or decreasing readings. Bright green/red LEDs indicate above/below set point readings. All 720 Series II models feature an IP65/NEMA 4X water resistant and corrosionproof rated enclosure. Compact in size, at 152 x 122 mm/6 x 4.8 in., the 720 Series II models are suitable for panel, bench or surface mounting

For more information, please see Data Sheet
