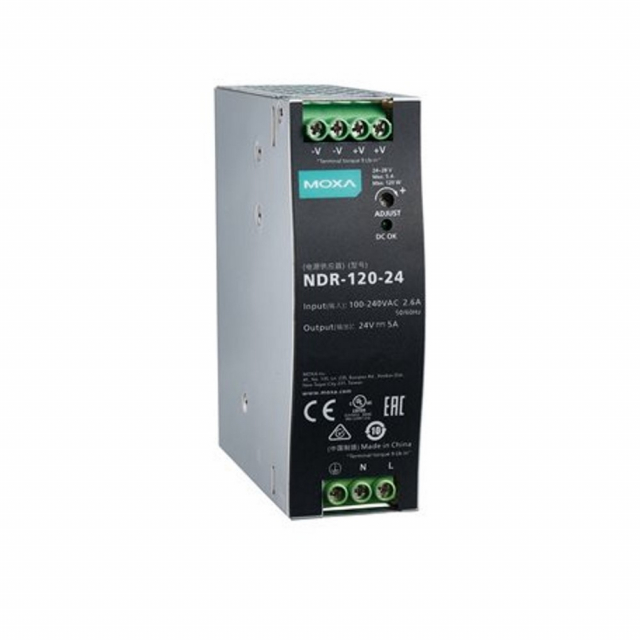

Moxa, NDR-120-24, 120 W/5.0 A DIN-Rail 24 VDC Power Supply, 90 to 264 VAC / 127 to 370 VDC Input Voltage

Features:

DIN-rail mounted power supply
Slim form factor that is ideal for cabinet installation
Universal AC power input
High power conversion efficiency

The NDR Series of DIN rail power supplies is designed specifically for use in industrial applications. The 40 to 63 mm slim form-factor enables the power supplies to be easily installed in small and confined spaces such as cabinets. The broad operating temperature range of -20 to 70°C means they are capable of operating in harsh environments. The devices have a metal housing, an AC input range from 90 VAC to 264 VAC, and conform to the EN 61000-3-2 standard. In addition, these power supplies feature constant current mode to provide overload protection.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Output Power Parameters

Wattage

120 W

Voltage

24 VDC

Current Rating

0 to 5 A

Ripple and Noise

120 mVp-p

Voltage Adjustment Range

24 to 28 VDC

Setup/Rise Time at Full Load

2500 ms, 60 ms at 115 VAC
1200 ms, 60 ms at 230 VAC

Typical Hold Up Time at Full Load

10 ms at 115 VAC
16 ms at 230 VAC

Input Power Parameters

Typical Efficiency

88%

Typical Current

1.3 A at 230 VAC, 2.25 A at 115 VAC

Voltage Range

90 to 264 VAC (47 to 63 Hz)
127 to 370 VDC

Inrush Current (cold start)

35 A at 230 VAC, 20 A at 115 VAC

Overload Protection

Rated Output Power

105 to 160%

Protection Type

Constant current limiting, recovers automatically after fault condition is removed

Overvoltage Protection

Overvoltage Range

29 to 33 V

Protection Type

Shut down operating voltage, repower on to recover

Physical Characteristics

Housing

Metal

Dimensions

123.75 x 125.20 x 40 mm (4.87 x 4.93 x 1.57 in)

Weight

500 g (1.10 lb)

Environmental Limits

Operating Temperature

-20 to 65°C (-4 to 149°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

20 to 95% (non-condensing)

Maximum Operating Temperature at Full Load

45°C (113°F)

Standards and Certifications

Safety

UL 508
EN 62368-1
IEC 62368-1

EMC

EN 55032/35
EN 61000-3-2 Class A
EN 61000-3-3
EN IEC 61204-3
EN IEC 61000-6-2

EMS

IEC 61000-4-2 ESD: Contact: 4 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV
Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

MTBF

Standards

MIL-HDBK-217F

Time

453,334 hrs

Notes
