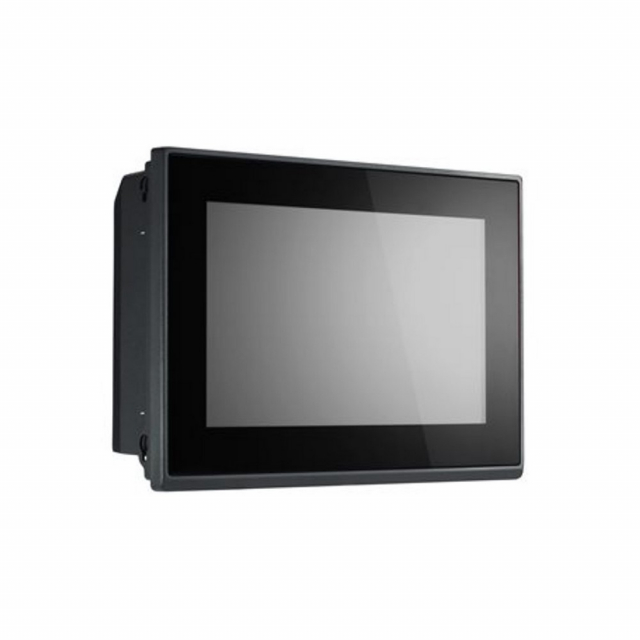

Moxa, MPC-2070-E2-T, 7" Industrial Touch (QTC) Panel Computer, E3826 CPU, 4GB RAM, 1000 Nits, 16:9 Ratio, IP66 in Front

Features:

7-inch panel computer
Intel Atom® processor E3826 1.46 GHz
-40 to 70°C wide-temperature design, no fan or heater
1000-nit sunlight-readable LCD
Glove-friendly, multi-touch screen
Class 1 Division 2, ATEX Zone 2, and IECEx compliant Certification is underway for DNV, ATEX, and IECEx.
Wide-range 10 to 36 VDC power input

The MPC-2070 7-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2070 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2070 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. The MPC-2070 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen, providing an excellent user experience for outdoor applications.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Computer

CPU

Intel Atom E3826 processor (1M cache, 1.46 GHz)

Graphics Controller

Intel HD Graphics

System Memory Pre-installed

4 GB DDR3L

System Memory Slot

SODIMM DDR3/DDR3L slot x 1

Pre-installed OS

OS is not pre-installed

Supported OS

Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit
Linux Debian 9

Storage Slot

CFast slot x 1
SD slots x 1, SD 3.0 (SDHC/SDXC) socket

Computer Interface

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 Connector) x 2

Serial Ports

RS-232/422/485 ports x 2, software selectable (DB9 male)

USB 2.0

USB 2.0 hosts x 2, type-A connectors

Digital Input

DIs x 4

Digital Output

DOs x 4

LED Indicators

System

Power x 1

LAN

2 per port (10/100/1000 Mbps)

Display

Active Display Area

152.4 (H) x 91.44 (V) mm

Contrast Ratio

600:1

Light Intensity (Brightness)

1000 cd/m²

Maximum Number of Colors

16.2M (8-bit/color)

Panel Size

7-inch viewable image

Panel Type

Pixel Pitch (RGB)

0.1905 (H) x 0.1905 (V) mm

Pixels

800 x 480

Response Time

5 ms (gray to gray)

Viewing Angles

140±0/120±0

Touch Function

Touch Type

Capacitive Touch (PCAP)

Touch Support Points

4 points

Glove Support

Yes

Serial Interface

Baud Rate

50 bps to 115.2 kbps

Data Bits

5, 6, 7, 8

Flow Control

RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 1.5, 2

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage

10 to 36 VDC

Power Consumption

40 W (max.)

Physical Characteristics

Housing

Metal

IP Rating

IP66, front ; IP20, rear

Dimensions

200 x 140 x 45 mm (7.9 x 5.5 x 1.8 in)

Weight

1,400 g (3.09 lb)

Environmental Limits

Operating Temperature

-40 to 70°C (-40 to 158°F)

Storage Temperature (package included)

-40 to 70°C (-40 to 158°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV
Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Environmental Testing

IEC 60068-2-1, DNV-CG-0339
IEC 60068-2-2, DNV-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945

Hazardous Locations

ATEX
Class I Division 2
IECEx

Maritime

DNV

Mechanical Protection Rating

IEC 60529, IP code

Safety

EN 60950-1
IEC 60950-1
UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6
IEC 60068-2-6, IEC 60945
IEC 60068-2-64, DNV-CG-0339

Declaration

Green Product

RoHS, CRoHS, WEEE

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Computer

CPU

Intel Atom E3826 processor (1M cache, 1.46 GHz)

Graphics Controller

Intel HD Graphics

System Memory Pre-installed

4 GB DDR3L

System Memory Slot

SODIMM DDR3/DDR3L slot x 1

Pre-installed OS

OS is not pre-installed

Supported OS

Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit
Linux Debian 9

Storage Slot

CFast slot x 1
SD slots x 1, SD 3.0 (SDHC/SDXC) socket

Computer Interface

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 Connector) x 2

Serial Ports

RS-232/422/485 ports x 2, software selectable (DB9 male)

USB 2.0

USB 2.0 hosts x 2, type-A connectors

Digital Input

DIs x 4

Digital Output

DOs x 4

LED Indicators

System

Power x 1

LAN

2 per port (10/100/1000 Mbps)

Display

Active Display Area

152.4 (H) x 91.44 (V) mm

Contrast Ratio

600:1

Light Intensity (Brightness)

1000 cd/m²

Maximum Number of Colors

16.2M (8-bit/color)

Panel Size

7-inch viewable image

Panel Type

Pixel Pitch (RGB)

0.1905 (H) x 0.1905 (V) mm

Pixels

800 x 480

Response Time

5 ms (gray to gray)

Viewing Angles

140±0/120±0

Touch Function

Touch Type

Capacitive Touch (PCAP)

Touch Support Points

4 points

Glove Support

Yes

Serial Interface

Baud Rate

50 bps to 115.2 kbps

Data Bits

5, 6, 7, 8

Flow Control

RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 1.5, 2

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage

10 to 36 VDC

Power Consumption

40 W (max.)

Physical Characteristics

Housing

Metal

IP Rating

IP66, front ; IP20, rear

Dimensions

200 x 140 x 45 mm (7.9 x 5.5 x 1.8 in)

Weight

1,400 g (3.09 lb)

Environmental Limits

Operating Temperature

-40 to 70°C (-40 to 158°F)

Storage Temperature (package included)

-40 to 70°C (-40 to 158°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV
Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Environmental Testing

IEC 60068-2-1, DNV-CG-0339
IEC 60068-2-2, DNV-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945

Hazardous Locations

ATEX
Class I Division 2
IECEx

Maritime

DNV

Mechanical Protection Rating

IEC 60529, IP code

Safety

EN 60950-1
IEC 60950-1
UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6
IEC 60068-2-6, IEC 60945
IEC 60068-2-64, DNV-CG-0339

Declaration

Green Product

RoHS, CRoHS, WEEE

Note

Note: Please read description carefully. Do not base your order on the picture presented.
