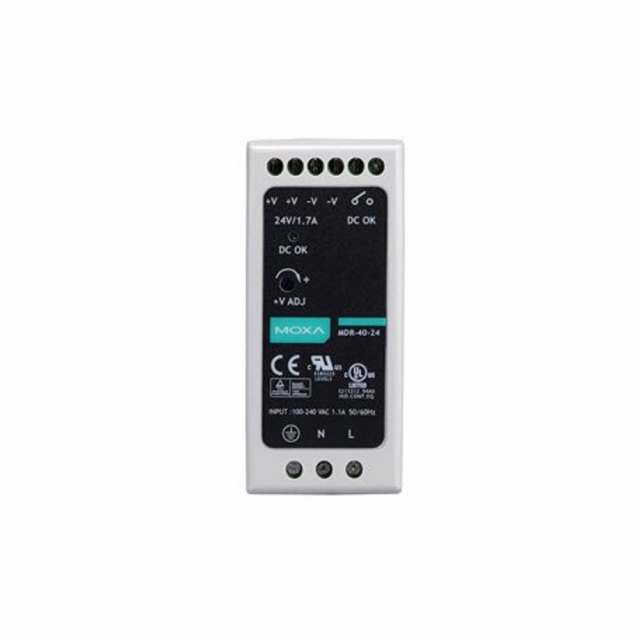

Moxa, MDR-40-24, 40W/1.7A DIN-Rail 24V VDC Power Supply with Universal 85 to 264 VAC

Features:

High inrush current protection
24 VDC power output
-20 to 70°C operating temperature range
85 to 264 VAC or 120 to 370 VDC input

The MDR Power Supply Series supports inrush current protection of 30 A at 115 VAC and 60 A at 230 VAC. The series has an operating temperature range of -20 to 70°C, which ensures suitability for operating in harsh environments. In addition, the MDR Series has passed a 100% full load burn-in test, is UL/CUL listed, TUV/CB certified, and CE marked.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Output Power Parameters

Wattage

40 W

Voltage

24 VDC

Current Rating

0 to 1.7 A

Ripple and Noise

150 mVp-p

Voltage Adjustment Range

24 to 30 VDC

Setup/Rise Time at Full Load

500 ms, 30 ms at 115 VAC
500 ms, 30 ms at 230 VAC

Typical Hold-Up Time at Full Load

20 ms at 115 VAC
50 ms at 230 VAC

Input Power Parameters

Voltage Range

85 to 264 VAC (47 to 63 Hz)
120 to 370 VDC

Typical Efficiency

88%

Typical Current

0.7 A at 230 VAC, 1.1 A at 115 VAC

Typical Current (cold start)

60 A at 230 VAC, 30 A at 115 VAC

Overload Protection

Rated Output Power

105 to 150%

Protection Type

Constant current limiting recovers automatically after the fault condition is removed

Overvoltage Protection

Overvoltage Range

31.2 to 36 V

Protection Type

Shut down the operating voltage, and repower on to recover

Physical Characteristics

Dimensions

40 x 90 x 100 mm (1.57 x 3.54 x 3.94 in)

Weight

260 g (0.57 lb)

Environmental Limits

Operating Temperature

-20 to 70°C (-4 to 158°F)

Maximum Operating Temperature at Full Load

60°C

Ambient Relative Humidity

20 to 90% (non-condensing)

Standards and Certifications

Safety

UL 508
EN 62368-1
IEC 62368-1

EMC

EN 55032/35
EN 61000-3-2 Class A
EN 61000-3-3
EN IEC 61204-3
EN IEC 61000-6-2

EMS

IEC 61000-4-2 ESD: Contact: 6 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Notes
