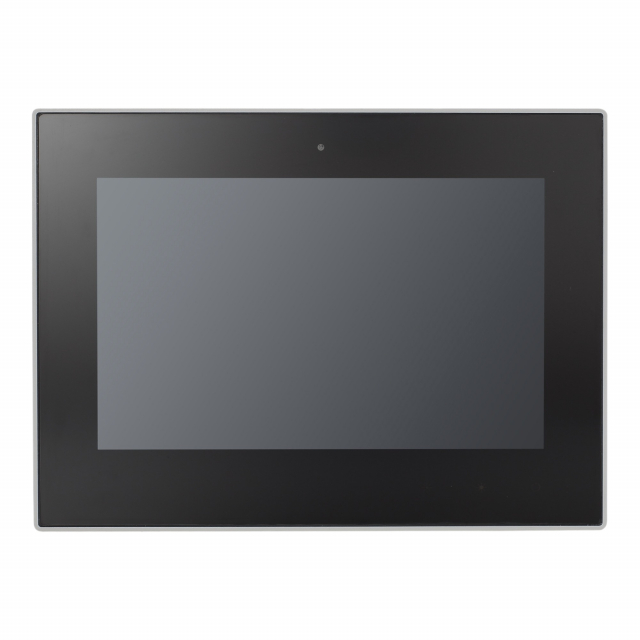

Moxa, EXPC-F2120W-TL7-DC, 12.1" Flat-Panel Fanless Industrial Computer with Intel Core i7-1185G7E Processor, 1200-Nit PCAP Touchscreen, 4 Ethernet Ports, 3 Serial Ports, 1 VGA Port, 1 DisplayPort, 9 to 36 VDC Power Input, IP66 (Front), IP42 (Rear), -40 to 70°C Operating Temperature
Features:
- 12. 1 inch 16:10 display
- High-performance Tiger Lake Intel® Core™ i7/ Core™ i3 or Intel® Celeron® processor
- Built-in light sensor for auto brightness control
- 1200-nit sunlight-readable anti-glare display
- Optical bonding of the display for deploying in harsh environments
- Fanless thermal design for efficient heat dissipation in high-temperature environments
- UL C1D2/C2D2, ATEX, and IECEx ZONE 2/Zone 22 compliant
- Front IP66 and rear IP42 certified
- -40 to 70°C operating temperature range
- Options for 5G and Wi-Fi 6 connections
- Designed for deploying in hazardous locations and for mission-critical applications
Introduction
The EXPC-F2120W Series consists of 12. 1-inch panel computers with 11th Gen Intel Core™ I processor that deliver a reliable, durable, and versatile platform for use in industrial, hazardous, and mission-critical environments. The EXPC-F2120W panel computers come with a rich set of communication interfaces to satisfy all your industrial-application scenarios. The panel computers are also provided with DisplayPort and VGA video outputs for extending the display.
The EXPC-F2120W panel computers come in a fanless design for operations in the -40 to 70°C temperature range and a streamlined enclosure for efficient heat dissipation, making them the most reliable industrial platforms for harsh, hot, outdoor environments such as oil and gas fields, drilling platforms, and power stations, as well as smart heater solutions. The panel computers are also specifically designed with sunlight-readable features such as a 1200-nit LCD panel, projected-capacitive, glove-friendly, multi-touchscreen, optical bonding, and anti-glare design, to provide an excellent user experience for outdoor applications.
