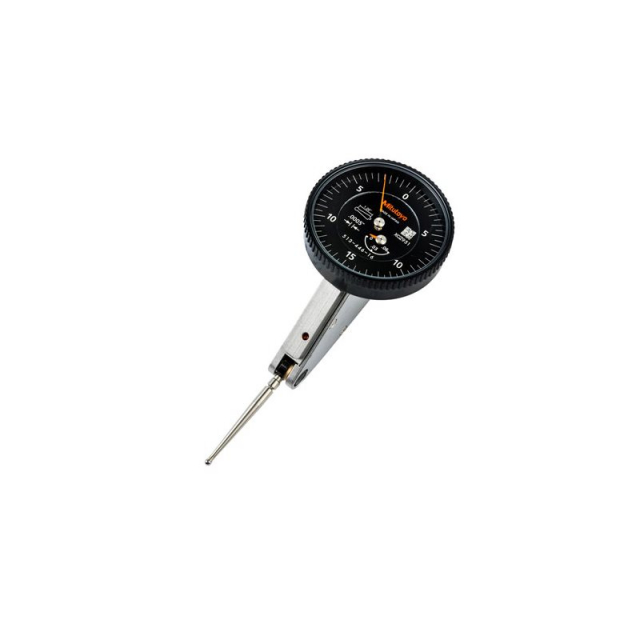

Mitutoyo, 513-446-16T, Series 513 Horizontal Type Dial Test Indicator, 0-0.06", Full Set, Long Stylus, White on Black, 20° Tilted Face
513-446-16T Includes Only:
- A fitted plastic case
- Dial test indicator
- Contact point, Diameter 0.079" Carbide
- Knurled clamp ring
- Stem, Diameter 0.157"
- Stem, Diameter 3/8"
- Contact point, Diameter 0.039", carbide
- Contact point, Diameter 0.118", carbide
- Stem, Diameter 0.157"
- Swivel clamp
- Inch holding bar (L: 4")
Features:

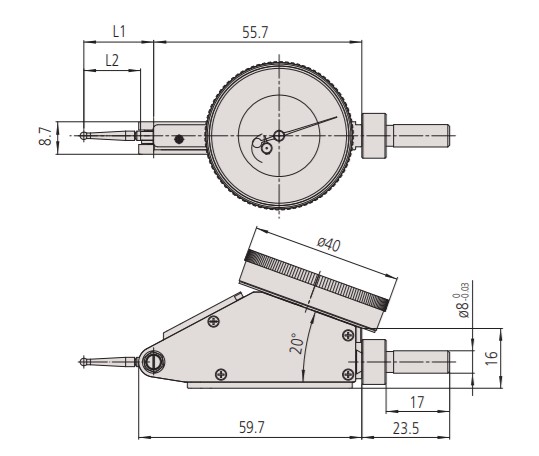

- The horizontal indicator has a 20° tilted face
- The universal holder allows easy hole centering
- Dial face always faces upward when the indicator is rotated for easy reading
- The no-clutch structure provides automatic reversal of measuring direction
- O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
- Contact point length is printed on the dial face to avoid accuracy issues
- Contact point holder prevents backlash
- The contact point is carbide tipped for lasting accuracy, durability
- Crystal is glare-free with a scratch-resistant coating
These specialty dial test indicators have a reversible measuring direction and adjustable contact point making them ideal for measuring surface variations in narrow or recessed areas with high precision. Their one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response.
