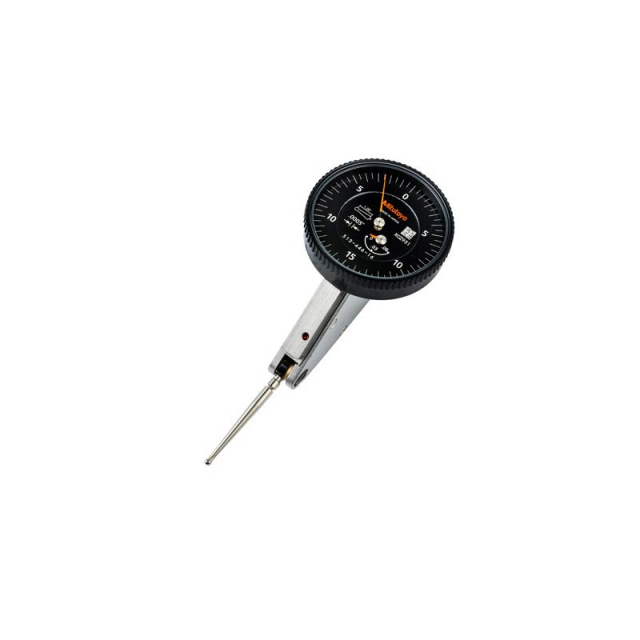

Mitutoyo, 513-442-16A, Series 513 Horizontal Type Dial Test Indicator, 0-0.06", Plus Set, White on Black
513-442-16A Includes Only:
- A fitted plastic case
- Dial test indicator
- Contact point, ø2mm, Carbide
- Knurled clamp ring
- Stem, ø8mm
- Contact point, ø1mm carbide
- Contact point, ø3mm carbide
- Stem, ø4mm
Features:
- The no-clutch structure provides automatic reversal of measuring direction
- O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
- Contact point length is printed on the dial face to avoid accuracy issues
- Designed contact point holder prevents backlash
- The contact point is carbide tipped for lasting accuracy, durability
- Crystal is glare-free with a scratch-resistant coating

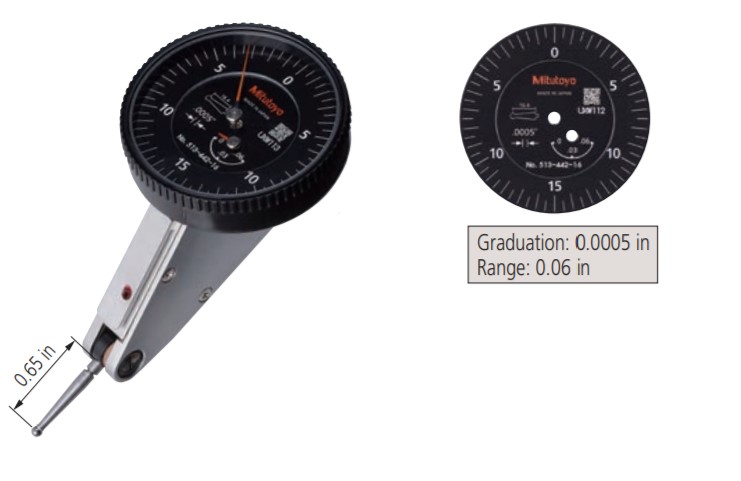

The Mitutoyo horizontal type dial test indicator with reversible measuring direction and adjustable contact point is ideal for measuring surface variations in narrow or recessed areas with high precision. The dial test indicator's one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response. The horizontal face is parallel to the axis of the indicator, and the indicator can be mounted either horizontally or vertically from the front, top or back of the indicator.
