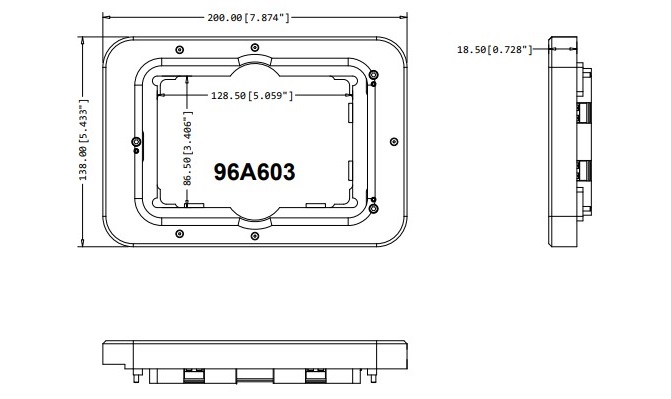

Ludl 96A603 Open Format Piezo Z-Stage for LEP (and Frame K) Holders

Features:

• Fits standard LEP Inverted Stages
• Supports standard multi-well plates

Now more than ever LEP makes the advantages of precision automation easy and convenient. The BioPrecision2 Piezo focus insert features all of the expected performance of a Piezo focus but adds improved compatibility with standard stage accessories including multi-well plate holders, slide holders, perfusion chambers and incubators. The 96A603 Piezo Z-stage is more compact and is compatible with standard LEP inverted stages that feature a standard ("Frame K") opening.

The BioPrecision2 Piezo focus insert is compatible with the LEP MAC 6000 controller and features industry wide support from all popular imaging software applications. Software commands are provided that make the BioPrecision2 Piezo Focus appear as a standard focus drive. Digipot position control is fully integrated for interactive focus control. An entirely the 5 point fl exure design coupled with a proprietary dynamic tuning system ensure the best dynamic response with the highest accuracy and the most reliable stability - even with variable loads.
