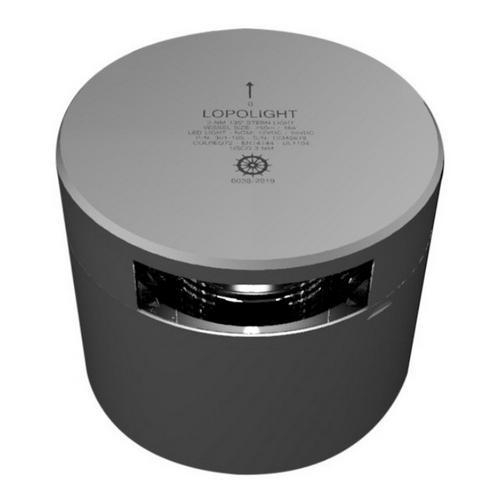

Lopolight, 301-105, Stern Light - 3nm - Silver Housing - Single - Horizontal Mount

301-105 Includes Only:

Features:

LED (Light Emitting Diode) navigation light.
Unique and precise definition of light angles.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED's and electronics.
Completely waterproof and vibration proof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption.
Full brightness with input voltages ranging from 10 to 32 Volts.
Light has been tested several times during production, a total of more than 24 hours.
Easy to install.

For more information, please see Data Sheet

For more information, please see Installation Guide

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Approvals	Worldwide type approval
Materials	Anodized aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply voltage	10-32 VDC
Power consumption	1,7 Watt, Current at 12 VDC: 136 mA: Current at 24 VDC: 77 mA
Light colors	White 135°
Intensity	>15cd
Visibility	(@K=0.8) 3 nautical mile
Number of LED's	1
Suggested feed cables	12 VDC: 2 x 0,50 mm² 24 VDC: 2 x 0,50 mm²
Vessel size	Above 50 meter (164 feet)
Mounting	Horizontal

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Approvals	Worldwide type approval
Materials	Anodized aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply voltage	10-32 VDC
Power consumption	1,7 Watt, Current at 12 VDC: 136 mA: Current at 24 VDC: 77 mA
Light colors	White 135°
Intensity	>15cd
Visibility	(@K=0.8) 3 nautical mile
Number of LED's	1
Suggested feed cables	12 VDC: 2 x 0,50 mm² 24 VDC: 2 x 0,50 mm²
Vessel size	Above 50 meter (164 feet)
Mounting	Horizontal

Note: Please read description carefully. Do not base your order on the picture presented.
