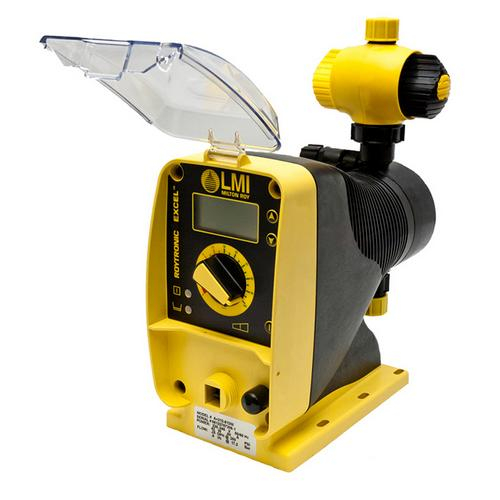

LMI, AD258-937NP, Metering Pump, 1.0 GPH, Dual Manual Control, O-Ring 316SS, 110-120V No Plug
The AD2 series metering pump has a liquid crystal display to indicate pump stroke speed and theoretical flow rate. Applicable for specific chemical pumping application. Control and adjustment for stroke frequency shall be by means of a tactile keypad. Adjustment for stroke length shall be by means of a readily accessible dial knob. A pulse indicator light shall flash green between strokes when pumping. The pump shall be equipped with an on/off button and a low level float switch Input. When the low level sensor registers empty, the low level indicator light shall turn red and the pump shall turn off when it registers an empty level.
AD258-937NP Includes Only:
- Metering Pump
- Foot Valve
- Ceramic Foot Valve Weight
- Injection Check Valve
- Tube Connection Hardware
Features:
- Push button controls
- Manual knob to control stroke length
- LCD user interface
- Dual manual control
- Low level float switch connection
- Durable and lockable clear cover
- Theoretical flow rate display
- NEMA 4X/IP-65 enclosure
- Industrial grade IP-68 external signal/equipment interface
Pump Drawing

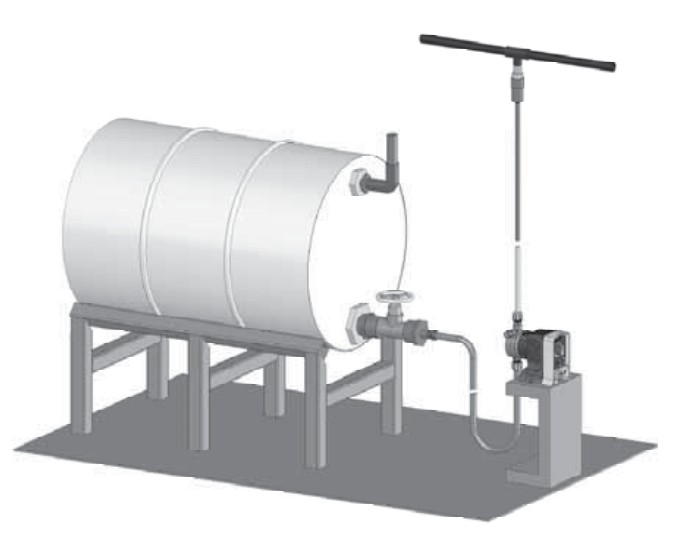

LMI recommends flooded suction installations for all high-viscosity fluid applications.

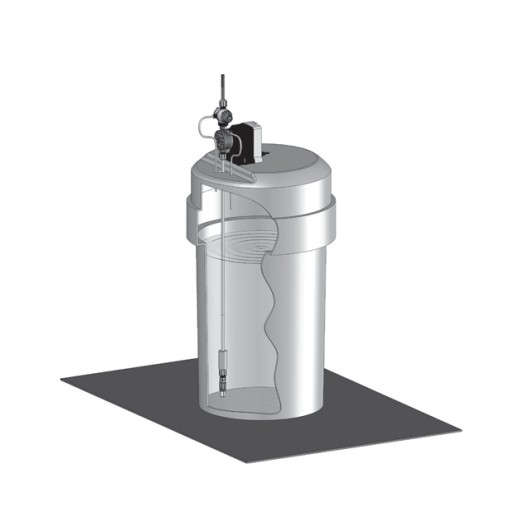

The pump may be mounted maintaining a suction lift of less than 5 ft (1.5 m).
