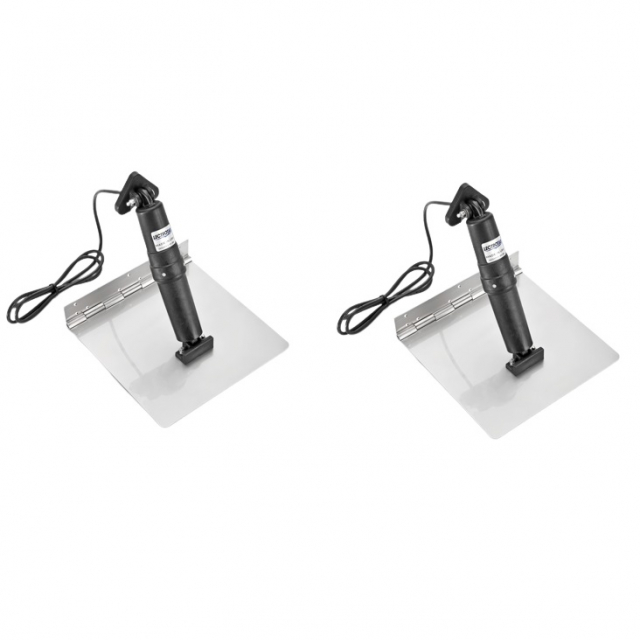

Lectrotab KA12X9 12" x 9" Trim Tab Kit w/ 6' Cable Standard Actuators

Lectrotab, KA12X9, Stainless Steel 12" x 9" Trim Tab Kit with 6' Cable Standard Actuators

KA12X9 Includes Only:

• Standard Actuator with 6' (7m) cable, 12vdc, 2.25" (57mm) stroke, 8 second stroke time
• 12" x 9" Tab Plate

Features:

• A non-hydraulic, electromechanical design that is maintenance-free and requires no hydraulic oil.
• 12 gauge stainless steel with an integrally formed 12 gauge rolled and pinned hinge to strengthen the tab and eliminate spot welds.
• An internal actuator braking design that maintains tab position in rough conditions and when backing down.
• Choice of convenient helm-mounted control switches which provide instant actuator start and stop for very accurate tab positioning.
• A full pivoting upper bracket for maximum installation flexibility.
• A patented ram seal that cannot be fouled by barnacle growth and a patented internal pressurization system for added watertight integrity.
• A complete non-metallic, double-insulated, actuator which cannot corrode and will not deteriorate in the sun or underwater.
• A precision planetary gearbox for quiet and efficient operation.

Lectrotab designs and manufactures premium quality electromechanical trim tab systems for the leisure and commercial marine markets. The Lectrotab system is easy to install on boats or to replace existing trim tabs.
