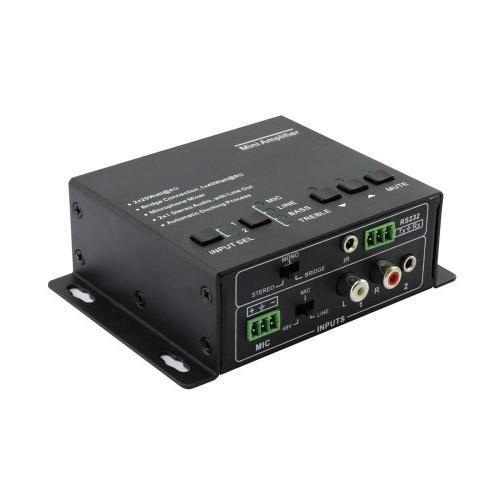

KanexPro AP2DBL Mini Audio Amplifier with Microphone Mixer

The KanexPro Mini Audio Amplifier is a quarter-rack width digital amplifier (Class D) with equalizer control and Mic mixer. It's a simple yet powerful device delivering 2x20 Watts 4Ohm default output with built-in volume/ bass feature. It also supports dual mono-output with 2 stereo audio selectable inputs. The Microphone mixer includes independent volume control with balance switching. Supports balanced/ unbalanced signals. This Mini Audio Amplifier is mainly used during lectures, house of worship centers and various musical events where mic mixing together with equalizing audio is critical.

Features:

• Fast switching audio amplifier
• 2x20 Watt at4Ohm as the default amplifier output
• Bridge connection supported by switching the amplifier to be 1x40Watt at8Ohm
• Supports Dual-mono output
• Built-in Microphone mixer (separately controllable)
• Line audio output, with volume controllable.
• MIC input supports 48V phantom power
• MIC port with balanced switching suppress
• Supports balanced/ unbalanced signals
• Supports Ducking power technology
• Ultra-low inrush current
• Two stereo audio inputs, switchable by button, remote or RS232.
• Volume/Bass/Treble controllable by buttons or RS232
• Optional control by IR remote
• Convection cooled, antistatic case design
• LED indicator, for power and operating status
• Internal Universal power adaptable (100-240 volt AC, 50/60Hz)
