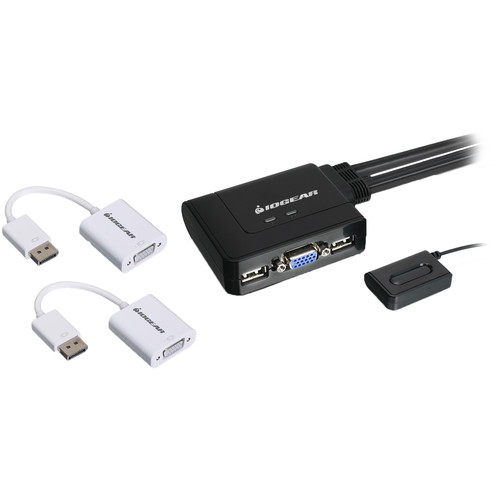

GCS22DPKIT Includes Only:
- IOGEAR 2-Port VGA and DisplayPort KVM Switch Kit
- IOGEAR 2-Port USB KVM Switch
- 2 x DisplayPort to VGA Adapters
With the 2-Port VGA and DisplayPort KVM Switch Kit from IOGEAR, you can control two computers from a single monitor, mouse, and keyboard workstation. With no software or external power needed, setup and operation are designed to be easy. To create your workstation where you will control your two computers, just plug in a VGA monitor, USB Type-A mouse, and USB Type-A keyboard (all not included), into the corresponding female ports on the switch. Extending out from the switch is two sets of KVM cables. Each set consists of two USB Type-A male cables and a VGA male cable. Each set connects to a computer you want to control. Two VGA-to-DisplayPort adapters are included so you can utilize this switch on computers that have DisplayPorts instead of VGA ports. Once everything is connected, the display and controls for each computer can easily be switched with the push of a button.
Features:
- Compliant with DisplayPort specification 1.1a for both 1.62 Gb/s and 2.7 Gb/s
- Supports full DisplayPort link tracking
- Supports Full HD 1920 x 1080 video resolution
- Supports VGA, SVGA, XGA, SXGA, and UXGA at 162 MHz pixel rate
- Supports interrupt request output for expansion function
- Supports Deep Sleep mode (suspend mode)
- Mix and Match VGA and DisplayPort connections
- Maximum resolution of 2048 x 1536 (DDC2B)
- Each set of molded-in KVM cables are 4' long
- Compatible with PC, Mac, and SUN platforms
- Supports Windows 7 or higher, Mac OS 9.0 or higher, and Sun Solaris 9 or higher
- Full Mac keyboard support
- Supports programmable mice
- All cables are included, you just need to supply the monitor, mouse, keyboard, and two compatible computers
