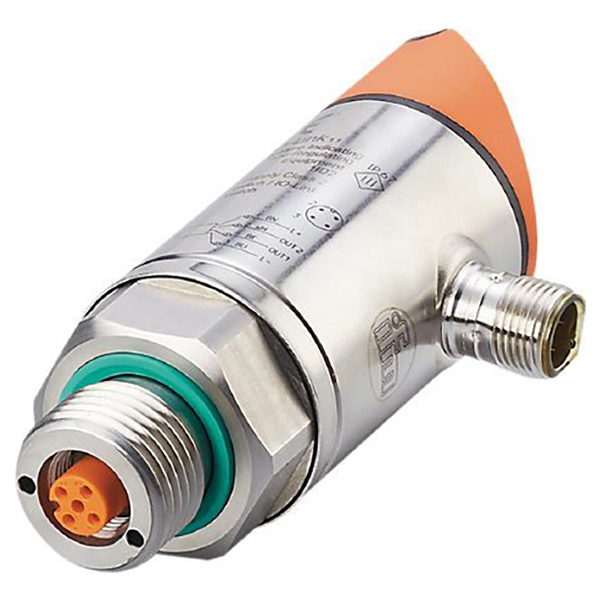

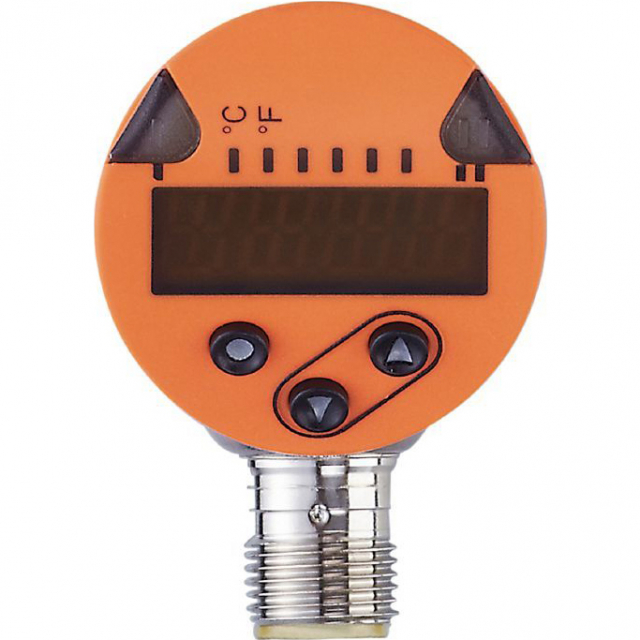

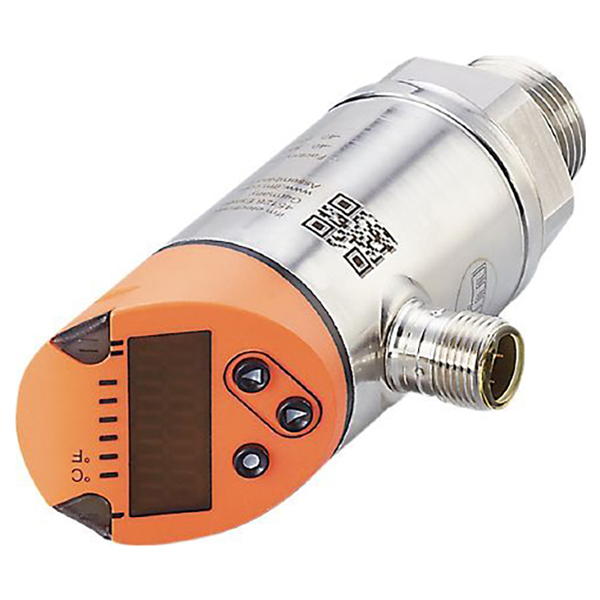

| Product Characteristics |
| Number of Inputs and Outputs | - Number of Digital Outputs: 1
- Number of Analog Outputs: 1
|
| Communication Interface | IO-Link |
| Process Connection | Threaded connection G 1/2 external thread |
| System | Gold-plated contacts |
| Application | For Pt100 and Pt1000 Measuring Elements |
| Electrical Data |
| Operating Voltage [V] | 18 - 32 DC; (cULus - Class 2 source required) |
| Current Consumption [mA] | < 50 |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay Time [s] | 1 |
| Integrated Watchdog | Yes |
| Inputs / Outputs |
| Number of Inputs and Outputs | - Number of Digital Outputs: 1
- Number of Analog Outputs: 1
|
| Outputs |
| Total Number of Outputs | 2 |
| Output Signal | Switching signal; analog signal; IO-Link; (configurable) |
| Electrical Design | PNP/NPN |
| Number of Digital Outputs | 1 |
| Output Function | Normally open / closed; (configurable) |
| Maximum Voltage Drop Switching Output DC [V] | 2.5 |
| Permanent Current Rating of Switching Output DC [mA] | 250 |
| Number of Analog Outputs | 1 |
| Analog Current Output [mA] | 4 - 20 |
| Maximum Load [Ω ] | 500 |
| Analog Voltage Output [V] | 0 - 10 |
| Minimum Load Resistance [Ω ] | 2000 |
| Short-Circuit Protection | Yes |
| Type of Short-Circuit Protection | Yes (non-latching) |
| Overload Protection | Yes |
| Measuring/Setting Range |
| Factory Setting | -40 - 300 ° C / -40 - 572 ° F |
| Resolution |
| Resolution of switching output [K] | 0.1 |
| Resolution of Analog Output [K] | Current output: MS / 4096; voltage output: MS / 3561 |
| Resolution of display [K] | 0.1 |
| Accuracy / Deviations |
| Switch point accuracy [K] | ± 0,3 + (± 0,1 % MS) |
| Precision analog output [K] | ± 0,3 + (± 0,1 % MS) |
| Display accuracy [K] | ± 0,3 + (± 0,1 % MS) |
| Temperature coefficient [% of the span / 10 K] | 0,1; (In case of deviation from the reference condition 25 ± 5 ° C) |
| Reaction Times |
| Response Time [ms] | 390 |
| Maximum Response Time Analog Output [ms] | 390 |
| Software / Programming |
| Parameter Setting | Hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display Unit; current/voltage output |
| Interfaces |
| Communication Interface | IO-Link |
| Transmission Type | COM2 (38,4 kBaud) |
| IO-Link Revision | 1.1 |
| Operating Conditions |
| Ambient Temperature [° C] | -25 - 80 |
| Storage Temperature [° C] | -40 - 100 |
| Protection | IP 67 |
| MTTF [Years] | 233 |
| Mechanical Data |
| Weight [g] | 200 |
| Material | Stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PBT+PC-GF30; PBT-GF20; PC |
| Process Connection | Threaded connection G 1/2 external thread |
| Electrical Connection |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
