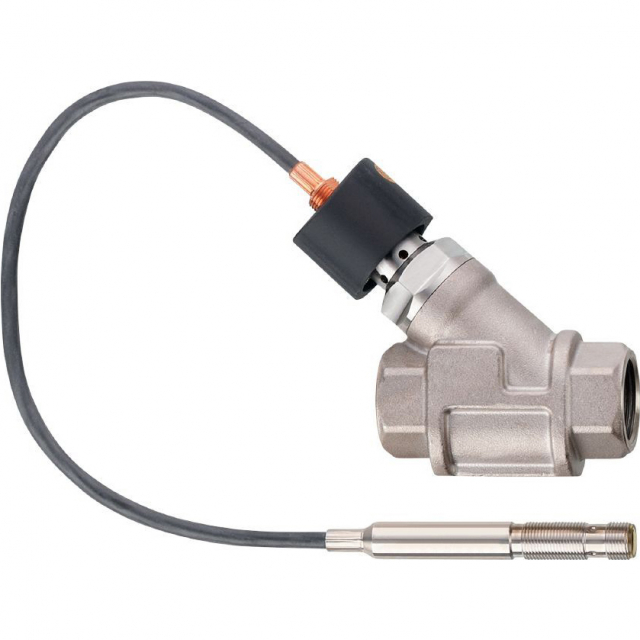

Save 7% each on IFM SBT646 2 - 100 l/min Flow Transmitter with Fast Response Time when you purchase 200 or more
Buy 100 pcs, get 5% off
Save 5% each on IFM SBT646 2 - 100 l/min Flow Transmitter with Fast Response Time when you purchase 100 or more
Buy 50 pcs, get 3% off
Save 3% each on IFM SBT646 2 - 100 l/min Flow Transmitter with Fast Response Time when you purchase 50 or more
Buy 25 pcs, get 1% off
Save 1% each on IFM SBT646 2 - 100 l/min Flow Transmitter with Fast Response Time when you purchase 25 or more
Options and Related Products
Features:

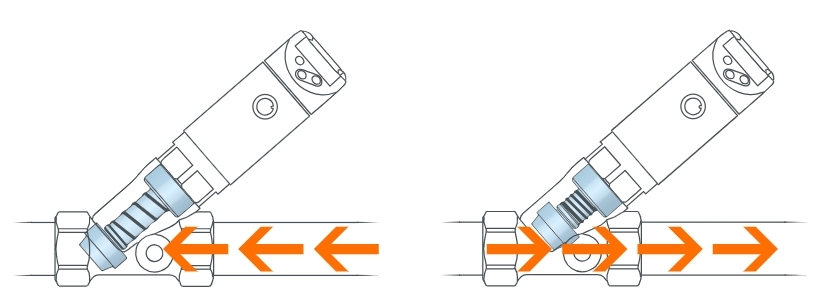

The SB mechatronic flow meter works on the principle of a spring-supported piston. Flowing liquids lift the piston and the position of the piston is monitored by a magnetic sensor. The spring forces the piston to its original position with decreasing flow and the built-in check valve prevents backflow.
This design means the meter can be installed without regard to inlet/outlet piping requirements. Because a magnetic sensor is detecting the piston position, the response time is ≤ 10 msec. Since the flow is typically relatively stable, there is very little flexing of the spring. The meter has been successfully tested to 10 million cycles without any detectable wear.
For more information, please see Data Sheet
