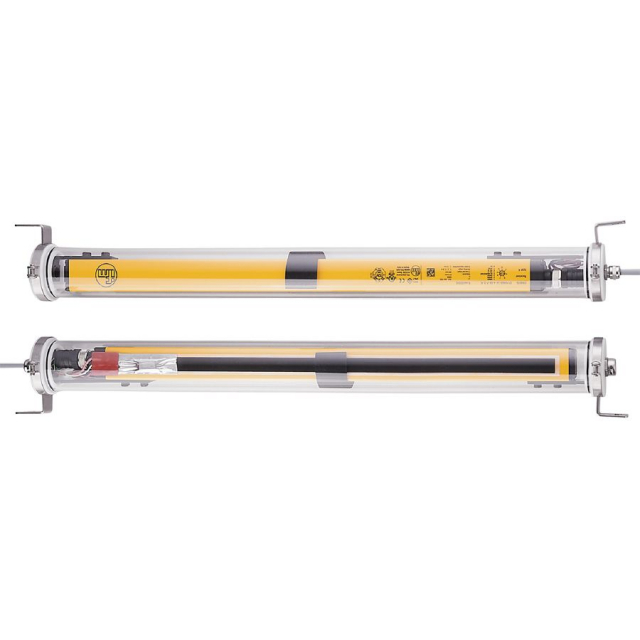

IFM OY446S Safety Light Curtain wiith 910mm Protected Area Height

Protected Area Height (mm): 910
  • Brand IFM
  • Part # OY446S
  • Model # OYA0910-30-4-15-P-1-A
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Protected Area Height (mm):
Protected Area Height (mm): 910

Features:

  • High protection rating for the food and beverage industry
  • Integrated protective tube for steam and high pressure cleaning resisitance
  • Reliable protection of hazardous areas
  • Complies with the requirements of type 4 to IEC 61496
  • Short and long range selectable via wiring

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Product Characteristics
Type of LightInfrared light
Electrical DesignPNP
ProtectionIP 65; IP 67; IP 69K; (with protective tube: IP 69K)
Protective FunctionAccess prevention hand protection
Electrical Data
Operating Voltage Tolerance [%]20
Operating Voltage [V]24 DC
Protection ClassIII
Reverse Polarity ProtectionYes
Power-on Delay Time [s]<2
Type of LightInfrared light
Wave Length [nm]950
Receiver
Current Consumption [mA]83
Current consumption heating [mA]417
Transmitter
Current Consumption [mA]42
Current consumption heating [mA]417
Outputs
Electrical DesignPNP
Number of OSSD Outputs2
Maximum Current Load per OSSD Output [mA]400; (24 V)
Short-Circuit ProtectionYes
Monitoring Range
Protected Area Height [mm]910
Resolution (Detection Capacity d) [mm]30
Protection Area Width (Low Light Intensity) [m]0 - 7
Protection Area Width (High Light Intensity) [m]3 - 15
Reaction Times
Response Time [ms]7.5
Operating Conditions
Ambient Temperature [°C]-20 - 55
Maximum Relative Air Humidity [%]95
ProtectionIP 65; IP 67; IP 69K; (with protective tube: IP 69K)
Safety Classification
ESPE Type (IEC 61496-1)4
MIssion Time TM [h]175200
PFH [1/h]1,5E-08
Mechanical Data
Weight [g]5820
Dimensions [mm]1087 x 76 x 74
MaterialProtective tube: PMMA transparent; Protective cap: POM; clamp: stainless steel (1.4404 / 316L); sealing: silicone
Length L [mm]1087
Electrical Connection - Receiver
ConnectionCable: 15 m, PVC; Maximum cable length: 100 m; 10 x 0.34 mm²
Electrical Connection - Transmitter
ConnectionCable: 15 m, PVC; 8 x 0.34 mm²
Notes
