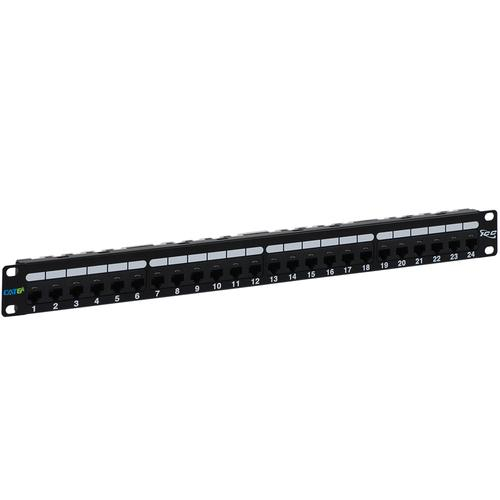

ICC ICMPP0246B CAT6A Patch Panel in 110 Type with 24 Ports and 1 RMS

ICC`s Category 6A 24-Port 110-Type 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-Type IDC on the rear is designed to provide optimum permanent and channel link performance and reduces potential Alien Crosstalk (ANXT). The jacks are grouped in six-port modules for quick administration and labeling. All of the modular contacts are 50 gold plated to protect from corrosion. The high-density design occupies 1 rack mount space (RMS) and measures 19" width x 1.75" height.

Features:

• Vertical 110-Type IDC connections reduce potential Alien Crosstalk (ANXT)
• Enhanced crosstalk cancellation and reduced return loss for high bandwidth network requirements
• Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware component rating requirements
• 110-Type IDC termination helps reduce installation time and improve wire retention
• 50µ gold plating on all modular contacts to protect from corrosion
• Mounts on industry standard 19" wide racks or equipment
• 1 rack mount space (RMS)
• Meets TIA/EIA-568-C.2 Cat 6A connecting hardware requirements
• UL Listed
