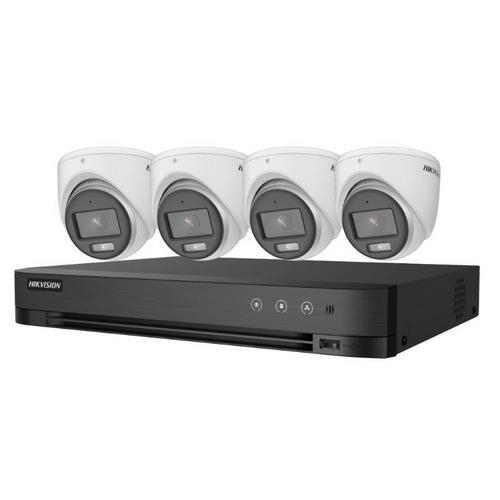

| Camera - DS-2CE70KF0T-MFS |
|---|
| Image Sensor | 5MP CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) x 1665 (V) |
| Frame Rate | TVI: 5MP @20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps; AHD: 5 MP@20fps, 4 MP@25fps/30fps; CVI: 4 MP@25fps/30fps; CVBS: PAL/NTSC |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed focal lens |
| Field of View | 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° |
| Lens Mount | M12 |
| Light Alarm | Solid Light Alarm (White Light) |
| Day & Night | 24/7 Color Imaging |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Color |
| White Balance | Auto/Outdoor/Global/Manual |
| AE (Auto Exposure) Mode | DWDR,BLC,HLC,Global,HLS |
| Noise Reduction | 2D DNR |
| Language | English |
| Function | Brightness,Contrast,Mirror,Defective Pixel Correction,Sharpness,Anti-Banding,Smart Light |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Audio In | Built-in mic |
| Operating Conditions | 40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, |
| Consumption | IP67 |
| Protection Level | Yes |
| Material | Metal |
| White Light Range | Up to 20 m |
| Communication | HIKVISION-C |
| Dimension | 85.1 mm x 77.62 mm (3.35" x 3.05") |
| Weight | Approx. 328 g (0.72 lb.) |
| iDS-7204HUHI-M1/S |
|---|
| Motion Detection 2.0 Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection Human/Vehicle Analysis | Up to 4-ch |
| IP Video Input | 2-ch (up to 6-ch); Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps |
| Analog Video Input | 4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| HDMI Output | 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| HDTVI Input | 8 MP@15 fps, 5 MP@20 fps, 3K@20fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD Input | 5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI Input | 5 MP@20 fps , 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, independent) |
| Synchronous Playback | 4-ch |
| Dual-Stream | Support |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Encoding Resolution | Main stream: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4; Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Remote Connection | 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| SATA | 1 SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Serial Interface | RS-485 (full-duplex), Keyboard |
| USB Interface | Front panel: 1 x USB 2.0, Rear panel: 1 x USB 2.0 |
| Alarm In/Out | N/A (optional to support) |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (witdout HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W x D x H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤ 1.16 kg (witdout HDD, 2.6 lb.) |
