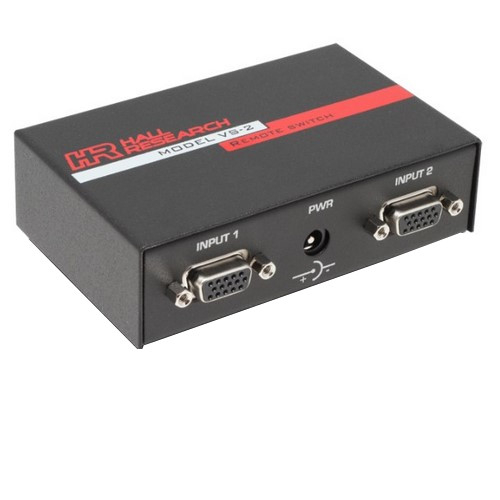

Hall Research VS-2 2 Channel Video Switch

  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

The Model VS-2 is a versatile, compact, high performance, solid-state, 2 input x 1 output, VGA video switch that can operate at resolutions of up to 1600x1200. The unit allows one monitor to be switched between two video sources.

Features:

  • Allows one monitor to be switched between two video sources
  • Can be controlled manually, via Serial port , or from TTL level (or contact closure)
  • Select input 1, input 2, or blank the output
  • Auto mode automatically scans and selects the input with active video
  • Infinite switching cycle life
  • Can drive long cables
  • Terminates both video input signals and buffers the output to protect signal integrity
  • Includes pushbutton and serial cables for control
Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for Hall Research items must be submitted within 14 days after the delivery date.

Technical Details

Reviews
Equipment IncludedUL approved 110 Vac adapter (6 Vdc at 300 ma output on 2.5mm center positive coaxial plug). 6 ft, Serial Control Cable 6 ft, Pushbutton Switch Cable
Video SpecsBandwidth: 250 MHz
Input impedance:Video: 75 ohms on RGB, 330 ohms on H,V
Coupling: DC
Signal Level: Video: 0 to 0.7 v p-p
Sync.: TTL
MTBF90,000 hrs (Calculated)
Product Details
Equipment IncludedUL approved 110 Vac adapter (6 Vdc at 300 ma output on 2.5mm center positive coaxial plug). 6 ft, Serial Control Cable 6 ft, Pushbutton Switch Cable
Video SpecsBandwidth: 250 MHz
Input impedance:Video: 75 ohms on RGB, 330 ohms on H,V
Coupling: DC
Signal Level: Video: 0 to 0.7 v p-p
Sync.: TTL
MTBF90,000 hrs (Calculated)
