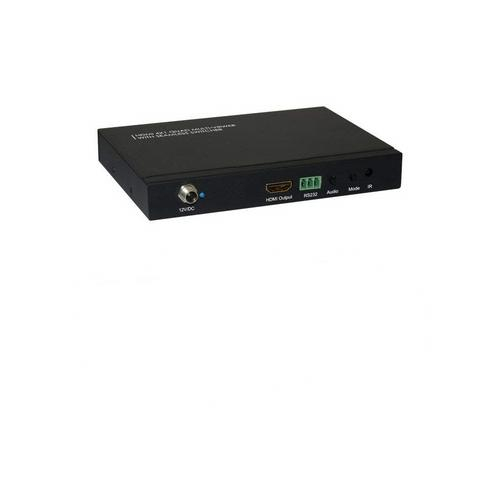

GCIG 61035 Quad Multi-Viewer 4x1 HDMI Switch, 4 Input HDMI 1 Output, (Pack of 5 pcs)

This HDMI 4X1 Switch is a high performance 4 by 1 Quad Multi-Viewer with the seamless switcher. It supports four HDMI input sources to be displayed on one screen with five multiview modes. As a switcher, it can also seamlessly switch the four HDMI input freely.The product can be controlled in various ways, through the front panel buttons, IR, RS232 control etc.

Features:

• Compliant with HDMI 1.3a, HDCP 1.2
• Support multi-output resolution
• Support scaler up, scaler down function
• Support button, IR control, RS232 control
• Supports multiplexed HDMI 4-input and 1-output
• Supports up to 1080p60 High Definition resolution
• Support 4 by 1 Quad Multi-viewer and seamless switch(with the same resolution)

Connection and Operation:

• Connect the signal sources such as Blu-Ray Player, Play Station 3, audio/video receiver, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Switcherinputs.
• Connect the HDMI output of the HDMI Switcher to a high-definition display device such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces with an HDMI cable to HDMI Switcher output.
• The Switcher is powered by an external power supply which is included.Connect power first to the source, then to the Switcher and then to HD TV or projector.
• The input source can be controlled from the display. The switcher has a capability of being controlled via the Front push button, Remote control or RS232 Control.

Includes Only:

• Main unit x1
• User Manual x1
• Remote control x1
• 100 - 240V, 50/60Hz, 12V/DC, 2A Power Supply x1
