FW Murphy, 78700186, PVA20-J-100-EB 2" Percent Fuel Level Gage, 100% Load@Current RPM, Contemporary Domed, Black
Features:
- For modern electronic engines and equipment applications using SAE J1939Controller Area Network
- Drives standard electric gauges
- User-configurable compatibility with Murphy, VDO, or Datcon gauges
- Engine fault LED option
As part of the MurphyLink® family, CANdrive offers a cost-effective instrument solution for modern electronic engines. CANdrive modules read engine ECUCANbus/J1939 data, drive standard electric panel gauges, and provide LED indication of status and faults. CANdrive has three dedicated outputs for tachometer, oil pressure, and coolant temperature gauges, with DIPswitch-selectable compatibility for Murphy, VDO, or Datcon gauges. For volume orders, the outputs can be custom-configured for other gauge types, lamps, relays, or remote signaling.CANdrive advantages include the retrofitting of existing electric gauge panels to J1939 compatible engines the use of standard, economical electric gauges with J1939 engines no need for installation of additional gauge senders, tachometermagnetic pickups, and wiring.CANdrive is packaged in a compact, surface-mounted case with epoxy encapsulation for maximum durability and environmental sealing. The electrical connection is via a 12-way automotive-type connector. Model CDV100F has a forward-facing connector and one power/CAN status LED, a 6-way DIP switch for flexible configuration.

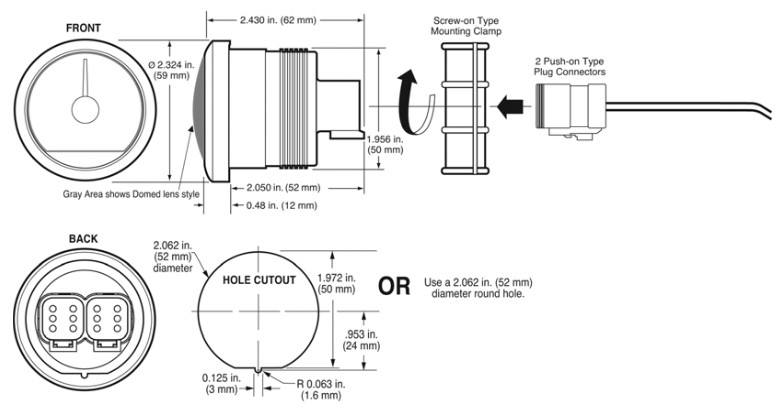

Dimensions
