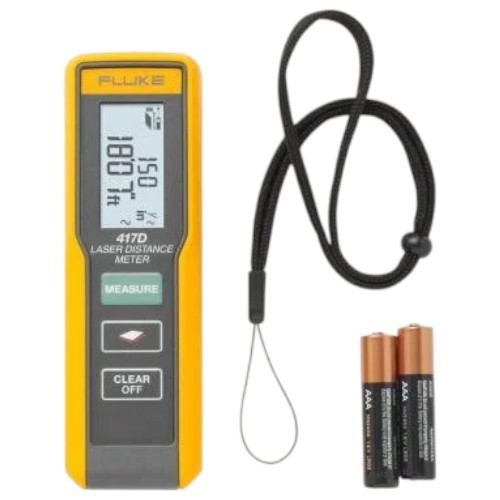

FLUKE-417D Includes Only:

Laser Distance Measurer (Meter)
Two AAA batteriesUsers manual (17 languages)
Quick reference guideLanyard

Features:

The Fluke 417D laser meter is accurate, durable, and easy to use-just point and shoot
Instantly measure up to 40 m (131 ft.) with 1-button point-and-click
Continuous measurement capable: adjusting as you move closer and farther from your target
Quickly calculate area (sq feet/meters)
1-meter drop tested and IP54 rated: built to withstand rainy or dusty conditions
Great for interior and exterior applications

The Fluke 417D is accurate, durable, and easy to use - just point and shoot. The simple design and easy, one-button measurement operation allow you to minimize time spent measuring and maximize the reliability of measurements.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Typical Range

0.6 to 131' (0.2 to 40 m)

Typical Measuring Tolerance

±0.06" (2.0 mm ± 1.5 mm)

Maximum Measuring Tolerance

±0.12" (3.0 mm)

Accuracy up to 10 m (±)

±2 mm

Display

2 line/1 mm/1/32"

Laser Point at Distance

6/30/60 mm (10/40/100 m)

Units Setting, (Smallest Units Displayed)

0,000 m, 0' 00" 1/32, 0" 1/32

Auto Laser Switch Off

90 sec

Auto Power Switch Off

180 sec

Laser

Class: II
Type: 635 nm, <1 mW

Protection Class

IP54

Battery

Type: 2 x AAA 1.5 V NEDA 24A/IEC LR03
Life: Up to 3000 measurements

Drop Test

3.28' (1 m)

Temperature Range

Storage: -13 to 158°F (-25 to 70°C)
Operating: 14 to 122°F (-10 to 50°C)

Maximum Relative Humidity

85% at 20 to 120°F (-7 to 50°C)

Safety

CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)

EMC

61326-1:2006

Dimensions

4.68 x 1.49 x 1.02" (11.9 x 3.8 x 2.6 cm)

Weight

3.35 oz (95 g)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Typical Range

0.6 to 131' (0.2 to 40 m)

Typical Measuring Tolerance

±0.06" (2.0 mm ± 1.5 mm)

Maximum Measuring Tolerance

±0.12" (3.0 mm)

Accuracy up to 10 m (±)

±2 mm

Display

2 line/1 mm/1/32"

Laser Point at Distance

6/30/60 mm (10/40/100 m)

Units Setting, (Smallest Units Displayed)

0,000 m, 0' 00" 1/32, 0" 1/32

Auto Laser Switch Off

90 sec

Auto Power Switch Off

180 sec

Laser

Class: II
Type: 635 nm, <1 mW

Protection Class

IP54

Battery

Type: 2 x AAA 1.5 V NEDA 24A/IEC LR03
Life: Up to 3000 measurements

Drop Test

3.28' (1 m)

Temperature Range

Storage: -13 to 158°F (-25 to 70°C)
Operating: 14 to 122°F (-10 to 50°C)

Maximum Relative Humidity

85% at 20 to 120°F (-7 to 50°C)

Safety

CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)

EMC

61326-1:2006

Dimensions

4.68 x 1.49 x 1.02" (11.9 x 3.8 x 2.6 cm)

Weight

3.35 oz (95 g)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
