Options and Related Products

Size (inch):: Size (inch): 18 x 16 x 10
Base Type:: Base Type: SS Lockable Latch

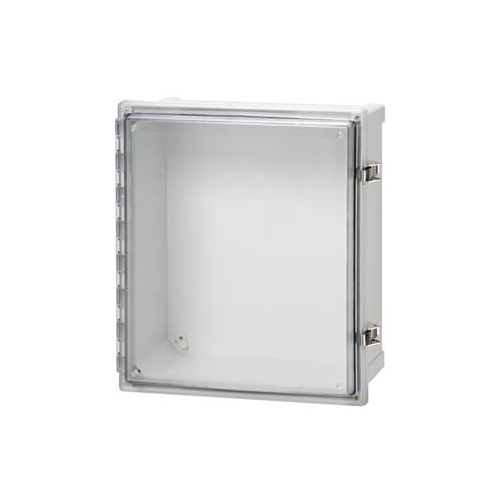

ARCA Enclosure, SS Lockable Latch, 18 x 16 x 10 inch.

AR181610CHSSLT Includes Only:

Electrical Enclosure, Hinged Clear Cover, with S.S. Lockable latch
Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin
Quick release latches
Enclosure mounting foot kit
Accessory 10-32 screws for panel mounting

Features:

Hinged transparent cover w/S.S. Lockable latch
The ARCA - JIC (Joint Industrial Council) hinged polycarbonate enclosure series is UL listed and rated NEMA (National Electrical Manufacturers Association) type 4X
Therefore, the NEMA 4X and 6P ratings ensure protection from the ingress of windblown dust, water, snow, and debris.
Made in America

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions (HxWxD-inch)	18 x 16 x 10
Material	Polycarbonate
Base colour	RAL 7035 -light gray
Cover colour	Transparent
Gasket material	Polyurethane
Temperature °C (short term)	-40-140
Temperature °C (continuous)	-40-80
Temperature °F (short term)	-40-250
Temperature °F (continuous)	-40-175
Ingress Protection (EN 60529)	IP66; IP67;
Impact Resistance (EN 62262)	IK09;
Electrical insulation	Not insulated
Halogen free (DIN/VDE 0472, Part 815)	1
UV resistance	UL 508
Flammability Rating	UL 508
Glow Wire Test (IEC 60695)	960 °C
NEMA Class	NEMA 4, 4X, 6, 6P, 12, 12K and 13

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions (HxWxD-inch)	18 x 16 x 10
Material	Polycarbonate
Base colour	RAL 7035 -light gray
Cover colour	Transparent
Gasket material	Polyurethane
Temperature °C (short term)	-40-140
Temperature °C (continuous)	-40-80
Temperature °F (short term)	-40-250
Temperature °F (continuous)	-40-175
Ingress Protection (EN 60529)	IP66; IP67;
Impact Resistance (EN 62262)	IK09;
Electrical insulation	Not insulated
Halogen free (DIN/VDE 0472, Part 815)	1
UV resistance	UL 508
Flammability Rating	UL 508
Glow Wire Test (IEC 60695)	960 °C
NEMA Class	NEMA 4, 4X, 6, 6P, 12, 12K and 13

Note: Please read description carefully. Do not base your order on the picture presented.
