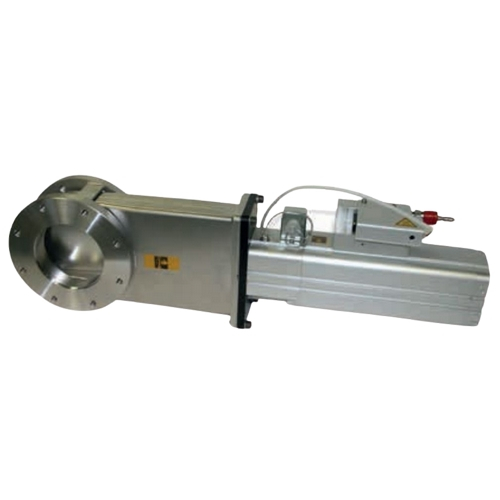

Edwards Vacuum, B90002010, BGV Loto Manual Gate Valve with NW50 Connection Flange, 24V AC/DC
Features:
- Loto valve can be locked securely closed
- Providing a safe working environment during maintenance
- Low power actuation at just 1 W
- Direct connection to Edwards's latest generation dry pump
- Able to withstand 1.2 bar absolute in either direction
- Allowing the pump to continue running during maintenance
- Pneumatic solenoid and pre-wired option
- Pre-configured simple ‘plug and play installation
- Stainless steel construction and robust design
- Long service life and reliability in harsh environments
- Simple grease-free sealing mechanism
- Minimises damage due to particulates in the dusty process
BGV LOTO gate valves are bellows sealed stainless steel gate valves for use in applications that require high leak tightness and a minimum of hydrocarbons in the vacuum system. Although principally designed for the isolation of pumps in the semiconductor fab basement, BGV valves are also ideal for other applications where a 1 bar differential at opening is desirable.
The unique Lock-Out-Tag-Out (LOTO) safety mechanism allows personnel to freely work on the vacuum system without fear of the valve inadvertently opening. The valve is physically held closed using a pin to lock the valve shut preventing it from being opened. If there is a requirement for the valve to be locked shut, a lockout hasp can be inserted through the LOTO pin and padlocked.They are designed for use in the pressure range of 1.2 bar absolute to 1 x 10-9 mbar (1.2 x 105 to 1 x 10-7 Pa). BGV valves will withstand 1.2 bar absolute in either direction allowing the vacuum line above the pump to be vented with the valve closed.
The low power actuation requirement at just 1 W enables direct connection to Edwards latest generation dry pumps range without any additional external power supply, and facilitates ‘plug and play' simple installation. Reed switches can be used by your control equipment to determine if the valve is open or closed, these also contain LEDs to provide a visual display of the valve position. Each valve is fitted with a 24 V a.c./d.c. solenoid and pre-wired plug for direct connection to your Edwards latest generation vacuum pump. This 15-way "D" plug offers a single point of connection for both power to the solenoid and the signal from the reed switch position indicators.
