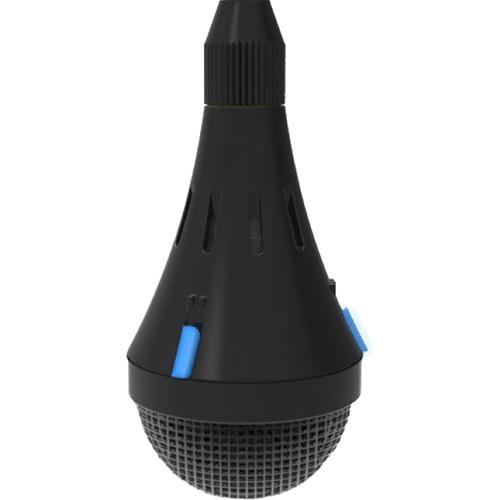

Buy ClearOne 930-6200-103-B-D, Ceiling Microphone Array Dante 1 Array

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

930-6200-103-B-D Includes Only:

ClearOne Ceiling Microphone Array Dante Bundle (1 Array, 3 Channel, Black)
Mic Capsule
Dante Junction Box
Dante Interface Box

Features:

Full 360-degree coverage
LED indicators for On/Mute
Daisy-chain up to 4 mic arrays, 12 channels for one combined system
Optimized for speech-intelligibility with full audio bandwidth and highest SNR
100% shielding against RF interference
Numbered microphone elements for easy identification
Height easily adjustable from 0 feet to 7 feet
Sleek, unobtrusive design
Works with ClearOne and other 3rd party DSP mixers

Applications:

Boardrooms
Conference Rooms
Huddle Rooms
Training Rooms
Lecture Halls
Courtrooms
Telemedicine Facilities

The black ClearOne Ceiling Microphone Array Dante Bundle is a 3-channel array, which includes 1 microphone capsule, 1 Dante junction box, and a single Dante interface box that combine to create an advanced ceiling microphone array for audio, video, or web conferencing as well as sound reinforcement applications. The built-in Dante audio networking interface supports daisy-chain options, making it well suited for boardrooms, conference rooms, training rooms, lecture halls, courtrooms, and telemedicine theatres. The advanced tri-element of each microphone capsule provides up to 360° of coverage and is optimized for speech-intelligibility. The 3-channel array works with ClearOne and other 3rd party DSP mixers. The system offers 100% shielding from RF interference and is easily height-adjustable from 0 to 7'.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Acoustic Characteristics
Element	Condenser (Electret)
Polar Pattern	3 x 120° Cardioid Patterns, Covering 360°
Signal/Noise Ratio	74 dBA at 1 kHz
Frequency Response	70 Hz to 20 kHz
Sensitivity	-37 dB at 1 kHz (0 dB = 1 V / Pa)
Max Sound Pressure Level	120 dB SPL
RF Immunity	100% Immunity, Fully Balanced Twisted Pair Throughout
Power and Thermal
Power Type	PoE
Port Type	RJ-45
Power Source	PoE power injector, PoE Ethernet Network Switch
PoE In	IEEE 802.3af CLASS III, Mode A or B Modes, A and B Refer to Whether Power Can Be Supplied over Data Pairs in the Cat 5 cable. Mode A Means Power Can Be Supplied by either Spare or Data Pairs, and Mode B Means Power Can Only Be Supplied by Spare Pairs
Mains Voltage	100-240 VAC, 50/60 Hz
Impedance	200 Ohms
Power Consumption	8.5 W Typical with 4 Mic Capsules
Operating Temperature	41 to 104°F / 5 to 40°C
Cables
Junction to Interface/Junction Box	RJ45 Cat 5e/6 24 AWG (Max 33' / 10.1 m)
Interface Box to Network Switch	RJ45 CAT5e/CAT6 24 AWG (330' / 100.6 m)
Network Switch to Dante DSP Mixer	RJ45 Cat 5e/6 24 AWG (330' / 100.6 m)
Junction Box to Mic Capsule	Proprietary Mic Array Cable (7' / 2.1 m)
LED Mic Capsule	Mute (Red/Blue = GPIO Controlled)
LED Dante Interface	Power and Status (On = Red/Blue, Off = Not Illuminated), Dante RJ45s (Green = Connected, Yellow = Connectivity Status), Digital-In RJ45 (Green = Connected, Red = Error)
LED Digital Junction	Power (On = Blue, Off = Not Illuminated), Digital-In/Out RJ45 (Green = Connected, Red = Error)
Compliance	FCC, IC, CE, RoHs, WEEE, UL2043 (Plenum Rated)
Dimensions Mic Capsule	1.7 x 1.7 x 86.6" / 43.2 x 43.2 x 2,199.6 mm
Dimensions Digital Dante Interface	6.8 x 6.7 x 1.7' / 2.1 x 2x 0.5 mm
Dimensions Digital Junction	4 x 3.7 x 1.4" / 101.6 x 94 x 35.6 mm
Weight Mic Capsule	6 oz / 170.1 g
Weight Digital Dante Interface	21.6 oz / 612.3 g
Weight Digital Junction	7.2 oz / 204.1 g

Product Details

Acoustic Characteristics
Element	Condenser (Electret)
Polar Pattern	3 x 120° Cardioid Patterns, Covering 360°
Signal/Noise Ratio	74 dBA at 1 kHz
Frequency Response	70 Hz to 20 kHz
Sensitivity	-37 dB at 1 kHz (0 dB = 1 V / Pa)
Max Sound Pressure Level	120 dB SPL
RF Immunity	100% Immunity, Fully Balanced Twisted Pair Throughout
Power and Thermal
Power Type	PoE
Port Type	RJ-45
Power Source	PoE power injector, PoE Ethernet Network Switch
PoE In	IEEE 802.3af CLASS III, Mode A or B Modes, A and B Refer to Whether Power Can Be Supplied over Data Pairs in the Cat 5 cable. Mode A Means Power Can Be Supplied by either Spare or Data Pairs, and Mode B Means Power Can Only Be Supplied by Spare Pairs
Mains Voltage	100-240 VAC, 50/60 Hz
Impedance	200 Ohms
Power Consumption	8.5 W Typical with 4 Mic Capsules
Operating Temperature	41 to 104°F / 5 to 40°C
Cables
Junction to Interface/Junction Box	RJ45 Cat 5e/6 24 AWG (Max 33' / 10.1 m)
Interface Box to Network Switch	RJ45 CAT5e/CAT6 24 AWG (330' / 100.6 m)
Network Switch to Dante DSP Mixer	RJ45 Cat 5e/6 24 AWG (330' / 100.6 m)
Junction Box to Mic Capsule	Proprietary Mic Array Cable (7' / 2.1 m)
LED Mic Capsule	Mute (Red/Blue = GPIO Controlled)
LED Dante Interface	Power and Status (On = Red/Blue, Off = Not Illuminated), Dante RJ45s (Green = Connected, Yellow = Connectivity Status), Digital-In RJ45 (Green = Connected, Red = Error)
LED Digital Junction	Power (On = Blue, Off = Not Illuminated), Digital-In/Out RJ45 (Green = Connected, Red = Error)
Compliance	FCC, IC, CE, RoHs, WEEE, UL2043 (Plenum Rated)
Dimensions Mic Capsule	1.7 x 1.7 x 86.6" / 43.2 x 43.2 x 2,199.6 mm
Dimensions Digital Dante Interface	6.8 x 6.7 x 1.7' / 2.1 x 2x 0.5 mm
Dimensions Digital Junction	4 x 3.7 x 1.4" / 101.6 x 94 x 35.6 mm
Weight Mic Capsule	6 oz / 170.1 g
Weight Digital Dante Interface	21.6 oz / 612.3 g
Weight Digital Junction	7.2 oz / 204.1 g

Note

Note: Please read description carefully. Do not base your order on the picture presented.
