BZBGEAR BG-UDAIC-E18 1X8 4K60 UHD 18Gbps HDMI Splitter

BZBGEAR, BG-UDAIC-E18, 1X8 4K60 UHD 18Gbps HDMI Splitter/Distribution Amplifier up to 230ft Over Category Cable

Features:

• Zero latency transmission
• Split and extend 1 HDMI input signal to 8 HDMI outputs
• The transmitter supports HDMI loop out
• Supports EDID passthrough or manually set the EDID of the product
• Supports RS-232 command control
• Surge Protection, Lightning Protection, ESD Protection

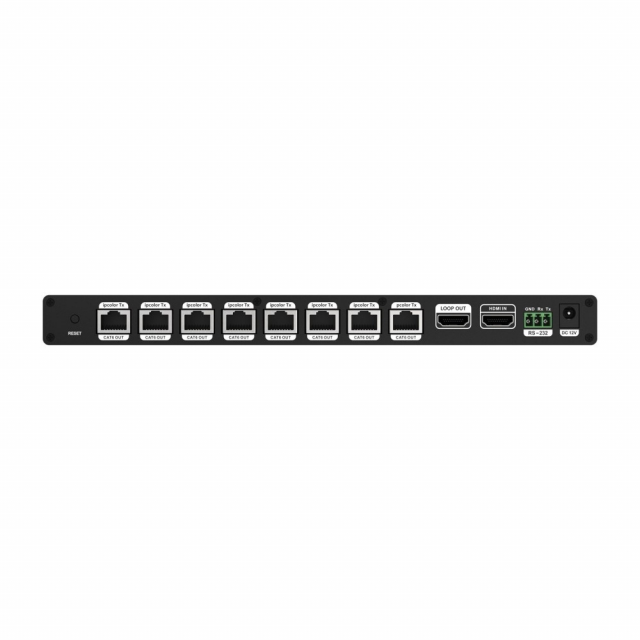

The BG-UDAIC-E18 is an HDMI extender and splitter kit that distributes one HDMI input to up to eight extender outputs. The signal can be extended at ranges of up to 70 meters (230 feet) with category cabling.

Connectivity & Quality

This HDMI extender and splitter kit supports resolutions up to 4K at60Hz. with the BG-UDAIC-E18, transmission of video signals is done with zero latency. The transmitter in this kit supports HDMI loop out for operators to utilize when necessary. Each receiver can output the digital audio of the TV (ARC) or from the source device via the S/PDIF port.

Control

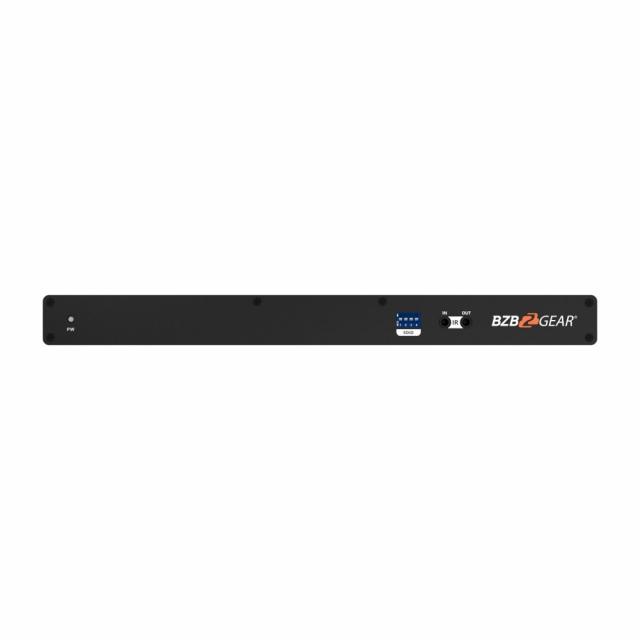

With bi-directional IR passthrough via IR blaster and IR receivers, operators have a greater degree of control over connected displays from one location regardless of distance and obstacles. EDID passthrough can be used with the BG-UDAIC-E18. The EDID of the kit can also be manually set via EDID DIP switches when extra adjustment is needed. RS-232 passthrough is also supported.
