Options and Related Products

Zoom/Color/Mount:: Zoom/Color/Mount: 12X, White, Ceiling

BZBGEAR, BG-KIT2-4K-LiveStreaming12XWCM, ADAMO 4K Live Streaming KIT with 2x ADAMO-4K 12X White, Joy Stick Controller, 4K Mixer, POE Switcher and Ceiling Mounts

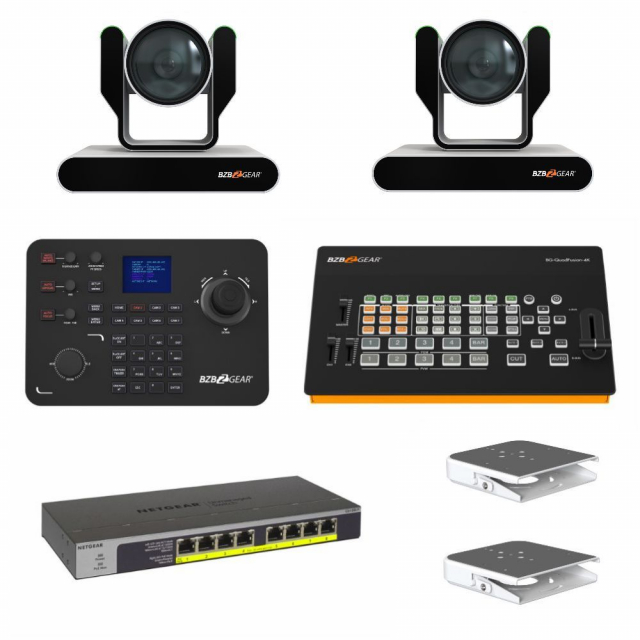

BG-KIT2-4K-LiveStreaming12XWCM Includes Only:

2 x BG-ADAMO-4K Camera 12X
- 2 x IR Remote Control
- 2 x 12V/1.5A Power Supply
- 2 x RS232 Control Cable
- 2 x User Manual
1 x BG-Commander
- 1 x Power Supply
- 1 x User Manual
1 x Switch
- Power adapter
- Power cord (varies by region)
- Wall installation kit
- Rubber feet
- Rack-mount kit
- Installation guide

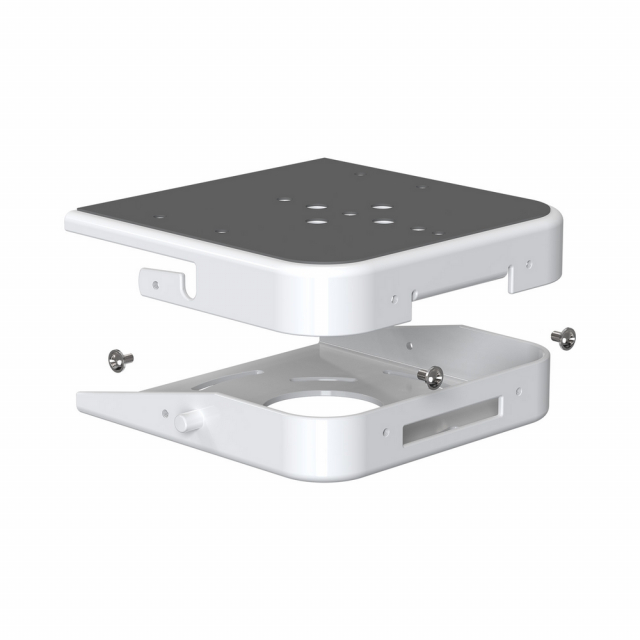

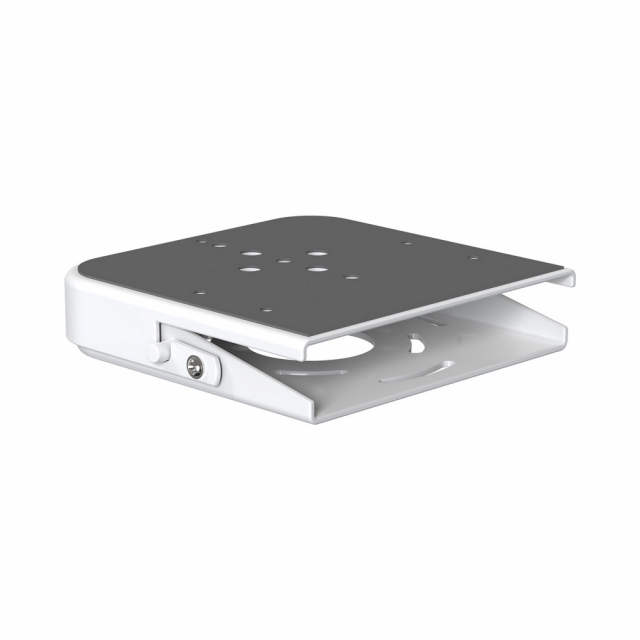

2 x Ceiling Mount

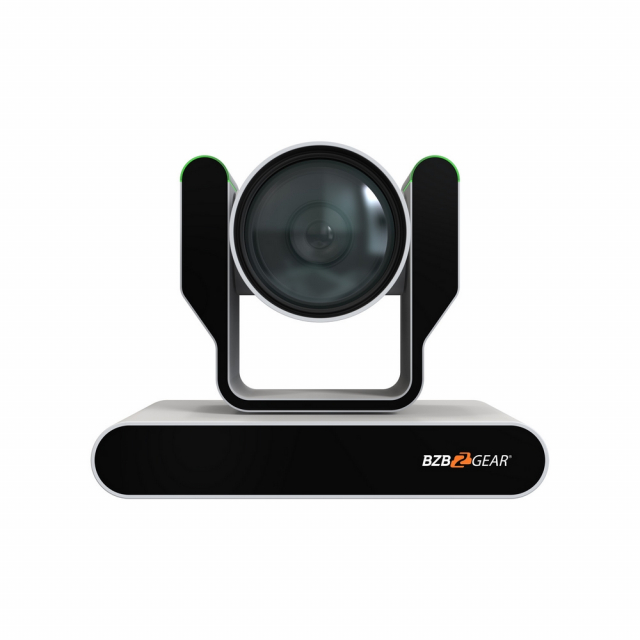

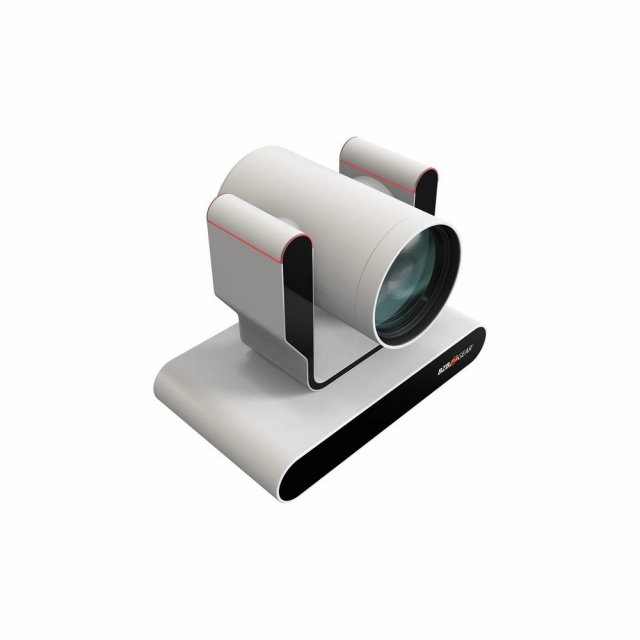

Features of PTZ Camera:

High Resolution
- Output up to 4K at 60Hz over HDMI or 12G-SDI and 4K at 30Hz over USB 2.0 cabling
Tally Lights
- Integrated red/green LED tally lights
MicroSD
- Record and store up to 1 TB of 4K video
Zoom
- Available with 12x optical zoom lens
Multiple Video Outputs
- Choose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming
PoE
- Data, power, and control over a single category cable (PoE+ Recommended)
Available in white
Multiple forms of control including RS232, RS422, Web GUI, Control App, or IR Remote
Stream to your choice of platform directly from the camera, no capture card needed
Supports NDI|HX3
Supports Dante AV-H

BZBGEAR is proud to announce the next generation of PTZ cameras: the BG-ADAMO. Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO is unrivaled in its class on the live stream broadcasting market. For enhanced audio and video over IP, the BG-ADAMO-4K supports NDI|HX3 with the BG-ADAMO-4KND model and Dante AV-H with the BG-ADAMO-4KDA model.

This camera also supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

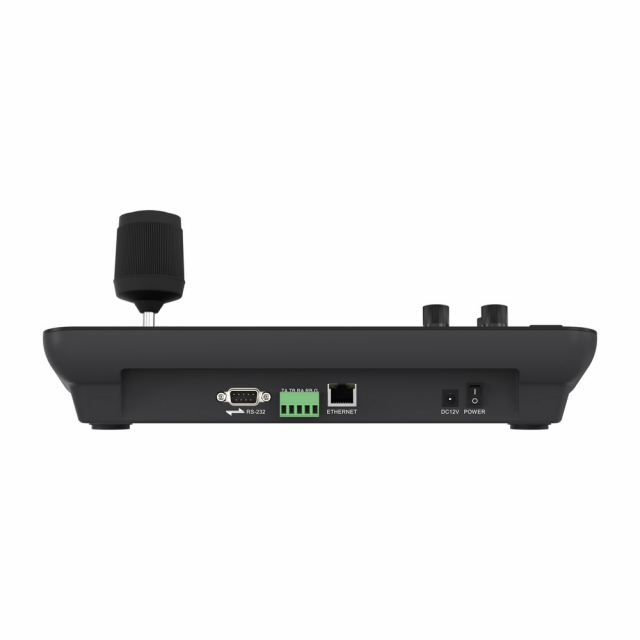

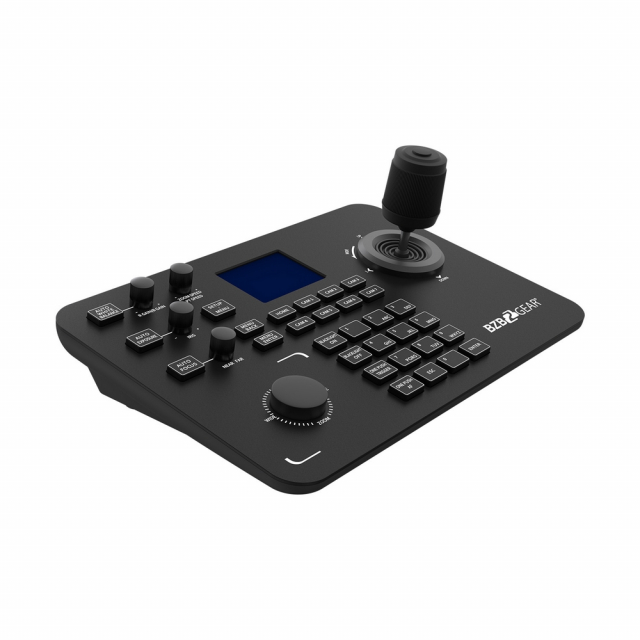

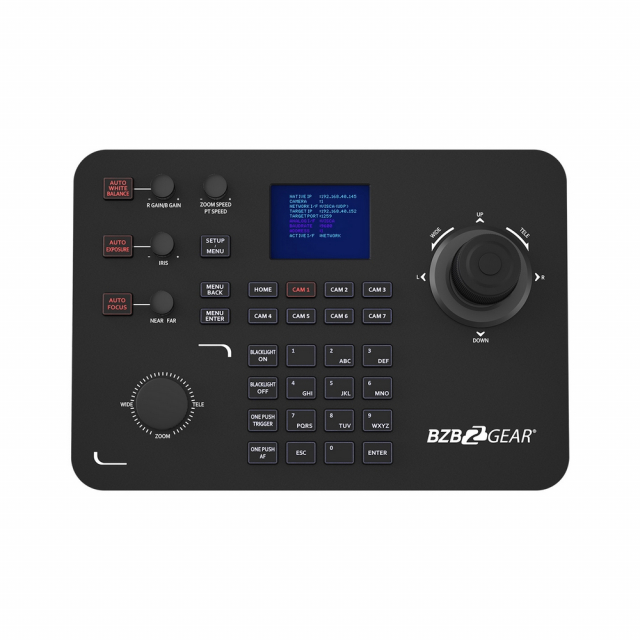

Features of IP PTZ Joystick Controller:

IP-Control
- Easily control any compatible IP camera
PoE Enabled
- Single cable installation
Simple to Use
- Logical layout allows anyone to take control with minimal training
Variable Speed
- Adjust PTZ speed to get the perfect shot every time
Four Control Modes
- IP VISCA, ONVIF, RS422, and RS232
Integrated LCD Screen
- Review settings at a glance
Utilize IP and serial protocol connections simultaneously
Set up to 255 preset positions per camera
7 quick select camera buttons
Generation joystick handle for precision control
Control zoom functions utilizing the joystick handle or knob
Enhanced buttons & LCD backlights

Demand perfection. Command with precision.

The BG-Commander PTZ joystick controller delivers precise control for both IP and serial PTZ cameras. With high-quality backlit buttons, the BG-Commander offers a pleasing user experience - even in low-light conditions. The solid metal chassis provides a durable, stable platform and is designed to stand up to years of heavy use, regardless of the setting. This controller is a great choice for live events, houses of worship, and broadcasting scenarios.

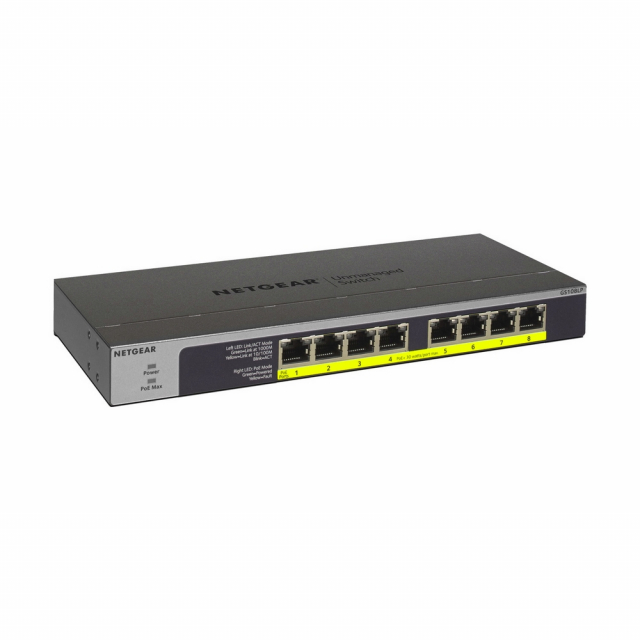

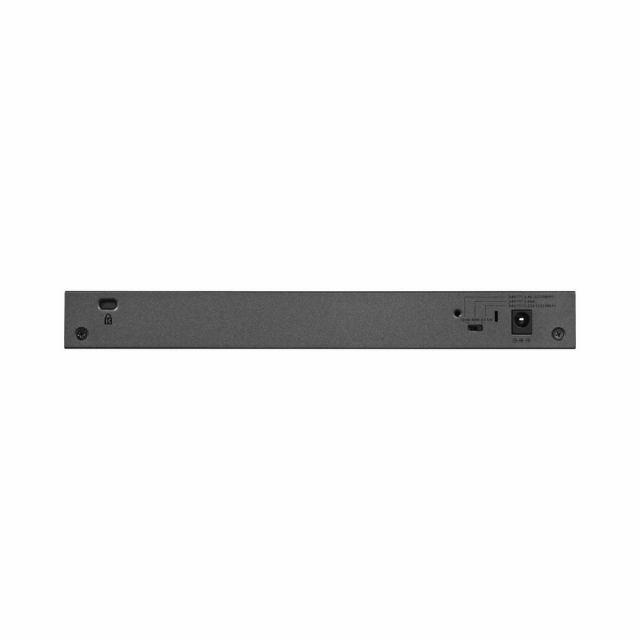

Features of Switch:

8 x Gig Copper Ports
8 x 802.3af/802.3at Ports
Desktop, Wall-mount and 19-inch Rackmountable
Small Form Factor
Interchangeable External Power Supply

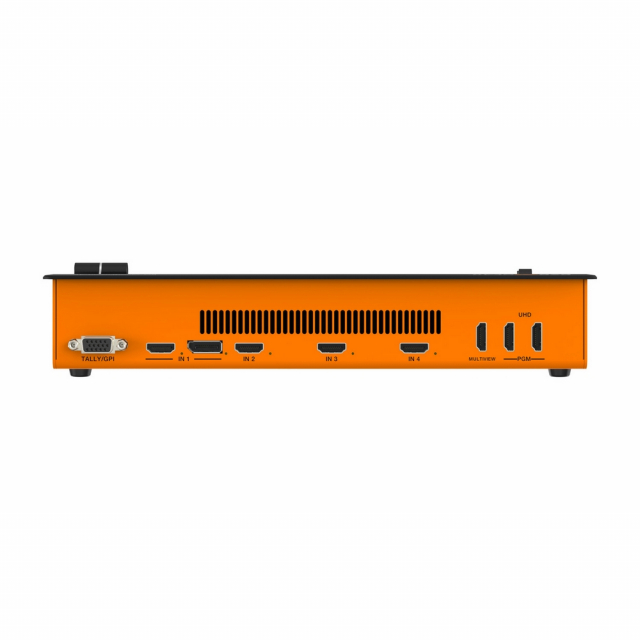

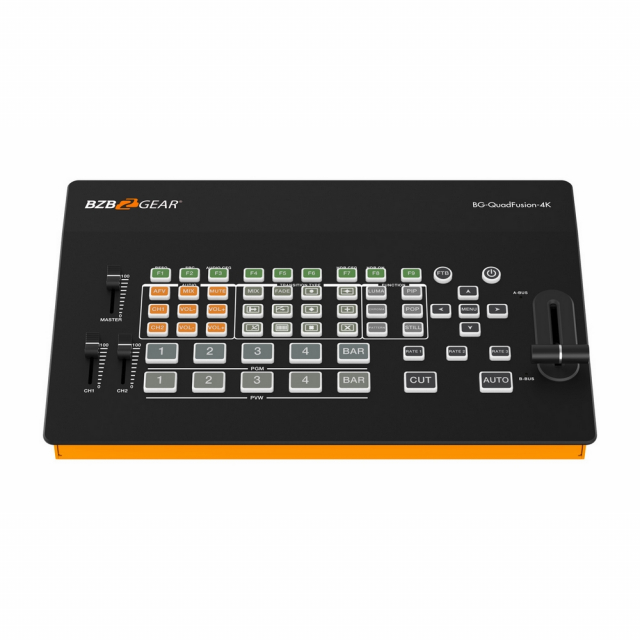

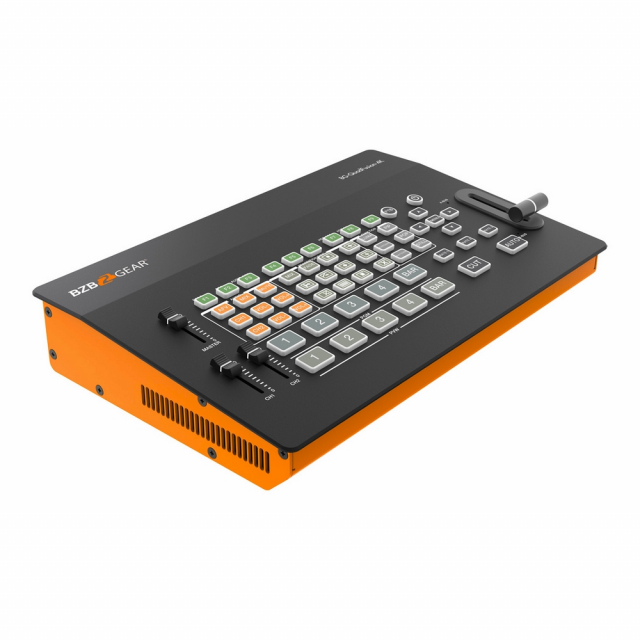

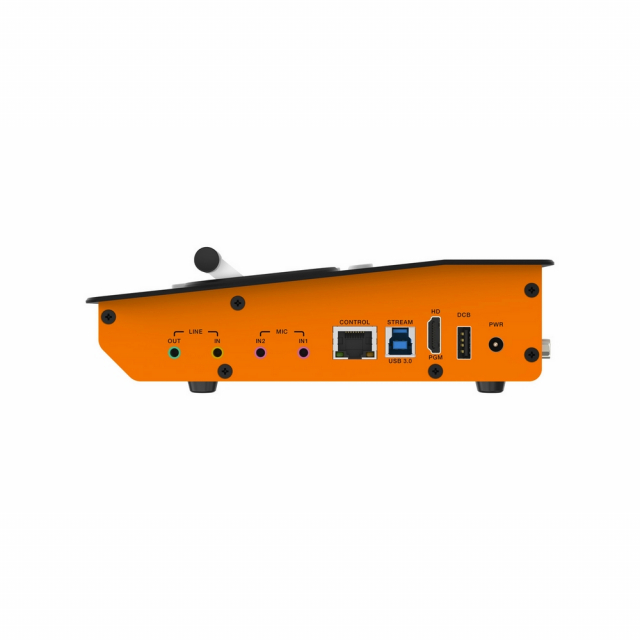

Features of BG-QuadFusion-JR:

HDMI Encoder & DP Decoder
- Effortlessly handle multiple video sources
Special Effects
- Unlock your creative potential with inbuilt effects
Control Options
- Enjoy the convenience of a RJ45 remote, backlit buttons, and knobs for precise adjustments
Immersive Audio
- Harness 2-CH MIC inputs and LINE OUT for enriching soundscapes
1080p Excellence
- Present your content in stunning, clear 1080p resolution
Durability in Motion
- Crafted from high-strength aluminum alloy for lasting, portable use

Introducing the BG-QuadFusion-4K: A Feature Packed 4K UHD 4-CH Video Production Switcher. The BG-QuadFusion-4K is a versatile video production switcher designed for professional broadcast and TV stations. This switcher offers comprehensive control options, including keyboard-based special effects and transitions, and intuitive menu display functions. It supports up to 4-CH HDMI/DP (DisplayPort) inputs 4K60 signals, making it ideal for a wide range of live broadcasting applications, including sports events, concerts, and studio recordings.

See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

BG-ADAMO-4K 12X

Camera Parameters

Optical Zoom

12X

Focal Length Range

f=3.85 mm ~ 43.06 mm ±5%

View Angle

H: 7.59°(tele) ~ 80.4°(wide)
V: 4.6°(tele) ~ 50.0°(wide)

F1.8 ~ F3.56±5%

Sensor

1/2.5 inch SONY CMOS sensor

Effective Pixels

8.51 Megapixels 16:9

Video Format

HDMI:
- 3840*2160p at 60/50/30/25/59.94/29.97Hz/24Hz/23.98hz; 1080p at 60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080i at 60/50,30/59.94Hz; 720p at 60/50/59.94Hz;
12G-SDI:
- 3840*2160p at 60/50/30/25/59.94/29.97Hz/24hz/23.98Hz; 1080p at 60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080i at 60/50/59.94Hz; 720p at 60/50/59.94Hz;
USB2.0:
- MJPG: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p at 30Hz;
- H264: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p at 30Hz;
- YUY2: 800*448 /720*480p at25; 640*360 /432*240p at 30Hz
- NV12: 800*448p at25; 640*480 /640*360 /432*240p at 30Hz
USB3.0:
- YUY2: 1920*1080 /1280*720p at 60/50/30/25Hz; 960*540 /800*600p at 30Hz; 720*576p at 50Hz; 720*480p at 60Hz; 640*480p at 30Hz;

Minimum Illumination

0.5Lux (F1.8, AGC ON)

DNR

3D DNR

White Balance

Auto / Manual / One Push / Specified Color Temperature

Focus

Auto / Manual / One Key Focus

Exposure Mode

Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority

Aperture Parameters

F1.8 ~ F11, CLOSE

Shutter Speed

1/25 ~ 1/10000

BLC

Off/On

Dynamic range

OFF / Dynamic Level Adjustment

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

≥50dB

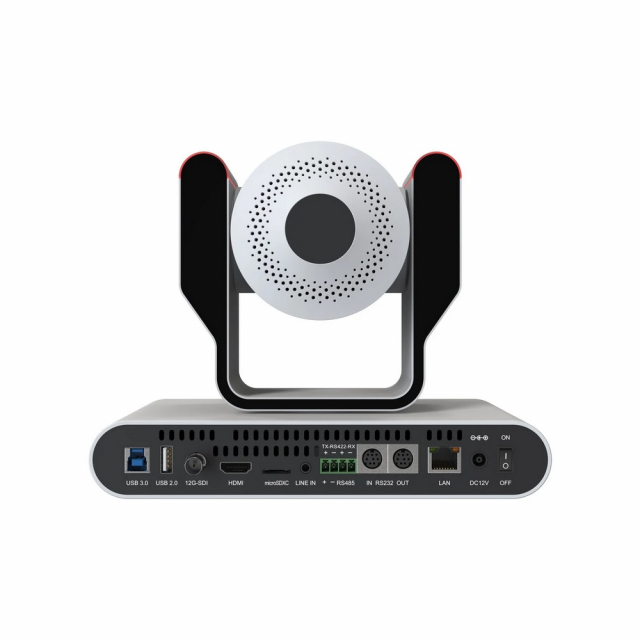

Interface Features

Interfaces

HDMI, 12G-SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD (FAT32), RS232-IN,
RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch, NDI|HX3, Dante AV-H

Video Compression

LAN: H.264, H.265
USB 2.0: MJPG, H264, H265, YUY2, NV12
USB 3.0: YUY2

Audio-in Interface

Double track 3.5mm linear Input

Audio-out Interface

HDMI, SDI, LAN

Audio Compression

AAC, G.711A

Sampling frequency

32000, 44100, 48000

LAN

10M/100M/1000M adaptive Ethernet port, support POE and audio/video output

Network Protocol

RTSP, RTMP, RTMPS, ONVIF, SRT, GB/T28181; VISCA Control Protocols

Control Interface

RS232-IN, RS232-OUT, RS422 compatible with RS485, LAN

Serial Protocol

VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400

USB Communication Protocol

UVC (video)

Power Interface

HEC3800 outlet (DC12V), PoE

Power Adapter

In: AC110V-AC220V; Out: DC12V/2.5A

Input Voltage

DC12V±10%

Input Current

<1.5A

Power Consumption

<12W

PTZ Parameters

Pan Rotation

-170° ~ +170°

Tilt Rotation

-30° ~ +90°

Pan Control Speed

0.1°/s ~ 100°/s

Tilt Control Speed

0.1°/s ~ 70°/s

Preset Speed

Pan: 78.8°/s, Tilt: 31.7°/s

Preset Number

255 presets via Web GUI (10 presets using remote control)

Other Parameters

Stored Temperature

14°F ~ 140°F / -10°C ~ +60°C

Storage Humidity

20% ~ 95%

Working Temperature

14°F ~ 122°F / -10°C ~ +50°C

Working Humidity

20% ~ 80%

Working Environment

Indoor Only

BG-Commander

Chip

His3536DV100

System

Linux

Protocol

VISCA, ONVIF, PELCO-P, PELCO-D,VISCA OVER IP

Output

RS422/485, RS232, RJ45

Beep

On/off

Power consumption

≤5W

Power

DC12V-2A

Work temperature

14°F~131°F / -10°C ~55°C

Work humidity

20%~80% frostless

Storage temperature

14°F~140°F / -10°C ~60°C

Storage humidity

0~90% frostless

Switch

Speed

Gigabit

Auto Balance

Yes

Number of Ports

PoE Budget

60W

PoE Ports / Max power outlet

8 PoE+

Energy Efficient Ethernet support

Yes

Jumbo frame support

10000 bytes

MAC table size

Packet buffer size

192KB

Operating Temperature

32°F - 104°F (0°C - 40°C)

Operating humidity

10% - 90% relative humidity, noncondensing

Compliance

FCC class A, CB, CE class A, VCCI class A, RCM class A, KC, BSMI, EAC

BG-QuadFusion-4K

Video Signal Input

Input signal

HDMI / DP video signal

Code rate

270Mbps ~ 18Gbps

Connector

Standard

Signal amplitude

800mV±10% (HDMI/DP)

Impedance

100Ω (HDMI), 100Ω (DP)

Balance

Adaptive

DVD input

480i/576i, 480p/576p, 720p, 1080i, 1080p, 2160p

HDMI/DP input support

3840x2160, 1920x1080, 1680x1050, 1600x900,
1440x1050, 1366x768, 1360x768, 1280x102,
1280x960, 1280x800, 1280x768, 1280x720,
1280x600, 1152x864, 1024x768, 800x600

Video Signal Output

Output signal

HDMI video output

Code rate

6Gbps ~ 18Gbps

Connector

Standard

Return Loss

>15dB 5MHz~3GHz

Signal amplitude

800mV±10%(HDMI/DP)

Impedance

100Ω (HDMI), 100Ω (DP)

DC offset

0V±0.5V

Clock recovery

Support

General Parameters

Power supply

12V

Power rate

<35W

Control panel

Support on-site production, integration of a variety of buttons

Operating temperature

32°F ~ 122°F / 0°C ~ 50°C, No condensation

Storage temperature

-4°F ~ 167°F / -20°C ~ 75°C

Working humidity

20% ~ 70%RH

Storage humidity

0% ~ 90%RH, No condensation

Notes
