BZBGEAR, BG-FES12G, 12G/6G/3G/HD/SD-SDI Over Single Mode SFP-Type Fiber Optic Extender

BG-FES12G Includes Only:

1x BG-FES12G Extender
2x 5V power adapter
1x User Manual

Features:

SDI Loop-out on Transmitter to view content locally
Immune to RP-198 pathological patters
Automatic Re-clocking - Maintains solid signal lock

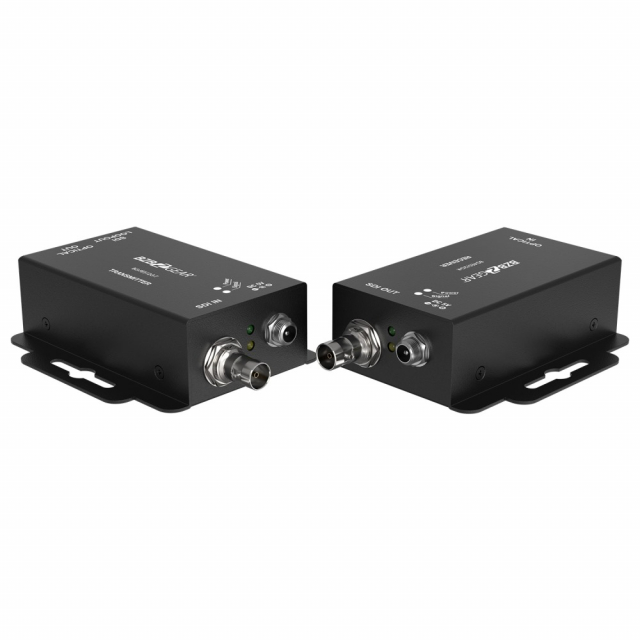

The BG-FES12G is an SDI over single mode SFP-type fiber optic extender. This device can extend multiple SDI formats (12G/6G/3G/HD) with embedded audio up to 10 km (6.25 miles) over a single-mode fiber optic cable with transmission speeds up to 11.88 Gbps.

Both transmitter and receiver units provide equalizing and re-clocking for consistent signal quality. The transmitter is also equipped with a convenient SDI loop-out for a local display. The locking power supply on both units ensures reliable connection.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

SDI standard

SD-SDI/ HD-SDI/ 3G-SDI/ 6G-SDI/12G-SDI

Auto HD/SD-SDI detection

Yes

Supported protocols

SMPTE 259M (270Mbps / 360Mpbs), DVB ASI (270Mbps)
SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps)
SMPTE 424M / HDTV (2.97Gbps and 2.97/1.001Gbps)
SMPTE 2082-1 / HDTV (5.94Gbps and 5.94/1.001Gbps)
SMPTE 2082-2 / HDTV (11.88Gbps and 11.88/1.001Gbps)

Data rates

270 / 1483 / 1485 / 2967 / 2970 / 5940 / 11880Mbps

Video bandwidth

[11.88Gpbs & 11.88/1.001Gbps]

Video support

[HD] 720p at50/59.94/60, 1035i at50/59.94/60, 1080i at50/59.94/60, 1080p at24/30,1080p at60,1080p at59.94, 4K2K at30, 4K2K at60
[SD] NTSC at59.94Hz, PAL at50Hz

SDI signal type

SMPTE 2082-2, SMPTE 2082-1, SMPTE-424M, SMPTE-292M, SMPTE-259M, DVB-ASI

Auto reclocker mode

Automatic detection: 270Mbps / 1.483Gbps / 1.485Gbps / 2.97Gbps / 2.967Gbps / 5.94Gbps / 5.934Gbps / 11880Gbps / 11868Gbps
Automatic bypass: 177Mbps / 360Mbps / 540Mbps

Output impedance

75Ω

Fiber Transmission

10km (6.25mi)

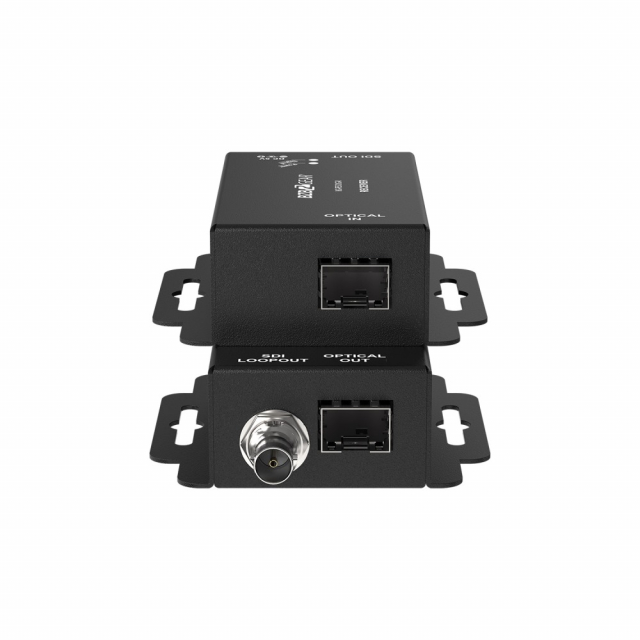

Loop-out

Transmitter: 1 reclocking SDI loop-out
Receiver: N/A

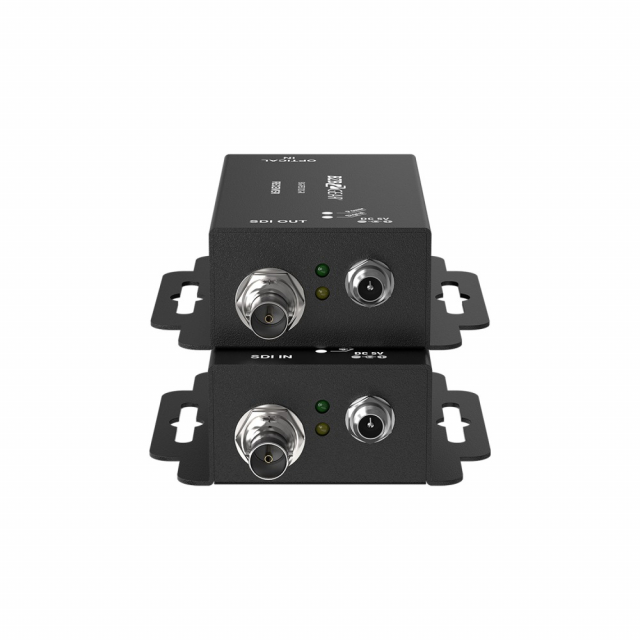

Input

Transmitter: 1x BNC [SDI] 1x Optical SFP [SDI]
Receiver: 1x Optical SFP [SDI]

Output

Transmitter: 1x BNC [SDI] (optional loop-out)
Receiver: 1x BNC [SDI]

BNC connector

75Ω inter-locked socket

Audio support

Yes

PCB Stack-up

4-layer board [impedance control - differential 100Ω ; single 50Ω ]

RP-198 pathological patterns

Immune

Optical fiber connector

SFP-type

Housing

Metal case

Power supply

5V 2A DC Inter-locked power supply

Power consumption

3 Watts [max]

Operation temperature

32~104°F / 0~40°C

Storage temperature

-4~140°F / -20~60°C

Relative humidity

20~90% RH [no condensation]

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

SDI standard

SD-SDI/ HD-SDI/ 3G-SDI/ 6G-SDI/12G-SDI

Auto HD/SD-SDI detection

Yes

Supported protocols

SMPTE 259M (270Mbps / 360Mpbs), DVB ASI (270Mbps)
SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps)
SMPTE 424M / HDTV (2.97Gbps and 2.97/1.001Gbps)
SMPTE 2082-1 / HDTV (5.94Gbps and 5.94/1.001Gbps)
SMPTE 2082-2 / HDTV (11.88Gbps and 11.88/1.001Gbps)

Data rates

270 / 1483 / 1485 / 2967 / 2970 / 5940 / 11880Mbps

Video bandwidth

[11.88Gpbs & 11.88/1.001Gbps]

Video support

[HD] 720p at50/59.94/60, 1035i at50/59.94/60, 1080i at50/59.94/60, 1080p at24/30,1080p at60,1080p at59.94, 4K2K at30, 4K2K at60
[SD] NTSC at59.94Hz, PAL at50Hz

SDI signal type

SMPTE 2082-2, SMPTE 2082-1, SMPTE-424M, SMPTE-292M, SMPTE-259M, DVB-ASI

Auto reclocker mode

Automatic detection: 270Mbps / 1.483Gbps / 1.485Gbps / 2.97Gbps / 2.967Gbps / 5.94Gbps / 5.934Gbps / 11880Gbps / 11868Gbps
Automatic bypass: 177Mbps / 360Mbps / 540Mbps

Output impedance

75Ω

Fiber Transmission

10km (6.25mi)

Loop-out

Transmitter: 1 reclocking SDI loop-out
Receiver: N/A

Input

Transmitter: 1x BNC [SDI] 1x Optical SFP [SDI]
Receiver: 1x Optical SFP [SDI]

Output

Transmitter: 1x BNC [SDI] (optional loop-out)
Receiver: 1x BNC [SDI]

BNC connector

75Ω inter-locked socket

Audio support

Yes

PCB Stack-up

4-layer board [impedance control - differential 100Ω ; single 50Ω ]

RP-198 pathological patterns

Immune

Optical fiber connector

SFP-type

Housing

Metal case

Power supply

5V 2A DC Inter-locked power supply

Power consumption

3 Watts [max]

Operation temperature

32~104°F / 0~40°C

Storage temperature

-4~140°F / -20~60°C

Relative humidity

20~90% RH [no condensation]
