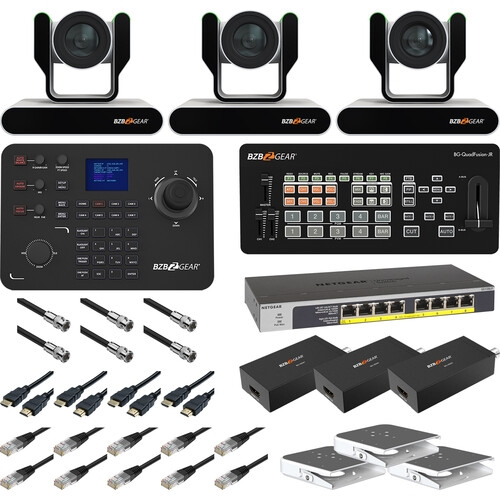

BZBGEAR, BG-ChurchLive-WCM-KIT, Complete Live Streaming Kit for Church Events with 3 ADAMO-JR Cameras (White), Joystick Controller, Video Mixer, Ceiling Mount, Cables and Accessories

BG-ChurchLive-WCM-KIT Includes Only:

2 x BG-ADAMO-JR Camera 30X
1 x BG-ADAMO-JR Camera 20X
- 3 x Power Adapter
- 3 x RS232 Control Cable
- 3 x USB 2.0 Cable
- 3 x USB 3.0 Cable
- 3 x Remote Control
- 1 x Manual
1 x BG-Commander
- 1 x Power Supply
- 1 x User Manual
1 x Switch
- Power adapter
- Power cord (varies by region)
- Wall installation kit
- Rubber feet
- Rack-mount kit
- Installation guide
3 x Ceiling Mount
1 x BG-QuadFusion-JR
- 1 x Power Adapter (12V DC)
- 1 x User Manual
- 1 x USB 3.0 Type-A to Type-B Cable
3 x SDI Cable
3 x BG-3GSH 3G SDI to HDMI Converter
- 3x 5V DC Power Supply Adaptor
- 1x User Manual

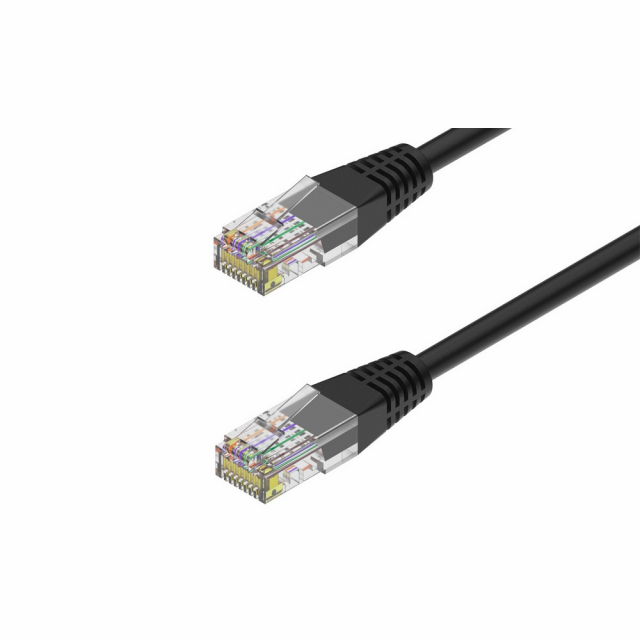

3 x 100ft Cat6 550 MHz Ethernet Cable, Black
2 x 10ft Cat6 550 MHz Ethernet Cable, Black

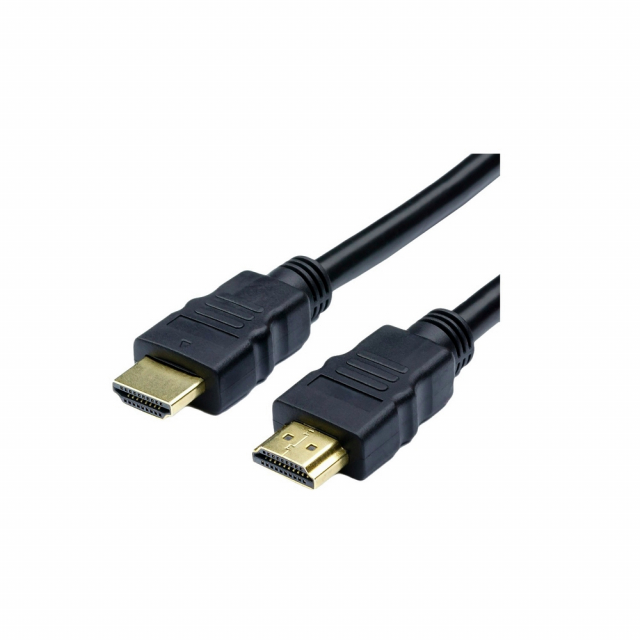

4 x 1080P/4K HDMI Cable 6ft

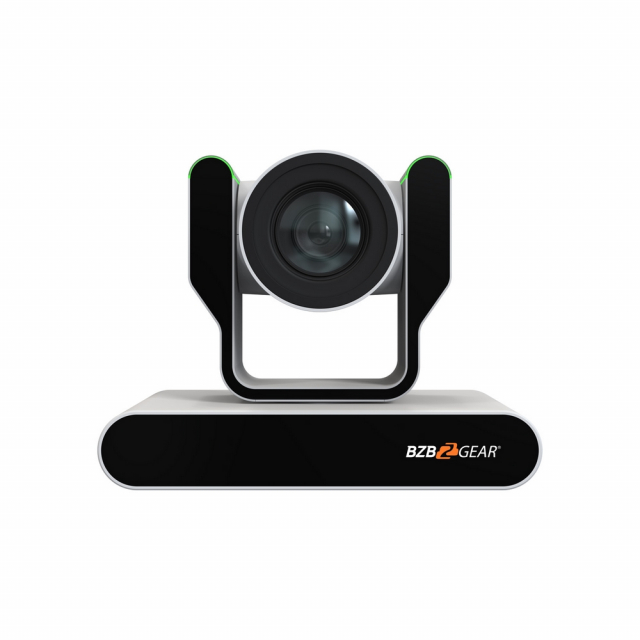

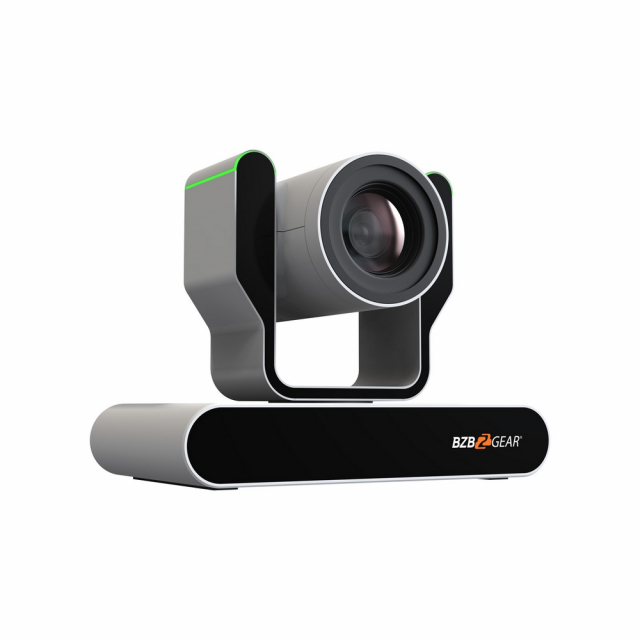

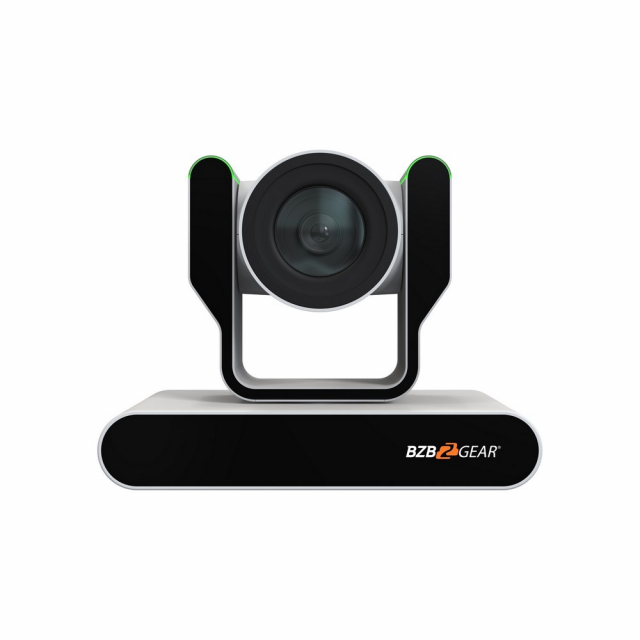

Features of PTZ Camera:

1080p
- Output up to 1080p at 60Hz resolution
Tally Lights
- Integrated red/green LED tally lights
MicroSD
- Record and store up to 1 TB
Zoom
- Available with 12x/20x/30x optical zoom lens
Multiple Video Outputs
- Choose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming
PoE
- Data, power, and control over a single category cable (PoE+ Recommended)
Available in white
Multiple forms of control including RS232, RS422, Web GUI, Control App, or IR Remote
Stream to your choice of platform directly from the camera, no capture card needed
Available with Dante AV-H technology
Available with NDI|HX3 technology

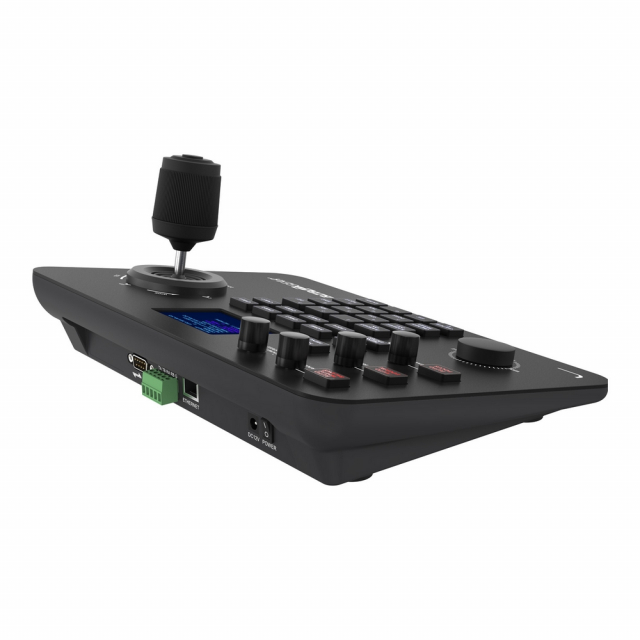

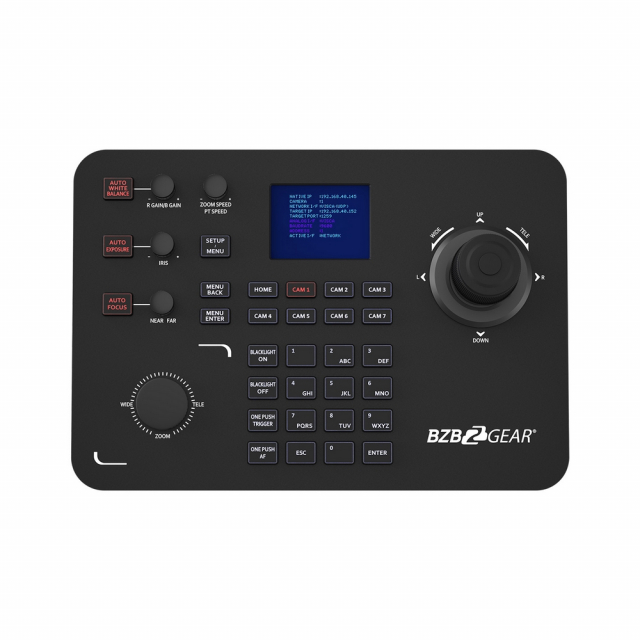

Features of IP PTZ Joystick Controller:

IP-Control
- Easily control any compatible IP camera
PoE Enabled
- Single cable installation
Simple to Use
- Logical layout allows anyone to take control with minimal training
Variable Speed
- Adjust PTZ speed to get the perfect shot every time
Four Control Modes
- IP VISCA, ONVIF, RS422, and RS232
Integrated LCD Screen
- Review settings at a glance
Utilize IP and serial protocol connections simultaneously
Set up to 255 preset positions per camera
7 quick select camera buttons
Generation joystick handle for precision control
Control zoom functions utilizing the joystick handle or knob
Enhanced buttons & LCD backlights

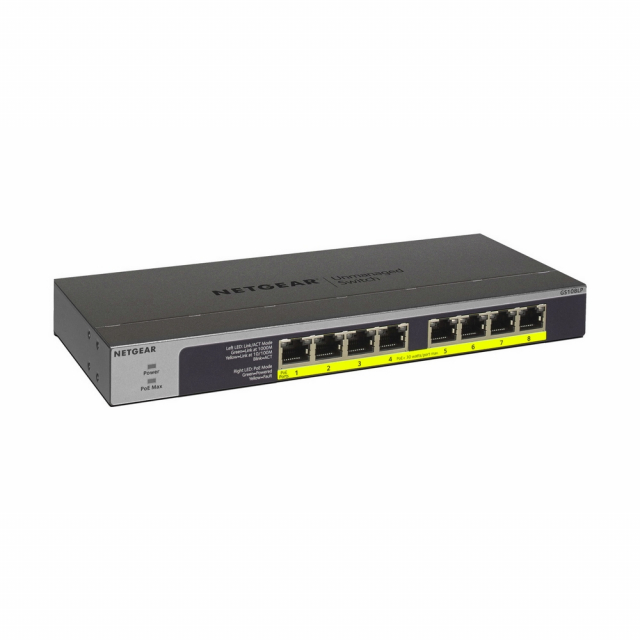

Features of Switch:

8 x Gig Copper Ports
8 x 802.3af/802.3at Ports
Desktop, Wall-mount and 19-inch Rackmountable
Small Form Factor
Interchangeable External Power Supply

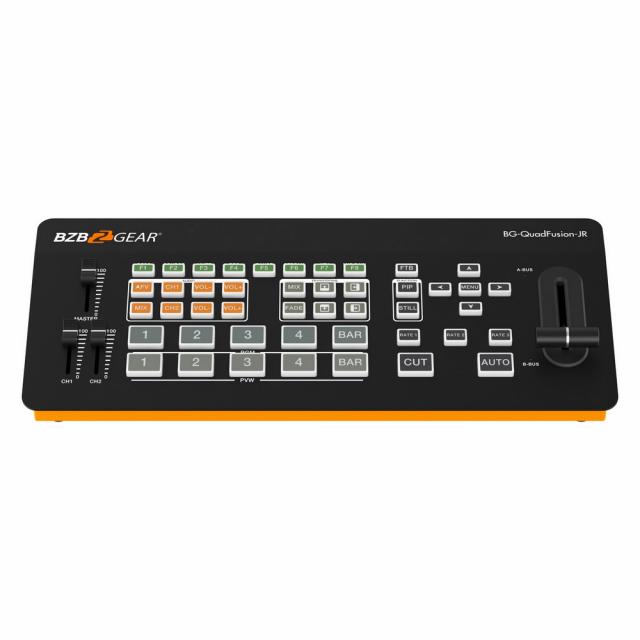

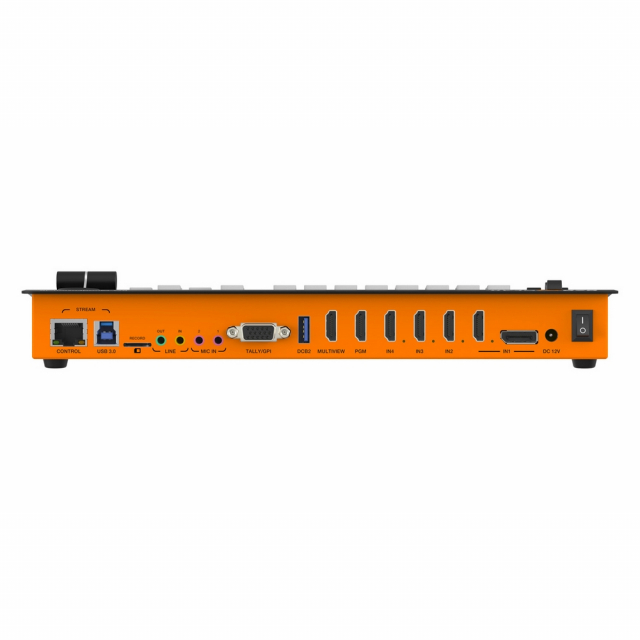

Features of BG-QuadFusion-JR:

HDMI Encoder & DP Decoder
- Effortlessly handle multiple video sources
Special Effects
- Unlock your creative potential with inbuilt effects
Control Options
- Enjoy the convenience of a RJ45 remote, backlit buttons, and knobs for precise adjustments
Immersive Audio
- Harness 2-CH MIC inputs and LINE OUT for enriching soundscapes
1080p Excellence
- Present your content in stunning, clear 1080p resolution
Durability in Motion
- Crafted from high-strength aluminum alloy for lasting, portable use

Features of SDI Cable:

Reliable
- Designed to handle years of abuse
Inexpensive
- SDI cables cost a fraction of HDMI cables
BNC Connectors
- High quality connectors ensure a stable signal
1080P HD
- Transmit signals up to 1080P60
Long Distance
- Transmit signals up to 100m
Tested
- 3Ghz sweep tested to guarantee quality

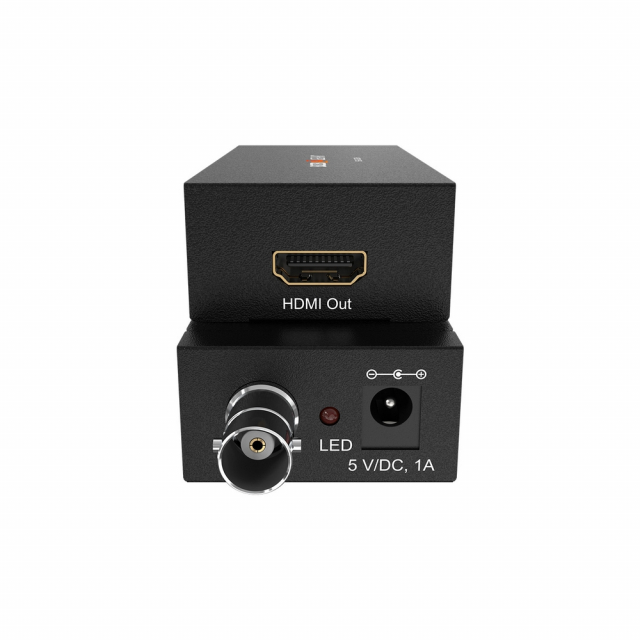

Features of BG-3GSH 3G SDI to HDMI Converter:

1080p/60 Support
- Crystal clear images with resolutions up to 1080p at 60Hz
Portable
- Ideal for any on-the-go kit
Rigid Design
- Durable metal structure built to withstand years of operation
Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances
Easy to Use - Simple for anyone to learn

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

PTZ Camera

Camera/Lens

Optical zoom

Focus Range

f=5.05 mm ~ 91.49 mm ±5%
f=5.2 mm ~ 148.4 mm ±5%

FOV

Horizontal (H): 3.45°(tele) ~ 60.04°(wide)
Vertical (V): 1.97°(tele) ~ 35.31°(wide)
Horizontal (H): 2.14°(tele) ~ 58.1°(wide)
Vertical (V): 1.2°(tele) ~ 33.8°(wide)

Iris Value

F1.8 ~ F2.9±5%
F1.3 ~ F4.8±5%

Image Sensor

1/2.8 inch SONY CMOS sensor

Effective Pixels

2.07 Megapixels 16:9

Video Signal

HDMI:
- 1080P60/59.94/50/30/29.97/25/24/23.98; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
- 1080P60/59.94/50/30/29.97/25/24/23.98; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
- MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
- H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
- YUY2: 800*448 /720*480P25; 640*360 /432*240P30
- NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
- YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30;

Minimum Illumination

0.5Lux (F1.8, AGC ON)

DNR

White Balance

Auto / Manual / One-Push / Specified Color Temperature

Focus Mode

Auto / Manual / One-Push

Exposure Mode

Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority

Iris Value

F1.8 ~ F11, CLOSE

Shutter Speed

1/25 ~ 1/10000

BLC

On/Off

Dynamic Range

Off / Dynamic Level Adjustment

Video Adjustment

Brightness, Hue, Saturation, Contrast, Sharpness, WB Mode

SNR

≥50dB

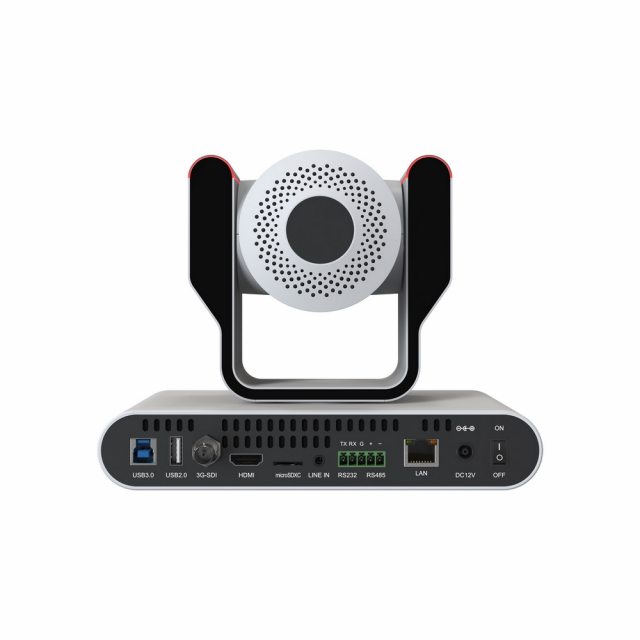

Interface Parameters

Interface

HDMI, SDI, LAN (supports PoE+), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch, Dante AV-H, NDI|HX3

Video Compression Format

LAN: H.264, H.265
USB 2.0: MJPG, H264, H265, YUY2, NV12
USB 3.0: YUY2

Audio Input

Dual channel 3.5mm line input

Audio Output

HDMI, LAN, 3G-SDI, USB 2.0, USB 3.0

Audio Compression Format

AAC

Network Interface

10M/100M/1000M adaptive Ethernet port, PoE Plus power supply, audio and video output

Network Protocols

RTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol

Control Interface

5 pin Phoenix terminal (compatible with RS232 and RS485), LAN

Serial Communication Port

VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400

USB Communication Protocol

UVC (Video Communication Protocols)

Power Supply

HEC3800 Power Outlet (DC12V), PoE+

Power Adapter

Input: AC110V-AC220V; Output: DC12V/1.5A

Input Voltage

DC12V±10%

Input Current

<1.5A

Power Consumption

<12W

PTZ Parameters

Pan

-170° ~ +170°

Tilt

-30° ~ +90°

Pan Speed

1.4°/s ~ 100°/s

Tilt Speed

2.9°/s ~ 30°/s

Preset Speed

Pan (H): 78.8°/s, Tilt (V): 31.7°/s

Preset Quantity

255 presets via Web GUI (10 presets using remote control)

Other Parameters

Stored Temperature

14°F ~ 140°F / -10°C ~ +60°C

Storage Humidity

20% ~ 95%

Working Temperature

14°F ~ 122°F / -10°C ~ +50°C

Working Humidity

20% ~ 80%

Working Environment

Indoor Only

BG-Commander

Parameters / Model

BG-Commander

Chip

His3536DV100

System

Linux

Protocol

VISCA, ONVIF, PELCO-P, PELCO-D,VISCA OVER IP

Output

RS422/485, RS232, RJ45

Beep

On/off

Power consumption

≤5W

Power

DC12V-2A

Work temperature

14°F~131°F / -10°C ~55°C

Work humidity

20%~80% frostless

Storage temperature

14°F~140°F / -10°C ~60°C

Storage humidity

0~90% frostless

Switch

Speed

Gigabit

Auto Balance

Yes

Number of Ports

PoE Budget

60W

PoE Ports / Max power outlet

8 PoE+

Energy Efficient Ethernet support

Yes

Jumbo frame support

10000 bytes

MAC table size

Packet buffer size

192KB

Operating Temperature

32°F - 104°F (0°C - 40°C)

Operating humidity

10% - 90% relative humidity, noncondensing

Compliance

FCC class A, CB, CE class A, VCCI class A, RCM class A, KC, BSMI, EAC

BG-QuadFusion-JR

Video Signal Input

Input signal

HDMI 1.4 / DP 1.2 video signal

Connector

Standard

Reflection loss

>15dB 5MHz~3GHz

Signal amplitude

800mV±10% (HDMI)

Impedance

100Q (HDMI)

Balance

Adaptive

DVD input HDMI support

480i/576i, 480p/576p, 720p, 1080i, 1080p

Computer HDMI input support

1920x1080, 1680x1050, 1600x900, 1440x1050,
1366x768, 1360x768, 1360x768, 1280x1024,
1280x960, 1280x800, 1280x768, 1280x720,
1280x600, 1152x864, 1024x768, 800x600

Video Signal Output

Output signal

HDMI video output

Resolution

1080P60Hz / 1080P50Hz / 1080P30Hz / 1080P25Hz /
1080P24Hz / 1080160Hz / 1080150Hz

Connector

Standard

Return Loss

>15dB 5MHz~3GHz

Signal amplitude

800mV±10% (HDMI)

Impedance

100Q (HDMI)

DC offset

0V±0.5V

Clock recovery

Support

Control Parameters

Control

9600 baud, 8 bits, 1 stop bit, no parity

Connection

15-pin D-port, 2-RX, 3-TX, 5-GND

Network control

RJ45, 100M

General Parameters

Power supply

12V/DC

Power rate

<25W

Control panel

Support on-site production, integration of a variety of buttons

Operating temperature

32°F ~ 122°F / 0°C ~ 50°C, No condensation

Storage temperature

-4°F ~ 167°F / -20°C ~ 75°C

Working humidity

20% ~ 70%RH

Storage humidity

0% ~ 90%RH, No condensation

BG-3GSH 3G SDI to HDMI Converter

Input Port

1 x BNC (SDI/HD-SDI/3G-SDI)

Output Port

1 x HDMI

SDI Transmission Rates

2.970 Gbit/s and 2.970/1.001 Gbit/s

In/Output Resolution

480i, 576i, 720p at 50/59.94,60, 720p at 50/59.94,60, 1080i at 50/59.94/60,
1080p at 23.97/24/25/29.97/30/50/59.94/60

Power Supply

DC 5V - 12V

ESD Protection Human body model

±8kV (air-gap discharge)
±4kV (contact discharge)

Operating Temperature

32°F ~ 104°F / 0°C ~ 40°C

Storage Temperature

-4°F ~ 140°F / -20°C ~ 60°C

Relative Humidity

20 ~ 90% RH (Non-condensing)

Power Consumption (Max)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

PTZ Camera

Camera/Lens

Optical zoom

Focus Range

f=5.05 mm ~ 91.49 mm ±5%
f=5.2 mm ~ 148.4 mm ±5%

FOV

Horizontal (H): 3.45°(tele) ~ 60.04°(wide)
Vertical (V): 1.97°(tele) ~ 35.31°(wide)
Horizontal (H): 2.14°(tele) ~ 58.1°(wide)
Vertical (V): 1.2°(tele) ~ 33.8°(wide)

Iris Value

F1.8 ~ F2.9±5%
F1.3 ~ F4.8±5%

Image Sensor

1/2.8 inch SONY CMOS sensor

Effective Pixels

2.07 Megapixels 16:9

Video Signal

HDMI:
- 1080P60/59.94/50/30/29.97/25/24/23.98; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
- 1080P60/59.94/50/30/29.97/25/24/23.98; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
- MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
- H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
- YUY2: 800*448 /720*480P25; 640*360 /432*240P30
- NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
- YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30;

Minimum Illumination

0.5Lux (F1.8, AGC ON)

DNR

White Balance

Auto / Manual / One-Push / Specified Color Temperature

Focus Mode

Auto / Manual / One-Push

Exposure Mode

Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority

Iris Value

F1.8 ~ F11, CLOSE

Shutter Speed

1/25 ~ 1/10000

BLC

On/Off

Dynamic Range

Off / Dynamic Level Adjustment

Video Adjustment

Brightness, Hue, Saturation, Contrast, Sharpness, WB Mode

SNR

≥50dB

Interface Parameters

Interface

HDMI, SDI, LAN (supports PoE+), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch, Dante AV-H, NDI|HX3

Video Compression Format

LAN: H.264, H.265
USB 2.0: MJPG, H264, H265, YUY2, NV12
USB 3.0: YUY2

Audio Input

Dual channel 3.5mm line input

Audio Output

HDMI, LAN, 3G-SDI, USB 2.0, USB 3.0

Audio Compression Format

AAC

Network Interface

10M/100M/1000M adaptive Ethernet port, PoE Plus power supply, audio and video output

Network Protocols

RTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol

Control Interface

5 pin Phoenix terminal (compatible with RS232 and RS485), LAN

Serial Communication Port

VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400

USB Communication Protocol

UVC (Video Communication Protocols)

Power Supply

HEC3800 Power Outlet (DC12V), PoE+

Power Adapter

Input: AC110V-AC220V; Output: DC12V/1.5A

Input Voltage

DC12V±10%

Input Current

<1.5A

Power Consumption

<12W

PTZ Parameters

Pan

-170° ~ +170°

Tilt

-30° ~ +90°

Pan Speed

1.4°/s ~ 100°/s

Tilt Speed

2.9°/s ~ 30°/s

Preset Speed

Pan (H): 78.8°/s, Tilt (V): 31.7°/s

Preset Quantity

255 presets via Web GUI (10 presets using remote control)

Other Parameters

Stored Temperature

14°F ~ 140°F / -10°C ~ +60°C

Storage Humidity

20% ~ 95%

Working Temperature

14°F ~ 122°F / -10°C ~ +50°C

Working Humidity

20% ~ 80%

Working Environment

Indoor Only

BG-Commander

Parameters / Model

BG-Commander

Chip

His3536DV100

System

Linux

Protocol

VISCA, ONVIF, PELCO-P, PELCO-D,VISCA OVER IP

Output

RS422/485, RS232, RJ45

Beep

On/off

Power consumption

≤5W

Power

DC12V-2A

Work temperature

14°F~131°F / -10°C ~55°C

Work humidity

20%~80% frostless

Storage temperature

14°F~140°F / -10°C ~60°C

Storage humidity

0~90% frostless

Switch

Speed

Gigabit

Auto Balance

Yes

Number of Ports

PoE Budget

60W

PoE Ports / Max power outlet

8 PoE+

Energy Efficient Ethernet support

Yes

Jumbo frame support

10000 bytes

MAC table size

Packet buffer size

192KB

Operating Temperature

32°F - 104°F (0°C - 40°C)

Operating humidity

10% - 90% relative humidity, noncondensing

Compliance

FCC class A, CB, CE class A, VCCI class A, RCM class A, KC, BSMI, EAC

BG-QuadFusion-JR

Video Signal Input

Input signal

HDMI 1.4 / DP 1.2 video signal

Connector

Standard

Reflection loss

>15dB 5MHz~3GHz

Signal amplitude

800mV±10% (HDMI)

Impedance

100Q (HDMI)

Balance

Adaptive

DVD input HDMI support

480i/576i, 480p/576p, 720p, 1080i, 1080p

Computer HDMI input support

1920x1080, 1680x1050, 1600x900, 1440x1050,
1366x768, 1360x768, 1360x768, 1280x1024,
1280x960, 1280x800, 1280x768, 1280x720,
1280x600, 1152x864, 1024x768, 800x600

Video Signal Output

Output signal

HDMI video output

Resolution

1080P60Hz / 1080P50Hz / 1080P30Hz / 1080P25Hz /
1080P24Hz / 1080160Hz / 1080150Hz

Connector

Standard

Return Loss

>15dB 5MHz~3GHz

Signal amplitude

800mV±10% (HDMI)

Impedance

100Q (HDMI)

DC offset

0V±0.5V

Clock recovery

Support

Control Parameters

Control

9600 baud, 8 bits, 1 stop bit, no parity

Connection

15-pin D-port, 2-RX, 3-TX, 5-GND

Network control

RJ45, 100M

General Parameters

Power supply

12V/DC

Power rate

<25W

Control panel

Support on-site production, integration of a variety of buttons

Operating temperature

32°F ~ 122°F / 0°C ~ 50°C, No condensation

Storage temperature

-4°F ~ 167°F / -20°C ~ 75°C

Working humidity

20% ~ 70%RH

Storage humidity

0% ~ 90%RH, No condensation

BG-3GSH 3G SDI to HDMI Converter

Input Port

1 x BNC (SDI/HD-SDI/3G-SDI)

Output Port

1 x HDMI

SDI Transmission Rates

2.970 Gbit/s and 2.970/1.001 Gbit/s

In/Output Resolution

480i, 576i, 720p at 50/59.94,60, 720p at 50/59.94,60, 1080i at 50/59.94/60,
1080p at 23.97/24/25/29.97/30/50/59.94/60

Power Supply

DC 5V - 12V

ESD Protection Human body model

±8kV (air-gap discharge)
±4kV (contact discharge)

Operating Temperature

32°F ~ 104°F / 0°C ~ 40°C

Storage Temperature

-4°F ~ 140°F / -20°C ~ 60°C

Relative Humidity

20 ~ 90% RH (Non-condensing)

Power Consumption (Max)

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews

BZBGEAR BG-ChurchLive-WCM-KIT Complete Live Streaming Kit for Church

Identifiers

Return and Warranty

Technical Details

Reviews
