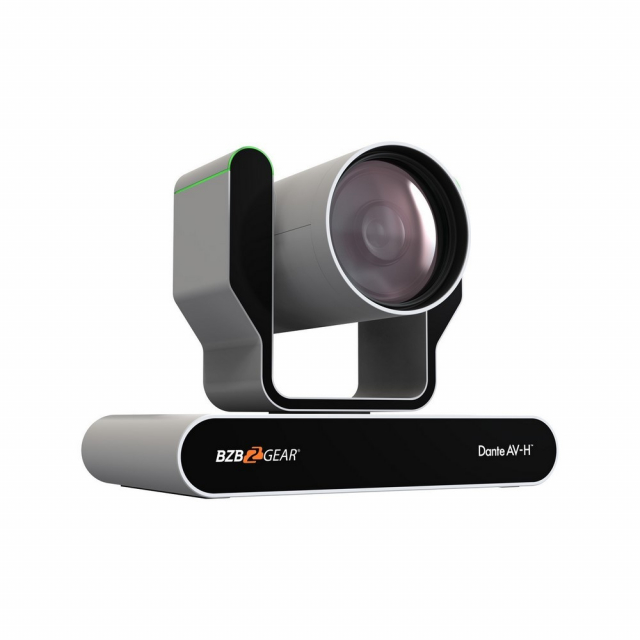

BZBGEAR, BG-ADAMO-4KDA25X-W, 25X Zoom 4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB Dante AV-H Live Streaming PTZ Camera with Tally Lights (White)

Features:

12G SDI
Tally Lights
MicroSD
Zoom
Multiple Video Outputs
PoE

BZBGEAR is proud to announce the next generation of PTZ cameras: the BG-ADAMO-4KDA. Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO is unrivaled in its class on the live stream broadcasting market.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Optical Zoom	12X
Focal Length Range	f=3.85 mm ~ 43.06 mm ±5%
AV	F1.8 ~ F3.56±5%
Sensor	1/2.5 inch SONY CMOS sensor
Effective Pixels	8.51 Megapixels 16:9
Minimum Illumination	0.05Lux (F1.8, AGC ON)
DNR	3D DNR
White Balance	Auto / Manual / One Push / Specified Color Temperature
Focus	Auto / Manual / One Key Focus
Exposure Mode	Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority
Aperture Parameters	F1.8 ~ F11, CLOSE
Shutter Speed	1/25 ~ 1/10000
BLC	Off/On
Dynamic Range	OFF / Dynamic Level Adjustment
Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR	≥50dB
Audio-in Interface	Double track 3.5mm linear Input
Audio-out Interface	HDMI, SDI, LAN
Audio Compression	AAC, G.711A
Sampling Frequency	32000, 44100, 48000
LAN	10M/100M/1000M adaptive Ethernet port, support POE and audio/video output
Network Protocol	RTSP, RTMP, ONVIF, SRT, GB/T28181; VISCA Control Protocols
Control Interface	RS232-IN, RS232-OUT, RS422 compatible with RS485
Serial Protocol	VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400
USB Communication Protocol	UVC (video)
Power Interface	HEC3800 (DC12V)
Power Adapter	In: AC110V-AC220V; Out: DC12V/2.5A
Input Voltage	DC12V±10%
Input Current	<1.5A
Power Consumption	<12W
Pan Rotation	-170° ~ +170°
Tilt Rotation	-30° ~ +90°
Pan Control Speed	0.1°/s ~ 100°/s
Tilt Control Speed	0.1°/s ~ 70°/s
Preset Speed	Pan: 78.8°/s, Tilt: 31.7°/s
Preset Number	255 Presets (10 presets by remote control)
