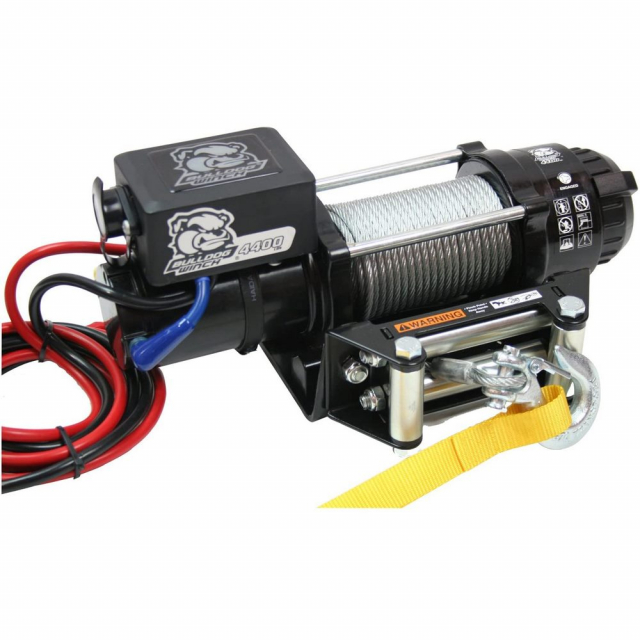

Buy Bulldog Winch 15019, 4400lb Trailer/Utility Winch with 55' Wire Rope

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Rated Line Pull:: Rated Line Pull: 4400lb
Rope Type:: Rope Type: Wire Rope

Features:

This is the winch Professional Race Teams are using!

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Rated Line Pull

4400 Lb

Motor

1.8Hp 12Vdc Permanent Magnet

Switch

250A Sealed Contactor

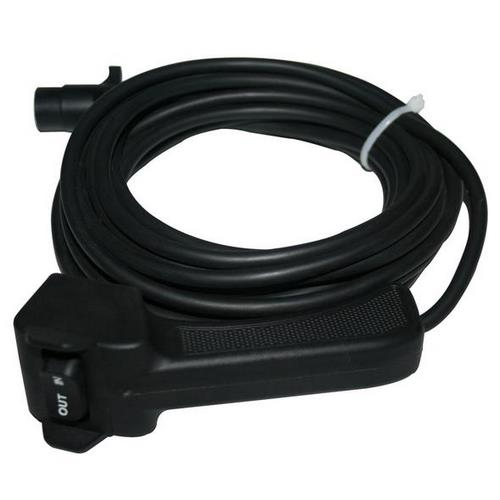

Controller

Wired: handheld with 20ft lead

Battery Leads

Gear Train

3-Stage Planetary

Gear Ratio

136:1

Clutch

Free spooling

Brake

Automatic Load Hold In Drum

Drum DiameterX L

2" x 4.8"

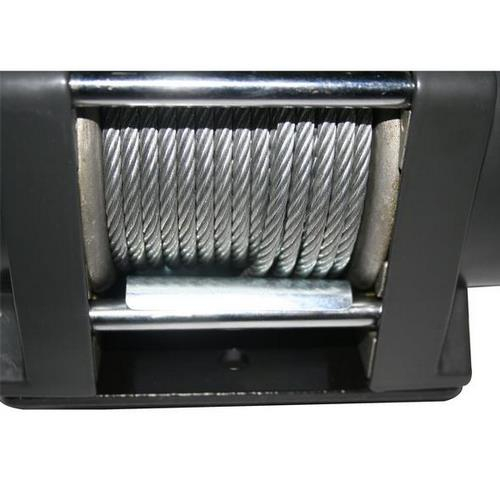

Wire Rope

3/16" x 45ft

Winch Mounting Bolt Pattern

6.6" x 3"

Plate Mounting Bolt Pattern

3.15" x 4.13"

Weight

26.5 Lbs

Pull, Speed, Amps

Line Pull Lbs: 0 / 1000 / 2000 / 3000 / 4400
Line Speed ft/min: 19.1 / 16 / 10.6 / 8.3 / 4.6
Current A: 28 / 95 / 175 / 210 / 340

Line Pull And Rope Capacity in Layer

Layer: 1 / 2 / 3 / 4
Rated Line Pull, lbs: 4400 / 3686 / 3168 / 2784
Total Rope on Drum, ft: 12.6 / 27.7 / 45.3 / 55.7

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Rated Line Pull

4400 Lb

Motor

1.8Hp 12Vdc Permanent Magnet

Switch

250A Sealed Contactor

Controller

Wired: handheld with 20ft lead

Battery Leads

Gear Train

3-Stage Planetary

Gear Ratio

136:1

Clutch

Free spooling

Brake

Automatic Load Hold In Drum

Drum DiameterX L

2" x 4.8"

Wire Rope

3/16" x 45ft

Winch Mounting Bolt Pattern

6.6" x 3"

Plate Mounting Bolt Pattern

3.15" x 4.13"

Weight

26.5 Lbs

Pull, Speed, Amps

Line Pull Lbs: 0 / 1000 / 2000 / 3000 / 4400
Line Speed ft/min: 19.1 / 16 / 10.6 / 8.3 / 4.6
Current A: 28 / 95 / 175 / 210 / 340

Line Pull And Rope Capacity in Layer

Layer: 1 / 2 / 3 / 4
Rated Line Pull, lbs: 4400 / 3686 / 3168 / 2784
Total Rope on Drum, ft: 12.6 / 27.7 / 45.3 / 55.7

Note

Note: Please read description carefully. Do not base your order on the picture presented.
