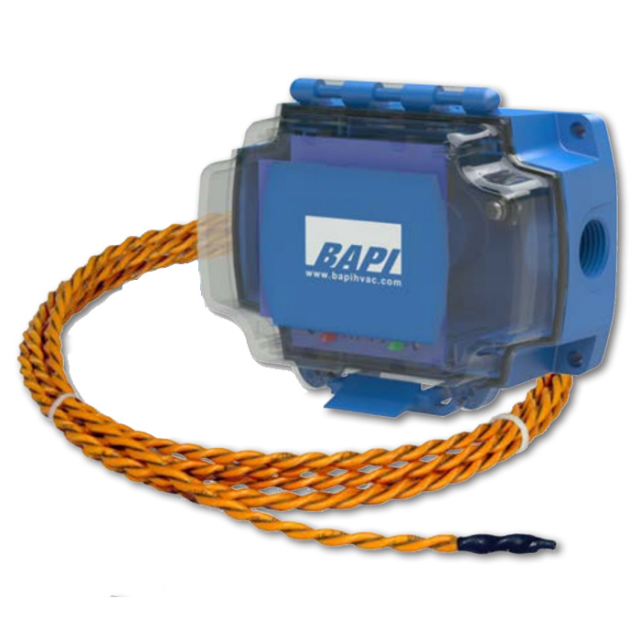

BAPI, BA/LDT4-RR5-BB-GFF, Detector Two 5A Relay, 5 FT Cable, Flex Connector

Features:

Detection Within 5 Seconds with Local LED Alarm Indication
Alarm Output 5 Amp Relays
Rope Detects Water Along Its Entire Length
Automatic or Manual Unit Reset

The Water Leak Detector is designed to sense the presence of water and alert a central monitoring system of the potentially destructive situation.

Upon water detection, the alarm output relays change state, and a local red LED illuminates. The sensor detects dirty and purified water, deionized water, distilled water and reverse osmosis (RO) water

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Leak Detector Transmitter

Water leak detector with two 5A relays, SPDT contacts

Probe Sensor

Remote Rope Sensor with 5 foot plenum-rated sensor cable

Enclosure and Fitting Options

BAPI-Box enclosure, IP66 rated, with flex connector

Power

24VAC ±10% (If VDC power is required, call your BAPI rep.), 5 Amp Relays: 4 Watt / 4 VA max

Rectification

Half Wave

Wiring

Screw Terminals: 2 to 4 pair of 12 to 22AWG (BAPI recommends 16 to 22AWG)
Water Detection Sensor: 2 wires (provided)

Latching and Supervised Relay Options

Latching: Relay stays in alarm until manually reset or power is cycled
Non-Latching : Relay automatically resets after water is removed (default)
Unsupervised: Relay energizes on water detection
Supervised: Relay de-energizes on water detection (default) Note: Relay de-energizes on loss of power

Reset Action

If latching, local pushbutton or power interrupt

Local Indication

One green power LED, one red alarm LED

Alarm Relay Contacts

LDT4: Two SPDT, 5 Amp relay outputs

Operating Environment

Rope Sensor: 32 to 167°F (0 to 75°C), 0 to 95%RH, non-condensing
Detector in BAPI-Box: -4 to 158°F (-20 to 70°C), 0 to 95%RH, non-condensing

Product Details

Leak Detector Transmitter

Water leak detector with two 5A relays, SPDT contacts

Probe Sensor

Remote Rope Sensor with 5 foot plenum-rated sensor cable

Enclosure and Fitting Options

BAPI-Box enclosure, IP66 rated, with flex connector

Power

24VAC ±10% (If VDC power is required, call your BAPI rep.), 5 Amp Relays: 4 Watt / 4 VA max

Rectification

Half Wave

Wiring

Screw Terminals: 2 to 4 pair of 12 to 22AWG (BAPI recommends 16 to 22AWG)
Water Detection Sensor: 2 wires (provided)

Latching and Supervised Relay Options

Latching: Relay stays in alarm until manually reset or power is cycled
Non-Latching : Relay automatically resets after water is removed (default)
Unsupervised: Relay energizes on water detection
Supervised: Relay de-energizes on water detection (default) Note: Relay de-energizes on loss of power

Reset Action

If latching, local pushbutton or power interrupt

Local Indication

One green power LED, one red alarm LED

Alarm Relay Contacts

LDT4: Two SPDT, 5 Amp relay outputs

Operating Environment

Rope Sensor: 32 to 167°F (0 to 75°C), 0 to 95%RH, non-condensing
Detector in BAPI-Box: -4 to 158°F (-20 to 70°C), 0 to 95%RH, non-condensing
