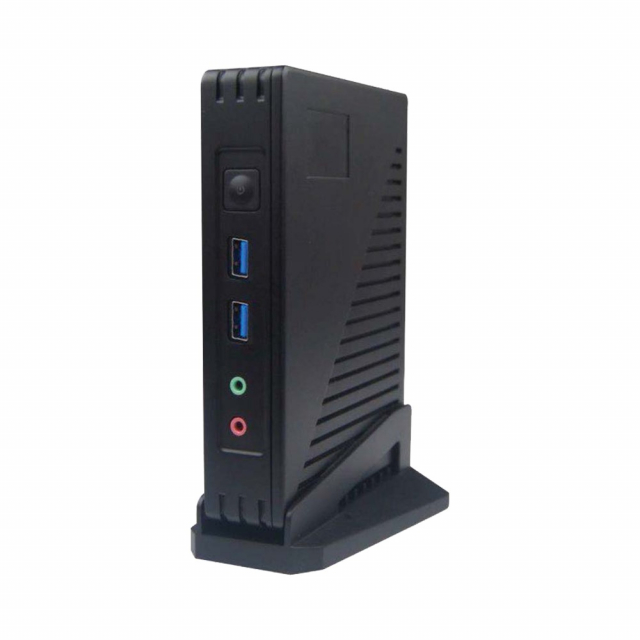

Buy AVYCON AVS-M100-CVMSST, All-In-One CVMS Server

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Supports Avycon protocol, ONVIF protocol, standard RTSP, SDK
Supports adding devices by manually entering the IP address, domain name, or IP range, by auto search, or by the auto report
Setting the Network of the devices before quick adding them
Supports centralized Management of decoding devices, encoding devices and plat Form services
Supports multi-screen display mode:
- 1/4/6/8/9/10/16/117/21/25/33/36/49/64/84/100 standard screen display mode
- 2/4/6/7/9/12/16/24/36/48 widescreen display mode
Supports adding fisheye and panoramic Cameras
Supports multi-monitor display & instant Playback
Supports two-way talk & remote listening
Supports the basic configuration and user Management of the devices
PTZ remote control, including preset, track and cruise calling and settings
Supports zoom in/out and focus+/- & PTZ protocol configuration
Supports different users and permission-based on resources and operation
Permission can be assigned to each channel (or Camera) of the device
Supports multi-channel simultaneous and asynchronous Playback
Supports multiple record sources & multi-window Playback
Supports Playback by channel, time slice, time, tag and event search
Supports record Backup: manual Backup, scheduled Backup, Backup by channel, time, tag and event search; supports cutting records and Backup in the Playback Interface
Supports multiple Alarm types: Motion Alarm, sensor Alarm, smart event linkage Alarm, line crossing counting linkage Alarm, face match linkage Alarm, etc.
Supports Facial Detection on supported Cameras

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

System
CPU	Intel Pentium 4405U
Memory	DDR4, 8GB
Graphics Card	Integrated Graphics, Intel HD Graphics 510
Operation System	Linux
SOFTWARE
Software Version	NVMS Standard (Custom)
Decoding Capability	4CH 8MP, 6CH 5MP, 8CH 4MP, 14CH 1080P, 33CH 720P, or 36CH D1 (or Lower)
Max. Number of Channel Access	256CH
Max. Number of Device Access	64 NVRs/FR Servers
AI Capability	Support Integrated Management of Face Detection IPCs, Face Match Servers, Face Recognition Terminals, Face Match NVRs, ANPR Cameras, Face Detection, ImageSearch by Face, Track Playback, Allow/Block list Alarm as well as Stranger Alarm, Face Attendance, Face Greeting, People Counting, Parking Lot Management
Access	Support Local GUI access; External Mouse, Keyboard and Monitor; Multi-Monitor display
Protocol	Private Protocol, SDK, ONVIF, RTSP
Live View	Support Multi-Screen Display Mode; Support Customized Screen Display Mode, Corridor Mode, Channel Group Auto-Switch, Stream Self-Adaption, Manual Recordand Snapshot
Record Playback	Support Search Record by Period, Time slice, Time and Tag; Support Synchronous or Asynchronous Playback; Support Record Backup
Alarm Linkage	Support Triggering Message Popup, Audio, Live View Window, Recording with Tag, Decoding on TV Wall
PTZ Control	Zoom In, Zoom Out, Preset, Cruise, 3D Control
HDD
System HDD	mSATA SSD 128GB
Data HDD	Not Applicable
Video and Audio
HDMI Output	1CH HDMI at 4K
VGA Output	1 VGA at 1080P
Audio Output	1CH Line Out
Two-way Audio	1CH Mic In
External Interface
Ethernet	1 RJ45 10M/100M/1000M Self-Adaptive Ethernet Port
USB	6 USB Ports: USB 3.0x2 (Front Panel), USB 2.0x2 (Rear Panel), USB 3.0 x2 (Rear Panel)
Wi-Fi	1x M.2 2230 (Optional)
Others
Power	DC 12V/3A
Power Consumption	≤36W
Working Temperature	23°F~+113°F (-5°C~+45°C)
Storing Temperature	-4°F~+158°F (-20°C~+70°C)
Working Humidity	10%~95%

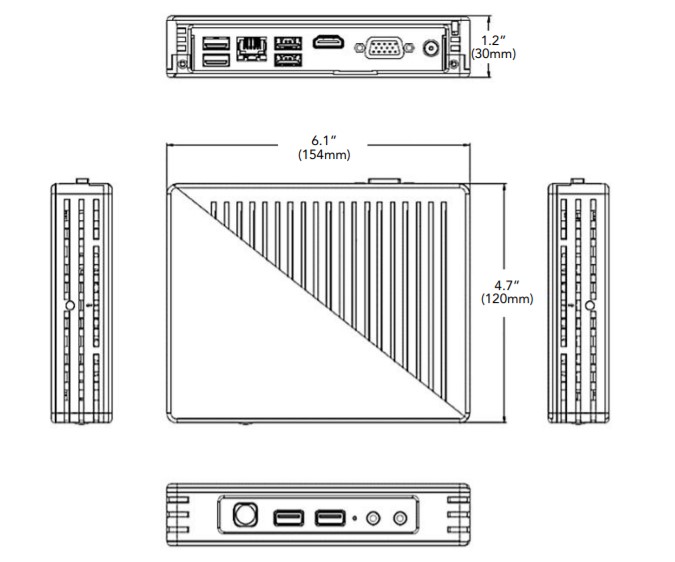

Dimensions	6.1"x4.7"x1.2" (154 mm (W) x120 mm (H) x30 mm (D))
Weight	≤1.04lbs (≤0.47kg)

Product Details

System
CPU	Intel Pentium 4405U
Memory	DDR4, 8GB
Graphics Card	Integrated Graphics, Intel HD Graphics 510
Operation System	Linux
SOFTWARE
Software Version	NVMS Standard (Custom)
Decoding Capability	4CH 8MP, 6CH 5MP, 8CH 4MP, 14CH 1080P, 33CH 720P, or 36CH D1 (or Lower)
Max. Number of Channel Access	256CH
Max. Number of Device Access	64 NVRs/FR Servers
AI Capability	Support Integrated Management of Face Detection IPCs, Face Match Servers, Face Recognition Terminals, Face Match NVRs, ANPR Cameras, Face Detection, ImageSearch by Face, Track Playback, Allow/Block list Alarm as well as Stranger Alarm, Face Attendance, Face Greeting, People Counting, Parking Lot Management
Access	Support Local GUI access; External Mouse, Keyboard and Monitor; Multi-Monitor display
Protocol	Private Protocol, SDK, ONVIF, RTSP
Live View	Support Multi-Screen Display Mode; Support Customized Screen Display Mode, Corridor Mode, Channel Group Auto-Switch, Stream Self-Adaption, Manual Recordand Snapshot
Record Playback	Support Search Record by Period, Time slice, Time and Tag; Support Synchronous or Asynchronous Playback; Support Record Backup
Alarm Linkage	Support Triggering Message Popup, Audio, Live View Window, Recording with Tag, Decoding on TV Wall
PTZ Control	Zoom In, Zoom Out, Preset, Cruise, 3D Control
HDD
System HDD	mSATA SSD 128GB
Data HDD	Not Applicable
Video and Audio
HDMI Output	1CH HDMI at 4K
VGA Output	1 VGA at 1080P
Audio Output	1CH Line Out
Two-way Audio	1CH Mic In
External Interface
Ethernet	1 RJ45 10M/100M/1000M Self-Adaptive Ethernet Port
USB	6 USB Ports: USB 3.0x2 (Front Panel), USB 2.0x2 (Rear Panel), USB 3.0 x2 (Rear Panel)
Wi-Fi	1x M.2 2230 (Optional)
Others
Power	DC 12V/3A
Power Consumption	≤36W
Working Temperature	23°F~+113°F (-5°C~+45°C)
Storing Temperature	-4°F~+158°F (-20°C~+70°C)
Working Humidity	10%~95%
Dimensions	6.1"x4.7"x1.2" (154 mm (W) x120 mm (H) x30 mm (D))
Weight	≤1.04lbs (≤0.47kg)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
