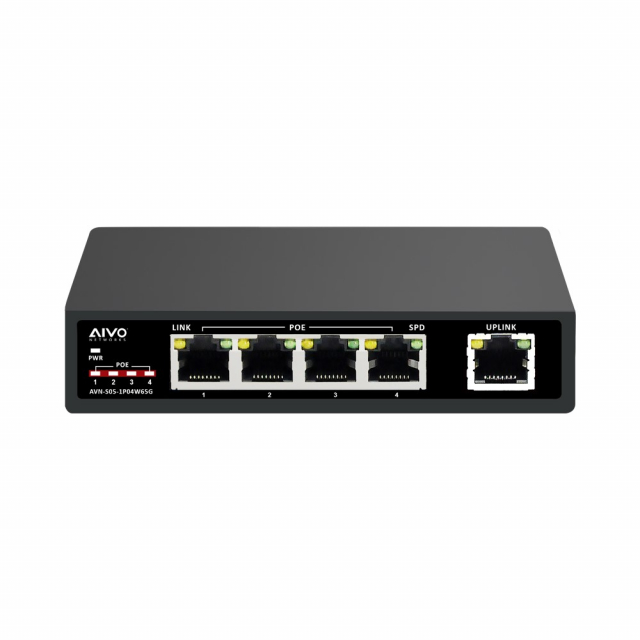

Buy AVYCON AVN-S05-1P04W65G, 4+1 Network Unmanaged Switch

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Network Unmanaged

AVN-S05-1P04W65G Includes Only:

AVN-S05-1P04W65G PoE Switch
User Manual
Power Adapter
Power Cable

Features:

The AVN-S05-1P04W65G is a compact size 5 port gigabit PoE switch.
It provides 5-10/100/1000Mbps Auto-Negotiation RJ45 ports.
All 5 ports support Auto MDI/MDIX Functions which include 4 ports with PoE function.
The PoE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP Cameras, etc.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

Fixed Port

5 10/100/1000BASE-TX Ports

PoE Ports

4 PoE Ports (Port 2-5)

LED Indicators

PWR, PoE, Link / Act LED

Input Voltage

100V~240V AC, 50/60Hz (for Power Adapter)
48VDC (for Switch)

Network Media

10BASE-TX: UTP category5, 5e cable (≤250m)
100BASE-TX: UTP category5, 5e cable (≤150m)
1000BASE-TX: UTP category5, 5e cable (≤150m)

Forwarding Rate

10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-TX: 148800pps/port

Total Wattage

65W

Operating Temperature

0°C~40°C (32°F ~ 104°F)

Storage Temperature

-10°C~70°C (14°F ~ 158°F)

Relative Humidity

20%~85% (Non-Condensing)

Thermal Method

Fanless

Switching Capacity

10G

MAC Address Table

Traffic Control

IEEE 802.3x Full-Duplex flow control

Anti-Loop

Anti-Loop Function, Cut Off the Loop Port Auto

VLAN

Solid VLAN

Dimensions

130 mm x 85 mm x 28.5 mm (W x D x H)

Weight

<1 KG

PoE Port

4 10/100/1000BASE-TX Ports

PoE Standard

IEEE802.3af, IEEE802.3at, per port 15.4W, MAX 30W

PIN Assignment

V+ (RJ45 PIN1, 2), V- (RJ45 PIN 3, 6)

Extend Function

Power Lightning Protection, Solid VLAN

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Fixed Port

5 10/100/1000BASE-TX Ports

PoE Ports

4 PoE Ports (Port 2-5)

LED Indicators

PWR, PoE, Link / Act LED

Input Voltage

100V~240V AC, 50/60Hz (for Power Adapter)
48VDC (for Switch)

Network Media

10BASE-TX: UTP category5, 5e cable (≤250m)
100BASE-TX: UTP category5, 5e cable (≤150m)
1000BASE-TX: UTP category5, 5e cable (≤150m)

Forwarding Rate

10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-TX: 148800pps/port

Total Wattage

65W

Operating Temperature

0°C~40°C (32°F ~ 104°F)

Storage Temperature

-10°C~70°C (14°F ~ 158°F)

Relative Humidity

20%~85% (Non-Condensing)

Thermal Method

Fanless

Switching Capacity

10G

MAC Address Table

Traffic Control

IEEE 802.3x Full-Duplex flow control

Anti-Loop

Anti-Loop Function, Cut Off the Loop Port Auto

VLAN

Solid VLAN

Dimensions

130 mm x 85 mm x 28.5 mm (W x D x H)

Weight

<1 KG

PoE Port

4 10/100/1000BASE-TX Ports

PoE Standard

IEEE802.3af, IEEE802.3at, per port 15.4W, MAX 30W

PIN Assignment

V+ (RJ45 PIN1, 2), V- (RJ45 PIN 3, 6)

Extend Function

Power Lightning Protection, Solid VLAN
