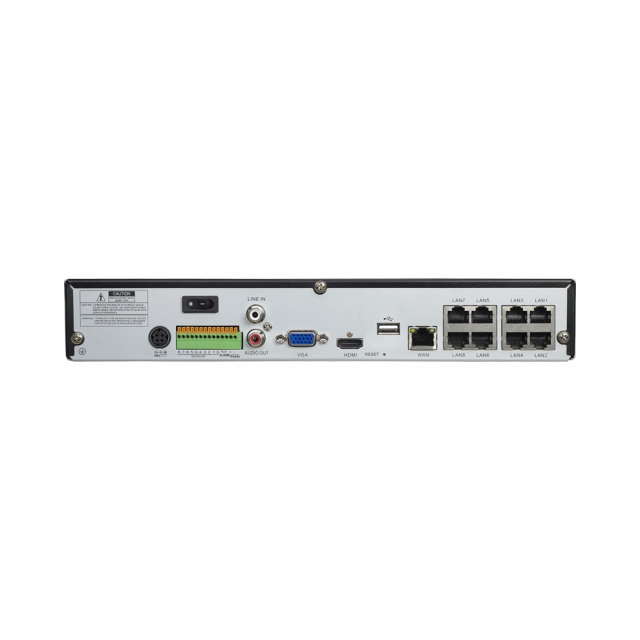

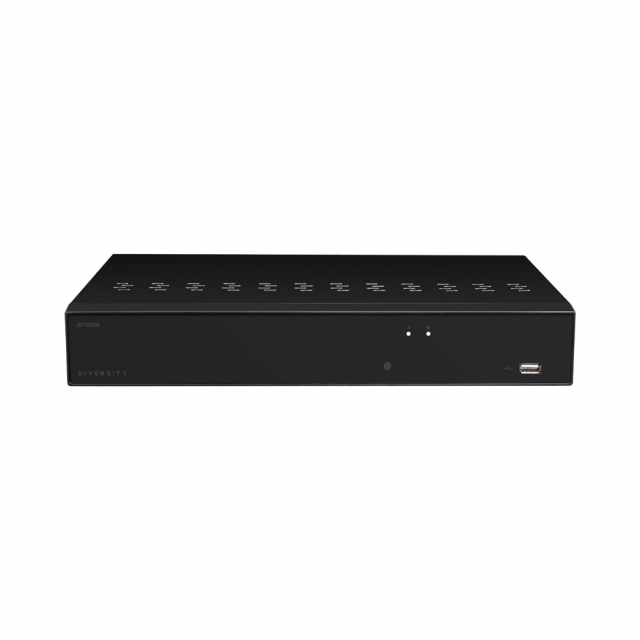

| AVR-NSV08P8 |
| Video |
| IP Video Input | 8 Channels |
| Output HDMI | EDID / 3840x2160 (4K) / 2560x1440 (2K) / 1920x1080 / 1440x900 / 1280x1024 / 1280x720 / 1024x768 |
| Output VGA | 1920x1080 / 1440x900 / 1280x1024 / 1280x720 / 1024x768 |
| Incoming Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 128 Mbps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711a |
| Installation Wizard | Yes |
| Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P: 30fps |
| Playback |
| Playback Frame Rate | 8MP: 45fps, 4MP: 90fps, 2MP: 180fps |
| Smart AI | Yes |
| Event Triggers | MD (Sensitivity Level 1~8), Video Loss, Beep, Email, Push Notification to Mobile App |
| Playback Function | Fast forward/backward (2x, 4x, 8x, 16x), Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
| Playback Max Channels | 8 CH playback |
| Interface |
| Local UI | UI5.0 |
| Web Monitoring | IE10/11, Safari V12.1+, Firefox V.52+, Chrome V.57+, Edge V.79+ |
| Mobile Viewer | AVY Mobile One |
| Push Notification | TUTK/RS |
| Password Reset | Factory Reset (Press 10 seconds) |
| HDD Interface | SATA x1, Max 16TB HDD |
| System |
| PoE | 8 x RJ45, 802.3at/af |
| Ethernet | 1 x RJ45 10/100/1000 Base-T |
| USB | USB 2.0 x1 (Front), USB 3.0 x1 (Rear) |
| Audio | 1 IN / 1 OUT |
| E-SATA | No |
| RS485 | 1 |
| Alarm Input/Output | 8 IN / 1 OUT |
| General |
| OSD Language | English and more |
| Power Consumption | 5W (Without HDD) |
| Power Supply | DC48V / 2A |
| Working Environment | 32°~104°F (0°~40°C) |
| Working Humidity | Less than 90% RH (Non-Condensing) |
| Dimensions (WxDxH) | 11.81" × 8.22" × 1.77" (300 x 209 x 45 mm) |

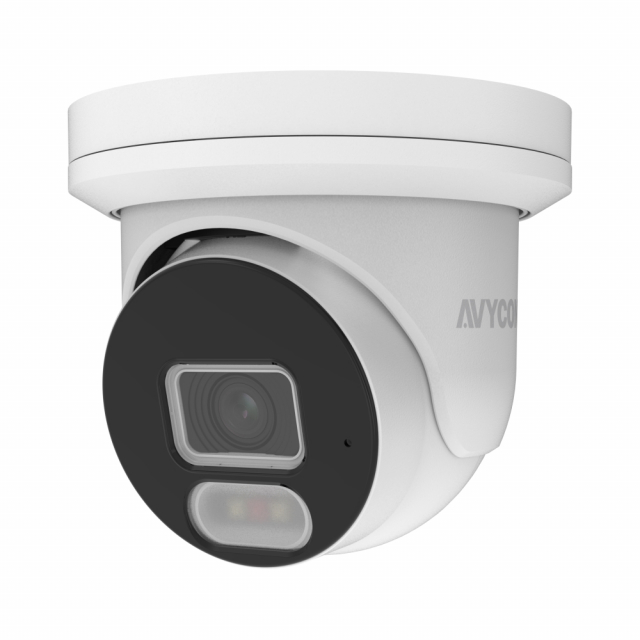

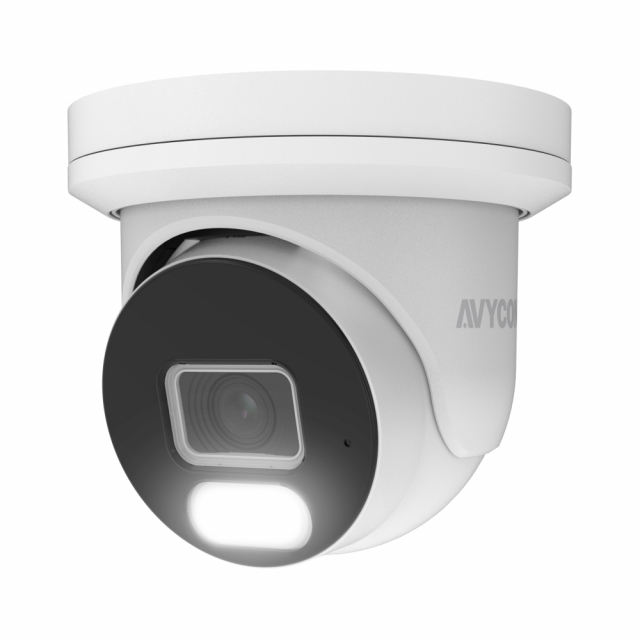

| AVC-NBE81F28 |
| Video |
| Imaging Device | 1/2.7" |
| Effective Pixels | 8MP (3840x2160) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.009lux @ F1.6 (AGC ON); B/W 0 lux @ IR ON |
| Focal Length | 2.8mm Fixed |
| Max. Aperture Ratio | F No.1.6 |
| Angular Field of View | Horizontal:110°, Vertical:58°, Diagonal:133° |
| Min. Object Distance | 6.56ft (2m) |
| Lens Type | Fixed (M12) |
| Operational |
| IR LED | 1 |
| White Light | 2 |
| IR Viewable Length | Up to 82ft (25m) |
| White Light Viewable Length | Up to 65ft (20m) |
| Complementary Light | Default white light, switchable infrared light |
| Motion Detection | Smart Motion Detection (Pedestrian & Vehicle Detection) |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Day & Night | Full Color (default) / Day&Night / Smart Illumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| Edge Storage | Micro SD/SDHC/SDXC Slot (512GB) |
| Alarm I/O | N/A |
| Audio I/O | Built-in MIC |
| Hardware Reset | Yes |
| Smart Features | Intrusion Detection (ID), Tripwire Counting (TC), Loitering Detection (LD), Region Entrance/Exiting Detection |
| Network |
| Ethernet | RJ45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 |
| Resolution | Main Stream@15fps: 8MP (3840x2160), Sub Stream@15fps: 1080P (1920x1080) |
| Video Quality Adjustment | 512Kbps ~ 6Mbps |
| Bitrate Control Method | CBR/VBR |
| IP | IPv4 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS |
| API | ONVIF, REST API |
| Web Viewer | IE10/11 |
| Environmental & Electrical |
| Operating Conditions | -31~140°F (-35~+60°C / less than 90% RH) |
| Ingress Protection | IP67 |
| Input Voltage / Current | D12V / PoE (IEEE802.3af) |
| Power Consumption | DC12V: max 5.6W; PoE(48V): max 7.2W |
| Mechanical |
| Material | Metal |
| Dimensions (HxWxD) | 3.96 x 3.46in (100.5 x 87.9mm) |
| Weight | 0.92lbs (420.1g) |
