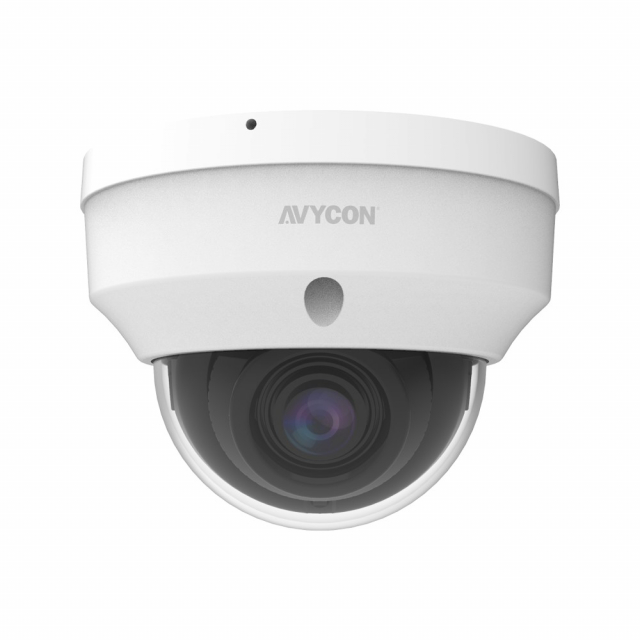

Buy AVYCON AVC-TV21F28, 2MP HD-TVI Fixed Vandal Dome Camera

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Resolution:: Resolution: 2MP

Features:

2MP (1920 x 1080)
Fixed 2.8 mm Lens
HD-TVI / CVI / AHD / CVBS (Analog)
Easy-to-Use DIP Switch to Change Formats
True Day / Night
Smart IR Illumination Up to 59ft.
Digital NR
DWDR
IK10 Vandal Proof Rating
DC 12V (± 10%, 3W Consumption)
NDAA Compliant

This Second Generation HD-TVI Series continues providing the quality expected from the Avycon brand. This 1080P 2MP Camera includes an upgraded Smart IR LED array, the DIP switch design for easily changing Video formats (HD-TVI, CVI, AHD and Analog), and 3-axis lens control. With the generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. Also standard with this series are Digital NR, AGC, DWDR, and BLC capabilities along with an IP67 outdoor rating and an IK10 vandal-proof rating.

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Camera
Image Sensor	1/2.7" Progressive Scan Cmos
Resolution	2MP
Image Size	1920 x 1080
Video Output	1-channel BNC Video Output
Image System	PAL / NTSC
Electronic Shutter	1/15s to 1/50,000s
IR Distance	Up to 59ft (18m)
Video Formats	HD-TVI / AHD / CVI / CVBS (Analog)
Frame Rate	HD-TVI / AHD / CVI / CVBS (Analog): 30 FPS
Min. Illumination	0.01 Lux F1.2 (AGC ON), 0 Lux with IR ON
Lens	Fixed 2.8 mm Lens
Lens Mount	M12
S/N Ratio	40dB
Function Control	OSD, Control over Coax (UTC)
Day and Night	EXT / Auto / Color / BW (Black and White)
Digital WDR	Yes
Digital NR	Yes (3D DNR)
Auto Gain Control (AGC)	Yes
Auto White Balance (AWB)	Yes
Backlight Compensation (BLC)	Yes
Edge Brightness Compensation	Yes
Defog	No
HLC	No
Sharpness	Yes
Mirror Image	Yes
Smart IR (Anti-SAT)	Yes
Image Setting	Yes
Defect Correction	Auto / Manual
General
Angle Adjustment	Any Angle
Input Voltage	DC 12V (±10%)
Power Consumption	Maximum 3W
Ingress Protection	IP67
Vandal Rating	IK10
Working Temperature	-22°~131° F (-30°~55° Celcius)
Dimensions	D4.53" x 3.61" (D115.0 mm x 91.6 mm)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Camera
Image Sensor	1/2.7" Progressive Scan Cmos
Resolution	2MP
Image Size	1920 x 1080
Video Output	1-channel BNC Video Output
Image System	PAL / NTSC
Electronic Shutter	1/15s to 1/50,000s
IR Distance	Up to 59ft (18m)
Video Formats	HD-TVI / AHD / CVI / CVBS (Analog)
Frame Rate	HD-TVI / AHD / CVI / CVBS (Analog): 30 FPS
Min. Illumination	0.01 Lux F1.2 (AGC ON), 0 Lux with IR ON
Lens	Fixed 2.8 mm Lens
Lens Mount	M12
S/N Ratio	40dB
Function Control	OSD, Control over Coax (UTC)
Day and Night	EXT / Auto / Color / BW (Black and White)
Digital WDR	Yes
Digital NR	Yes (3D DNR)
Auto Gain Control (AGC)	Yes
Auto White Balance (AWB)	Yes
Backlight Compensation (BLC)	Yes
Edge Brightness Compensation	Yes
Defog	No
HLC	No
Sharpness	Yes
Mirror Image	Yes
Smart IR (Anti-SAT)	Yes
Image Setting	Yes
Defect Correction	Auto / Manual
General
Angle Adjustment	Any Angle
Input Voltage	DC 12V (±10%)
Power Consumption	Maximum 3W
Ingress Protection	IP67
Vandal Rating	IK10
Working Temperature	-22°~131° F (-30°~55° Celcius)
Dimensions	D4.53" x 3.61" (D115.0 mm x 91.6 mm)

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
