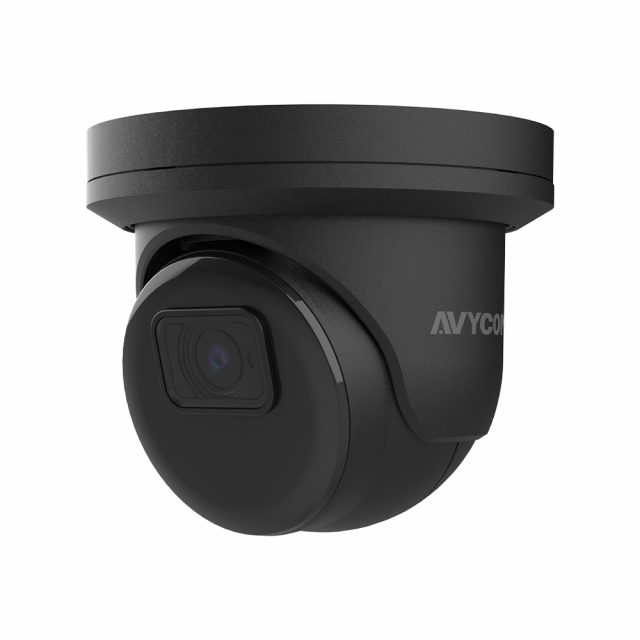

AVYCON AVC-TE21F28-B 2MP HD-TVI Fixed Turret Camera Eyeball Black

  • Brand AVYCON
  • Part # AVC-TE21F28-B
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Avycon, AVC-TE21F28-B, 2MP HD-TVI Fixed Turret Camera (1920x1080), Eyeball Camera, 4-in-1, HD-TVI (Default), CVI, AHD, ANALOG (960H), 2.8mm Lens, 66ft Smart IR's, DWDR, CoC, OSD, BLC, DC12V, IP67, Black

Features:

  • 2MP (1920x1080)
  • HD-TVI / CVI / AHD / CVBS (Analog)
  • True Day & Night ICR
  • Fixed 2.8mm Lens
  • Easy-to-Use DIP Switch to Change Formats
  • 2D DNR, 3D DNR, BLC, FLC
  • Smart IR Illumination Up to 66ft
  • IP67 ingress protection
  • DC12V

IP67

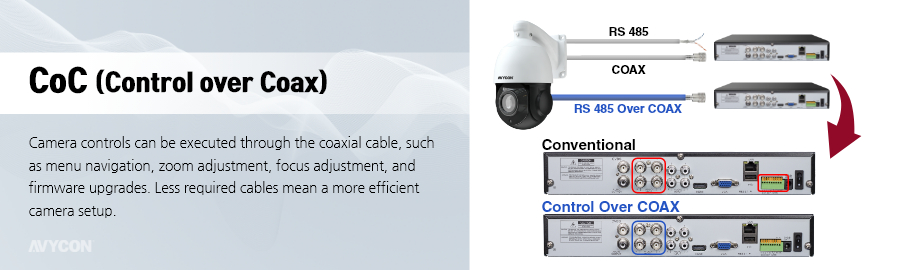

CoC (Control over Coax)

Smart IR

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Optional Accessories
Reviews
Camera
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2MP
Image Size1920x1080
Video Output1-channel BNC Video Output
Image SystemPAL / NTSC
Electronic Shutter1/15s to 1/50,000s
IR DistanceUp to 66ft.
Video FormatsHD-TVI / AHD / CVI / CVBS (Analog)
Frame RateHD-TVI / AHD / CVI / CVBS (Analog): 30 FPS
Min. Illumination0.01 lux at F1.2 (AGC ON), 0 lux with IR ON
LensFixed 2.8mm Lens
Lens MountM12
Horizontal Field of View105.41°
S/N Ratio39dB
Function ControlOSD, Control over Coax (UTC)
Day & NightEXT / Color / BW (Black and White)
WDRNo
Digital NRYes (2D DNR / 3D DNR)
Auto Gain Control ( AGC)Yes
Auto White Balance (AWB)Yes
Backlight Compensation (BLC)Yes
Edge Brightness CompensationYes
DefogNo
HLCNo
SharpnessYes
Mirror ImageYes
Smart IR (Anti-SAT)Yes
Image SettingYes
Defect CorrectionAuto / Manual
General
Angle AdjustmentAny Angle
Input VoltageDC 12V (±10%)
Power ConsumptionMaximum 3W
Ingress ProtectionIP67
Working Environment-22°~131°F (-30°~55°C)
DimensionsØ3.93x2.55in (Ø100x65mm)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Camera
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2MP
Image Size1920x1080
Video Output1-channel BNC Video Output
Image SystemPAL / NTSC
Electronic Shutter1/15s to 1/50,000s
IR DistanceUp to 66ft.
Video FormatsHD-TVI / AHD / CVI / CVBS (Analog)
Frame RateHD-TVI / AHD / CVI / CVBS (Analog): 30 FPS
Min. Illumination0.01 lux at F1.2 (AGC ON), 0 lux with IR ON
LensFixed 2.8mm Lens
Lens MountM12
Horizontal Field of View105.41°
S/N Ratio39dB
Function ControlOSD, Control over Coax (UTC)
Day & NightEXT / Color / BW (Black and White)
WDRNo
Digital NRYes (2D DNR / 3D DNR)
Auto Gain Control ( AGC)Yes
Auto White Balance (AWB)Yes
Backlight Compensation (BLC)Yes
Edge Brightness CompensationYes
DefogNo
HLCNo
SharpnessYes
Mirror ImageYes
Smart IR (Anti-SAT)Yes
Image SettingYes
Defect CorrectionAuto / Manual
General
Angle AdjustmentAny Angle
Input VoltageDC 12V (±10%)
Power ConsumptionMaximum 3W
Ingress ProtectionIP67
Working Environment-22°~131°F (-30°~55°C)
DimensionsØ3.93x2.55in (Ø100x65mm)
